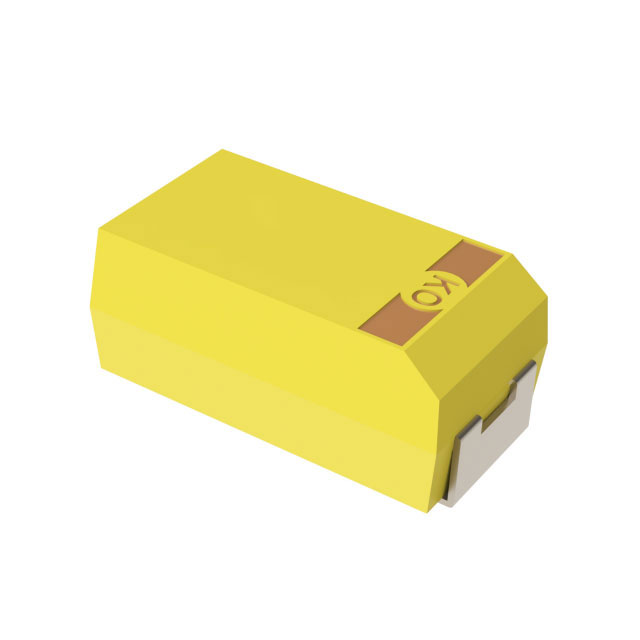

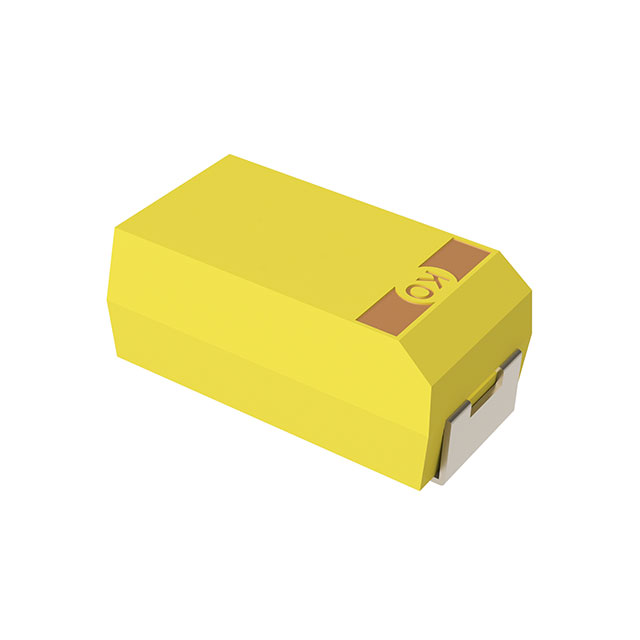

T543X Series

Manufacturer: KEMET

Catalog

CAP TANT POLY 470UF 6.3V 2917

Part	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Features	Ratings	Type	Package / Case	Manufacturer Size Code	Operating Temperature [Min]	Operating Temperature [Max]	ESR (Equivalent Series Resistance)	Tolerance	Mounting Type	Lifetime @ Temp.	Capacitance	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Rated
KEMET T543X477K006ATE005	0.169 in	4.3 mm	High Reliability	COTS	Molded	2917 (7343 Metric)	X	-55 C	105 ░C	5 mOhm	10 %	Surface Mount	2000 Hrs	470 µF	0.169 "	7.3 mm	0.287 "	4.3 mm	6.3 VDC
KEMET T543X336K050AHW040	0.169 in	4.3 mm	High Reliability	COTS	Molded	2917 (7343 Metric)	X	-55 C	125 °C	40 mOhm	10 %	Surface Mount	2000 Hrs	33 ÁF	0.169 "	7.3 mm	0.287 "	4.3 mm	50 VDC
KEMET T543X337M016AHE025	0.169 in	4.3 mm	High Reliability	COTS	Molded	2917 (7343 Metric)	X	-55 C	105 ░C	25 mOhm	20 %	Surface Mount	2000 Hrs	330 µF	0.169 "	7.3 mm	0.287 "	4.3 mm	16 V
KEMET T543X337M016AHW025D100	0.169 in	4.3 mm	High Reliability	COTS	Molded	2917 (7343 Metric)	X	-55 C	105 ░C	25 mOhm	20 %	Surface Mount	2000 Hrs	330 µF	0.169 "	7.3 mm	0.287 "	4.3 mm	16 V
KEMET T543X476M035AHW030	0.169 in	4.3 mm	High Reliability	COTS	Molded	2917 (7343 Metric)	X	-55 C	125 °C	30 mOhm	20 %	Surface Mount	2000 Hrs	47 µF	0.169 "	7.3 mm	0.287 "	4.3 mm	35 V
KEMET T543X107M025AHW060	0.169 in	4.3 mm	High Reliability	COTS	Molded	2917 (7343 Metric)	X	-55 C	125 °C	60 mOhm	20 %	Surface Mount	2000 Hrs	100 µF	0.169 "	7.3 mm	0.287 "	4.3 mm	25 VDC
KEMET T543X336M050AHW040	0.169 in	4.3 mm	High Reliability	COTS	Molded	2917 (7343 Metric)	X	-55 C	125 °C	40 mOhm	20 %	Surface Mount	2000 Hrs	33 ÁF	0.169 "	7.3 mm	0.287 "	4.3 mm	50 VDC
KEMET T543X226M063ATE075	0.169 in	4.3 mm	High Reliability	COTS	Molded	2917 (7343 Metric)	X	-55 C	105 ░C 125 °C	75 mOhm	20 %	Surface Mount	2000 Hrs	22 µF	0.169 "	7.3 mm	0.287 "	4.3 mm	63 V
KEMET T543X226M050ATE040	0.169 in	4.3 mm	High Reliability	COTS	Molded	2917 (7343 Metric)	X	-55 C	125 °C	40 mOhm	20 %	Surface Mount	2000 Hrs	22 µF	0.169 "	7.3 mm	0.287 "	4.3 mm	50 VDC
KEMET T543X226M063AHS0757280	0.169 in	4.3 mm	High Reliability	COTS	Molded	2917 (7343 Metric)	X	-55 C	105 ░C	75 mOhm	20 %	Surface Mount	2000 Hrs	22 µF	0.169 "	7.3 mm	0.287 "	4.3 mm	63 V
