1299/30C Series

Catalog

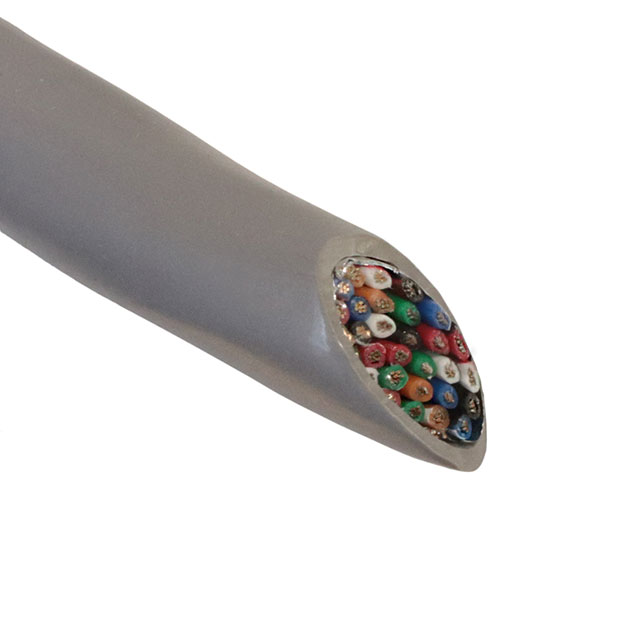

MULTICONDUCTOR CABLE, CONTROL, SHIELDED, 30 CONDUCTOR, 22 AWG, 0.35 MM², 500 FT, 152.4 M

Part	Shield Coverage	Shield Material	Wire Gauge	Number of Conductors	Jacket Color	Shield Type	Usage	Cable Type	Features	Operating Temperature [Max]	Operating Temperature [Min]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Material	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length	Length	Voltage	Conductor Insulation	Jacket (Insulation) Material	Length [x]	Length [x]
ALPHA WIRE 1299/30C SL002	100 %	Aluminum	22 AWG	30	Slate	Foil	Communication Control	Multi-Conductor	Drain Wire	80 °C	-20 ░C	0.813 mm	0.032 in	Copper Tinned	30 AWG	7	0.389 in	9.88 mm	152.4 m	500 ft	300 VDC	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
ALPHA WIRE 1299/30C SL005	100 %	Aluminum	22 AWG	30	Slate	Foil	Communication Control	Multi-Conductor	Drain Wire	80 °C	-20 ░C	0.813 mm	0.032 in	Copper Tinned	30 AWG	7	0.389 in	9.88 mm			300 VDC	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	100 ft	30.5 m
ALPHA WIRE 1299/30C SL001	100 %	Aluminum	22 AWG	30	Slate	Foil	Communication Control	Multi-Conductor	Drain Wire	80 °C	-20 ░C	0.813 mm	0.032 in	Copper Tinned	30 AWG	7	0.389 in	9.88 mm	304.8 m	1000 ft	300 VDC	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
