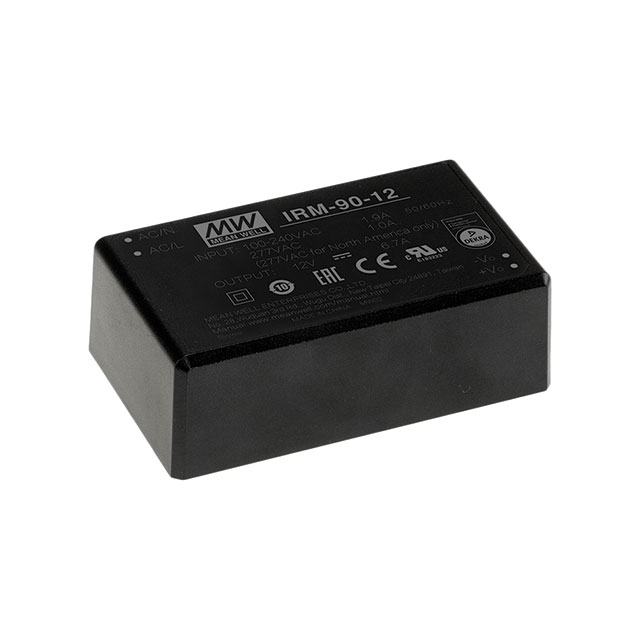

IRM-90 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K
AC/DC CONVERTER 24V 90W
| Part | Load Regulation | Line Regulation | Package / Case | Number of Outputs | Type | Applications | Approval Agency | Voltage - Output 1 | Features | Power (Watts) | Mounting Type | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Operating Temperature [Max] | Operating Temperature [Min] | Current - Output (Max) [Max] | Efficiency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | 0.5 % | 0.5 % | 4-DIP Module | 1 | Enclosed | Household Appliances ITE (Commercial) | CB CE cURus EAC | 24 V | Universal Input | 90 W | Through Hole | 1.16 in | 3.43 " | 29.5 mm | 2.05 in | 52 mm | 87 mm | 80 °C | -30 °C | 3.75 A | 93 % |
