04DB Series
Manufacturer: JST Sales America Inc.
Beta
⌘K
CONN WIRE IDC 4POS 24-28AWG PCB
| Part | Number of Positions Loaded | Wire Gauge [Min] | Wire Gauge [Max] | Wire Gauge | Features | Mounting Type | Cable Pitch | Cable Pitch | Color | Connector Type | Cable Termination | Board-Side Pitch | Board-Side Pitch | Number of Positions | Contact Finish | Number of Rows |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

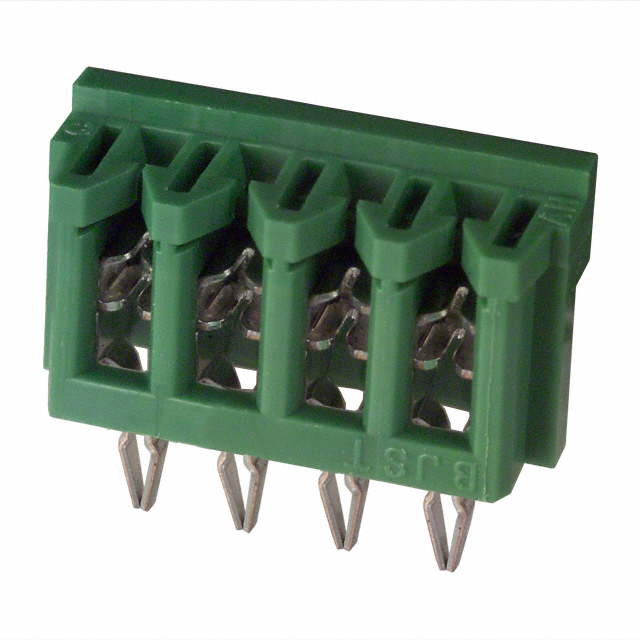

 JST Sales America Inc. | All | 24 AWG | 28 AWG | Stranded | Closed End | Press-Fit Through Hole | 0.098 in | 2.5 mm | Green | Individual Wires | IDC | 2.5 mm | 0.098 in | 4 | Tin-Lead | 1 |

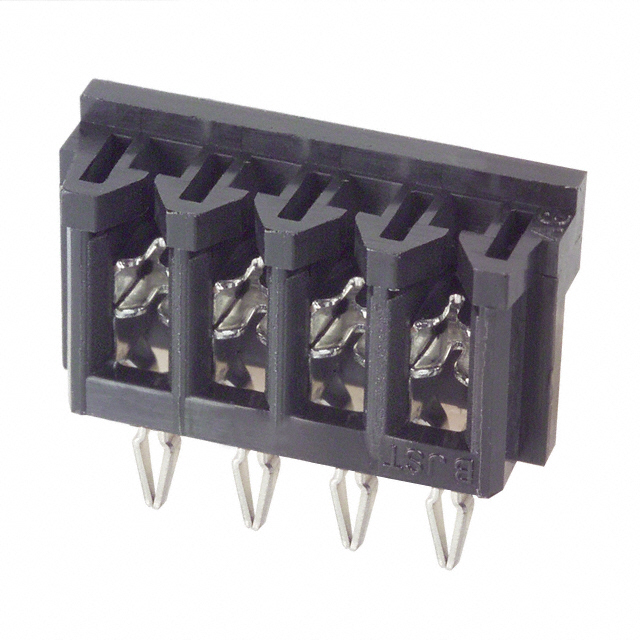

 JST Sales America Inc. | All | 24 AWG | 28 AWG | Stranded | Closed End | Press-Fit Through Hole | 0.098 in | 2.5 mm | Black | Individual Wires | IDC | 2.5 mm | 0.098 in | 4 | Tin-Lead | 1 |

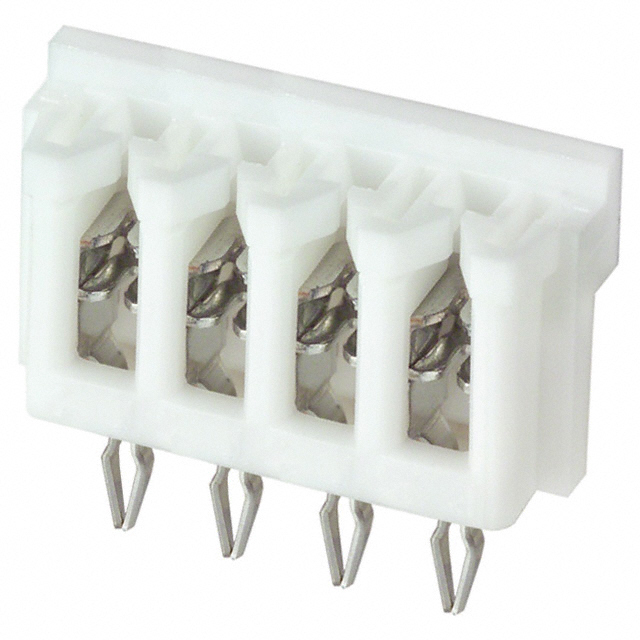

 JST Sales America Inc. | All | 24 AWG | 28 AWG | Stranded | Closed End | Press-Fit Through Hole | 0.098 in | 2.5 mm | White | Individual Wires | IDC | 2.5 mm | 0.098 in | 4 | Tin-Lead | 1 |
