D37P23 Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K

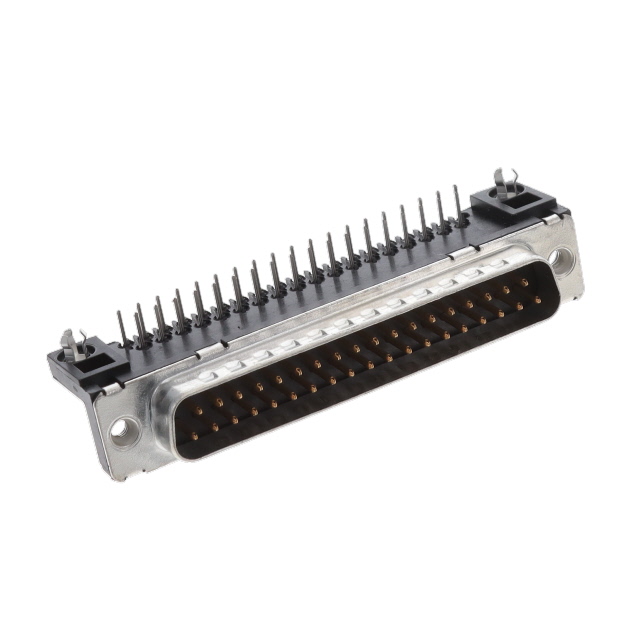

DSUB RA STB 37 PIN
| Part | Termination | Connector Type | Features | Contact Finish | Flange Feature | Operating Temperature [Min] | Operating Temperature [Max] | Number of Rows | Dielectric Material | Shell Size, Connector Layout | Contact Material | Color | Number of Positions | Material Flammability Rating | Current Rating (Amps) | Voltage Rating | Contact Type | Backset Spacing | Backset Spacing | Contact Finish Thickness | Connector Style | Mounting Type | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol ICC (FCI) | Solder | Male Pins Plug | Grounding Indents | Gold | Housing/Shell (Unthreaded) | -55 °C | 125 °C | 2 | Thermoplastic | 4 (DC C) | Brass | Black | 37 | UL94 V-0 | 5 A | 300 VDC | Signal | 0.409 in | 10.4 mm | Flash | D-Sub | Through Hole Right Angle | ||
Amphenol ICC (FCI) | Solder | Male Pins Plug | Board Lock Grounding Indents Mounting Brackets | Gold or Gold GXT™ | Housing/Shell (4-40) | -55 °C | 125 °C | 2 | Polyester | 4 (DC C) | Brass | Black | 37 | UL94 V-0 | 5 A | 300 VDC | Signal | 0.409 in | 10.4 mm | D-Sub | Through Hole Right Angle | 0.76 Ám | 30 Áin | |
Amphenol ICC (FCI) | Solder | Male Pins Plug | Board Lock Grounding Indents Mounting Brackets | Gold | Housing/Shell (4-40) | -55 °C | 125 °C | 2 | Polyester | 4 (DC C) | Brass | Black | 37 | UL94 V-0 | 5 A | 300 VDC | Signal | 0.409 in | 10.4 mm | Flash | D-Sub | Through Hole Right Angle | ||
 Amphenol ICC (FCI) | Solder | Male Pins Plug | Board Lock Grounding Indents Mounting Brackets | Gold or Gold GXT™ | Housing/Shell (4-40) | -55 °C | 125 °C | 2 | Polyester | 4 (DC C) | Brass | Black | 37 | UL94 V-0 | 5 A | 300 VDC | Signal | 0.409 in | 10.4 mm | D-Sub | Through Hole Right Angle | 0.76 Ám | 30 Áin |
