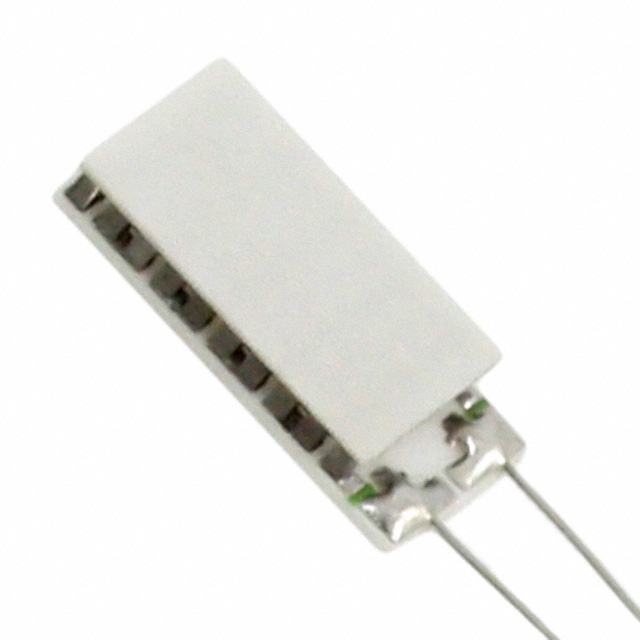

430264 Series

Catalog

PELTIR OT20,30,F2A,0610,GG,W2.25

Part	Number of Stages	Height [z]	Resistance	Size / Dimension [y]	Size / Dimension [x]	Operating Temperature	Features	Qmax @ Th	Current - Max [Max]	Delta Tmax @ Th	Voltage - Max [Max]	Height
Laird Thermal Systems, Inc. 430264-502	1	2.06 mm	1.57 Ohms	6.2 mm	12.3 mm	80 °C	Lead Wires Non-Sealed	4.1 W	2 A	67 °C	3.4 V
Laird Thermal Systems, Inc. 430264-504	1		1.57 Ohms	6.2 mm	12.3 mm	80 °C	Lead Wires Sealed - Epoxy	4.1 W	2 A	67 °C	3.4 V	1.8 mm
Laird Thermal Systems, Inc. 430264-503	1		1.57 Ohms	6.2 mm	12.3 mm	80 °C	Lead Wires Non-Sealed	4.1 W	2 A	67 °C	3.4 V	1.8 mm
