BDS2EJAAGUL Series

2ch IPS (Intelligent Power Switch)

Catalog

2ch IPS (Intelligent Power Switch)

Part	Mounting Type	Input Type	Voltage - Supply (Vcc/Vdd)	Voltage - Load [Min]	Voltage - Load [Max]	Supplier Device Package [y]	Supplier Device Package [x]	Supplier Device Package	Rds On (Typ)	Switch Type	Operating Temperature [Min]	Operating Temperature [Max]	Interface	Package / Case	Current - Output (Max) [Max]	Ratio - Input:Output [custom]	Output Type	Fault Protection	Output Configuration	Number of Outputs

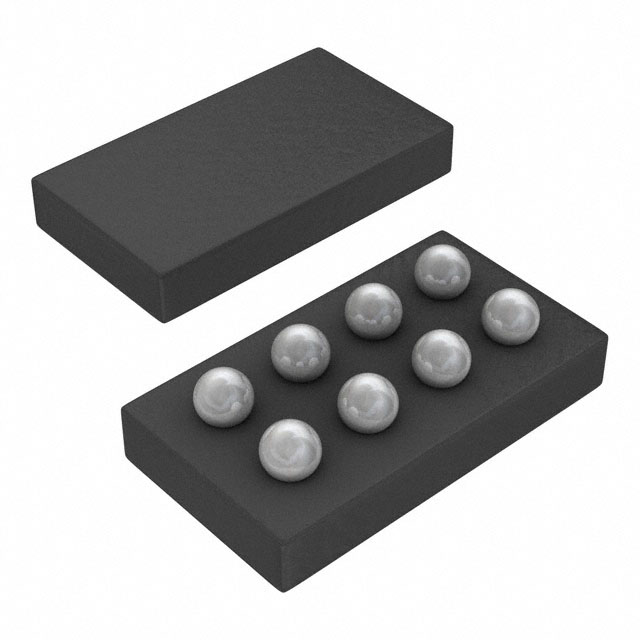

Rohm Semiconductor BDS2EJAAGUL-E2	Surface Mount	Non-Inverting		3 V	3.6 V	1	1.95	8-VCSP50L1	45 mOhm	General Purpose	-40 °C	100 °C	On/Off	8-UFBGA CSPBGA	1 A	1:1	N-Channel	Current Limiting (Fixed) Over Temperature Reverse Current UVLO	High Side	2

Catalog

2ch IPS (Intelligent Power Switch)

Key Features

• Dual N-MOS FET high side switch (Typ 45mΩ)., Built-in soft start circuit., Built-in over current protection circuit (OCP)., Built-in thermal shut down circuit (TSD)., Built-in N-channel MOSFET to discharge output capacitance, Reverse-current protection., Input sequence free.

Description

BDS2EJAAGUL is an intelligent power switch IC (IPS) that has two built-in N-channel MOSFETs capable of carrying 1A current. This switch IC operates from low input voltages from 0.9V to 3.6V and exhibits a typical on-resistance of 45mΩ. Built-in safety features include soft-start, over current protection with fold back current limiting, under voltage lockout, thermal shut down and reverse current protection when power is switched off. BDS2EJAAGUL is available in a space-saving VCSP50L1 package and uses an internal N-channel MOSFET for discharging output capacitance.
