19140010 Series
Manufacturer: HARTING
Beta
⌘K

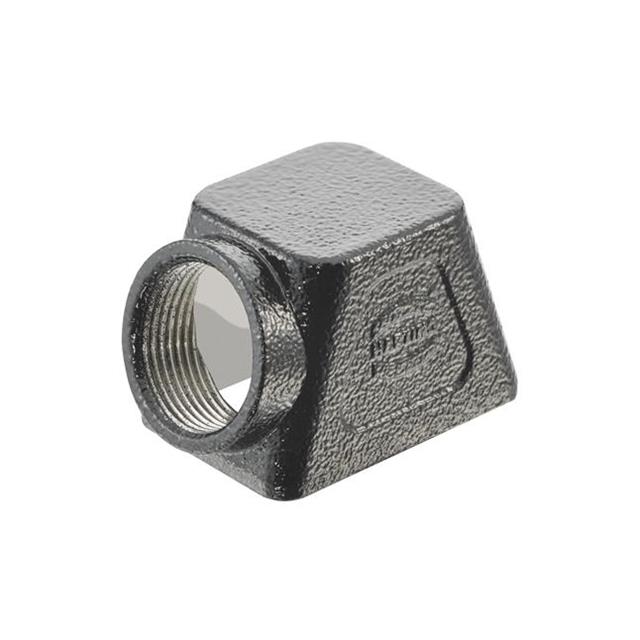

HEAVY DUTY CONNECTOR, M25 SIDE ENTRY, HOOD, SIDE ENTRY, ZINC BODY, 1 LEVER
| Part | Style | Connector Type | Operating Temperature [Max] | Operating Temperature [Min] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Housing Finish | Ingress Protection | Housing Material | Thread Size | Size / Dimension [y] | Size / Dimension [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

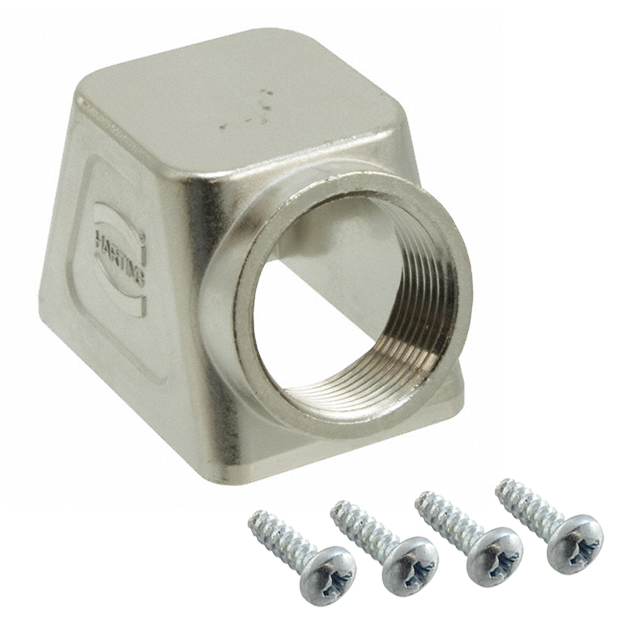

 HARTING | Side Entry | Hood | 125 °C | -40 C | 33.8 mm | 1.331 in | 48 mm | 1.89 in | 34 mm | 1.339 in | Nickel | IP65 - Dust Tight Water Resistant | Zinc Die Cast | M25 | ||

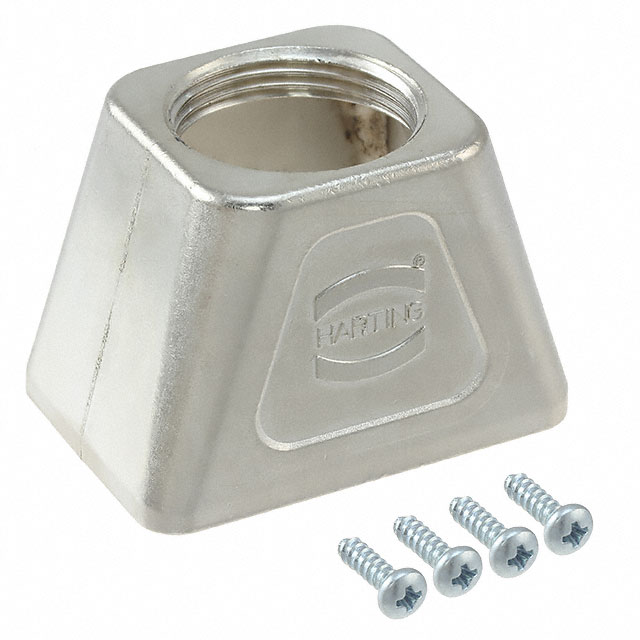

 HARTING | Top Entry | Hood | 125 °C | -40 C | 33.8 mm | 1.331 in | 48 mm | 1.89 in | 34 mm | 1.339 in | Nickel | IP65 - Dust Tight Water Resistant | Zinc Die Cast | M25 | ||
 HARTING | ||||||||||||||||

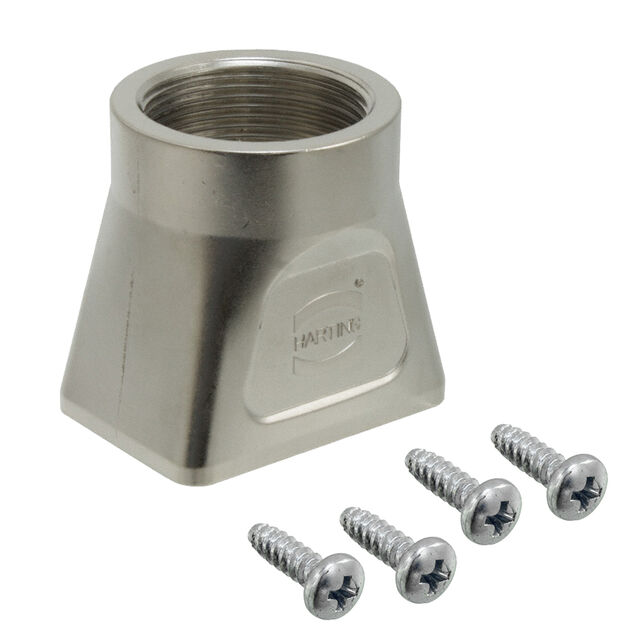

 HARTING | Top Entry | Hood | 125 °C | -40 C | 1.331 in | 48 mm | 1.89 in | 1.831 in | Nickel | IP65 - Dust Tight Water Resistant | Zinc Die Cast | M32 | 33.8 mm | 46.5 mm |
