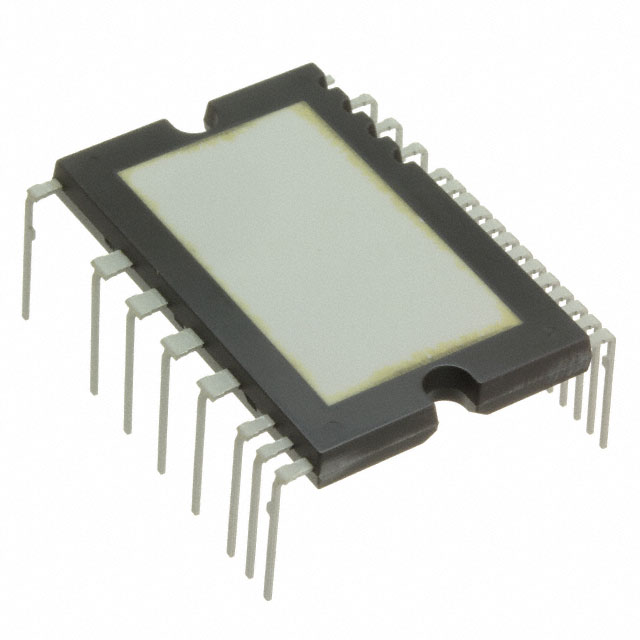

BM63964S-VA Series

600V IGBT Intelligent Power Module (IPM) for high speed switching drive

Catalog

600V IGBT Intelligent Power Module (IPM) for high speed switching drive

Part	Type	Mounting Type	Voltage - Isolation	Configuration	Current	Package / Case	Voltage
Rohm Semiconductor BM63964S-VA	IGBT	Through Hole	1500 VAC	3 Phase Inverter	15 A	25-PowerDIP Module	600 V

Catalog

600V IGBT Intelligent Power Module (IPM) for high speed switching drive

Key Features

• 3phase DC/AC Inverter, 600V/15A, Low Side IGBT Open Emitter, Built -in Bootstrap Diode, High Side IGBT Gate Driver(HVIC): SOI (Silicon On Insulator) Process, Drive Circuit, High Voltage Level Shifting, Current Limit for Bootstrap Diode, Control Supply Under-Voltage Locked Out (UVLO), Low Side IGBT Gate Driver(LVIC): Drive Circuit, Short Circuit Current Protection (SCP), Control Supply Under Voltage Locked Out (UVLO), Temperature Output by Analog Signal (VOT), Fault Signal(LVIC): Corresponding to SCP (Low Side IGBT), UVLO Fault, Input Interface 3.3V, 5V Line, UL Recognized: File E468261

Description

BM63964S-VA is an Intelligent Power Module composed of gate drivers, bootstrap diodes, IGBTs, fly wheel diodes. Small switching loss IGBTs optimized for high speed switching drive such as a washing machine or a fan motor is adopted.
