Dsr0 Series Series

IP65 Sealed, Illuminated Rocker Switch

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

IP65 Sealed, Illuminated Rocker Switch

Part	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Termination Style	Actuator Type	Switch Function	Circuit	Current Rating (Amps)	Electrical Life	Ingress Protection	Voltage Rating - AC	Actuator Marking	Mounting Type	Color - Actuator/Cap	Approval Agency	Illumination Voltage (Nominal)	Illumination Type, Color	Voltage Rating - DC

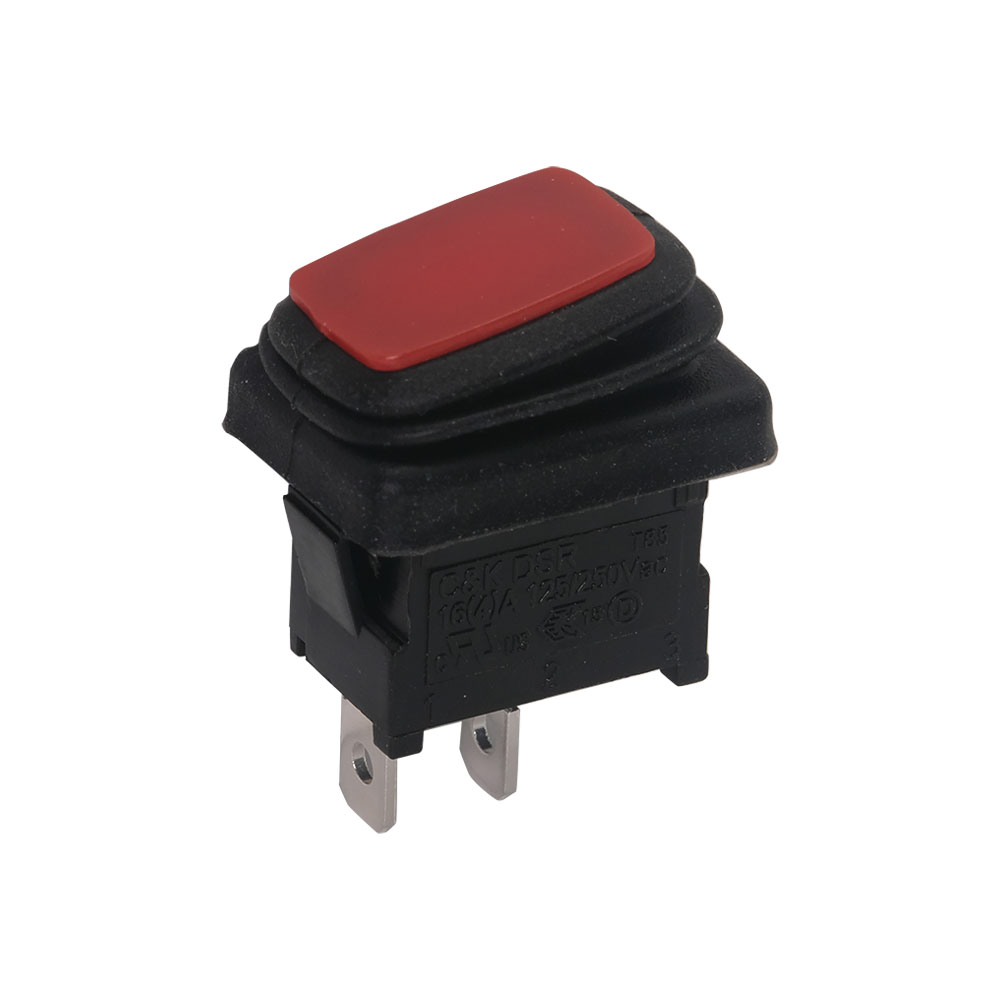

Littelfuse/Commercial Vehicle Products DSR11151	-25 °C	85 °C	Quick Connect Solder	0.187 in 4.7 mm	Convex (Reverse V)	On-On	SPDT	16 A	10000 Cycles	IP65 - Dust Tight Water Resistant	125 V	No Marking	Panel Mount Snap-In	Black	cULus

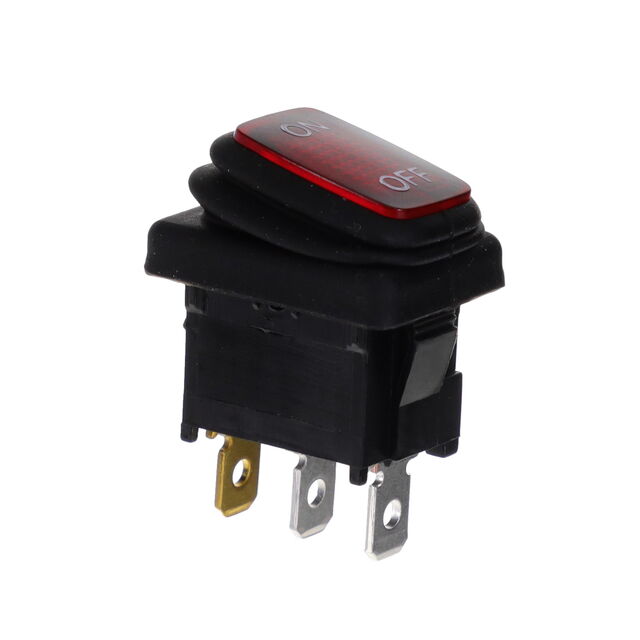

Littelfuse/Commercial Vehicle Products DSR2215RD612	-25 °C	85 °C	Quick Connect Solder	0.187 in 4.7 mm	Convex (Reverse V) - Illuminated	On-On	SPDT	16 A	10000 Cycles	IP65 - Dust Tight Water Resistant		ON OFF Vertical	Panel Mount Snap-In	Red	cULus	12 VDC	LED Red	12 V
Littelfuse/Commercial Vehicle Products DSR2215GD612	-25 °C	85 °C	Quick Connect Solder	0.187 in 4.7 mm	Convex (Reverse V) - Illuminated	On-Off	SPST	16 A	10000 Cycles	IP65 - Dust Tight Water Resistant		ON OFF Vertical	Panel Mount Snap-In	Green	cULus	12 VDC	Green LED	12 V

Catalog

IP65 Sealed, Illuminated Rocker Switch

Key Features

• IP65 sealed

• LED and NEON illumination

• 4.8mm quick connect terminals

• Standard ON OFF, I O and - O actuator markings available

• Easy installation. No soldering required.

Description

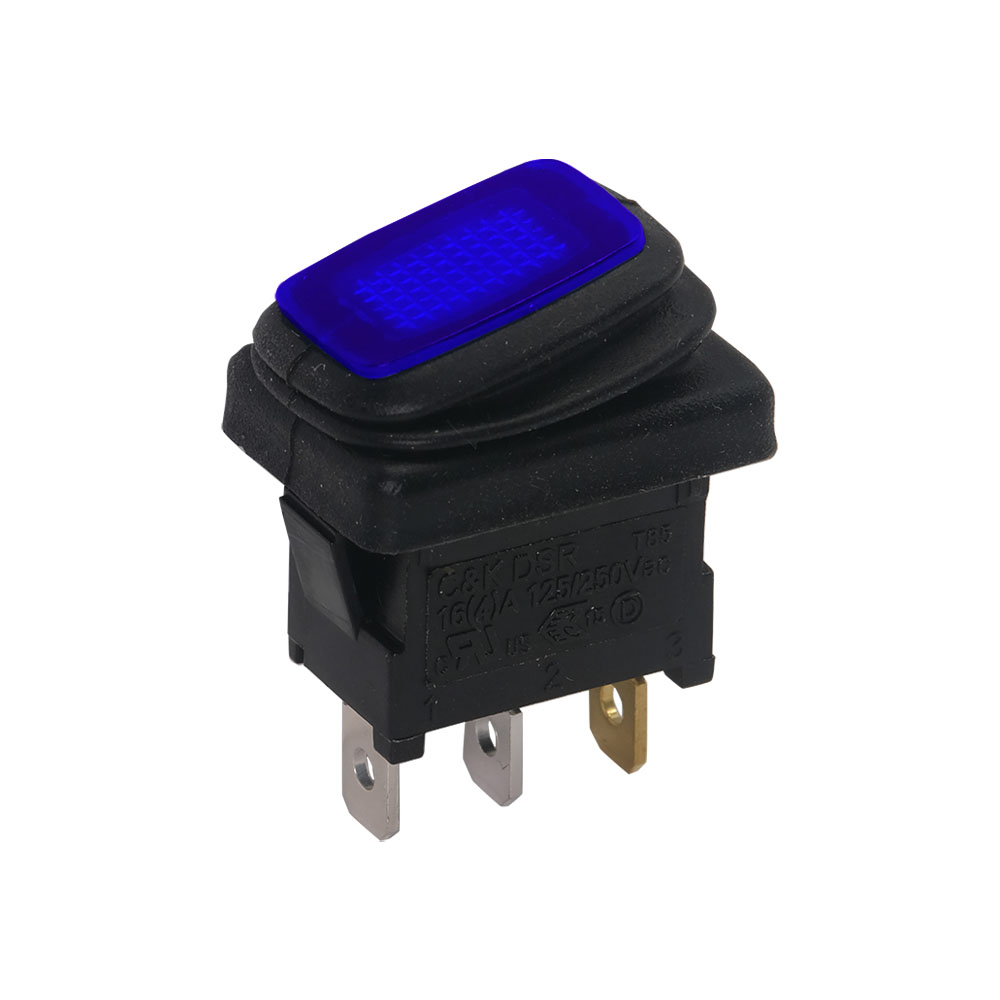

The new DSR series is a IP65 sealed Illuminated Rocker Switch. All switches are RoHS compliant and available both illuminated (LED or NEON, red, green and blue) and non-illuminated (black or red). For applications in harsh environments the IP65 sealing offers protection against solid objects, liquids or dust. Rated up to 16A @ 125/250VAC.
