0907-5 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

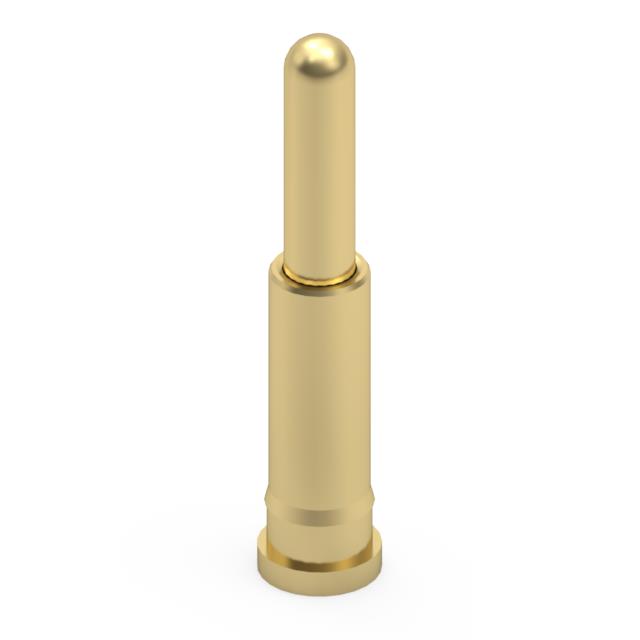

CONTACT SPRING LOADED SMD GOLD
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Pad Layout Dimension | Pad Layout Dimension | Operating Force - Mid Compression | Operating Force - Initial | Maximum Working Height [Max] | Maximum Working Height [Max] | Minimum Working Height | Minimum Working Height | Contact Material | Contact Finish | Current Rating (Amps) | Recommended Working Height | Recommended Working Height | Contact Type | Plunger Size [diameter] | Plunger Size [diameter] | Contact Finish Thickness | Contact Finish Thickness | Mating Cycles |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | Surface Mount | 0.072 in | 1.83 mm | 60 gf | 10 gf | 8.89 mm | 0.35 in | 0.295 in | 7.49 mm | Brass Alloy | Gold | 5.2 A | 0.322 in | 8.19 mm | Sleeve & Plunger (Pogo Pins) | 0.042 in | 1.07 mm | 20 µin | 0.51 µm | 1000000 |
