C4AEOB Series

Manufacturer: KEMET

Catalog

CAP FILM 8UF 5% 900VDC RADIAL

Part	ESR (Equivalent Series Resistance)	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Capacitance	Tolerance	Mounting Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Lead Spacing	Lead Spacing	Dielectric Material	Voltage Rating - DC	Termination	Package / Case	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [x]	Size / Dimension [y]	Height - Seated (Max)	Height - Seated (Max)
KEMET C4AEOBU4800A12J	6.6 mOhms	DC Filtering DC Link High Frequency Switching	85 °C	-40 C	8 µF	5 %	Through Hole	1.465 in	37.2 mm	0.866 in	1.24 in	31.5 mm	22 mm	27.5 mm	1.083 in	Polypropylene (PP) Metallized	900 VDC	PC Pins	Radial

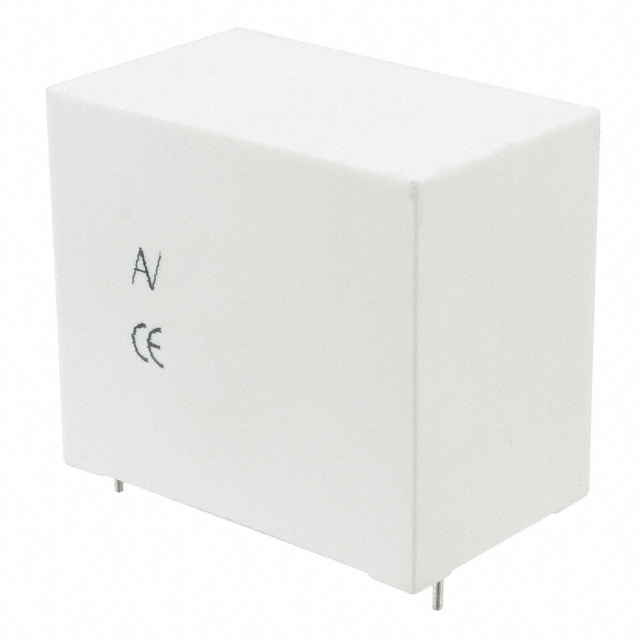

KEMET C4AEOBW5400H3NJ		DC Filtering DC Link High Frequency Switching	105 ░C	-40 C	40 µF	5 %	Through Hole			1.181 in	2.264 in	57.5 mm	30 mm	52.5 mm	2.067 in	Polypropylene (PP) Metallized	900 VDC	PC Pins	Radial	1.969 in	50 mm

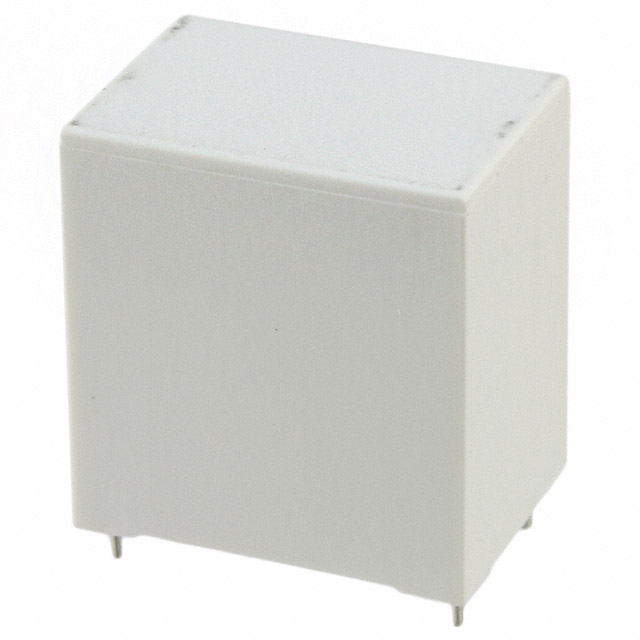

KEMET C4AEOBW5200A3LJ	3.9 mOhms	DC Filtering DC Link High Frequency Switching	85 °C	-40 C	20 µF	5 %	Through Hole	1.772 "	45 mm	1.181 in	1.654 in	42 mm	30 mm	37.5 mm	1.476 in	Polypropylene (PP) Metallized	900 VDC	PC Pins	Radial - 4 Leads
KEMET C4AEOBW5400A3NJ	3.3 mOhms	DC Filtering DC Link High Frequency Switching	85 °C	-40 C	40 µF	5 %	Through Hole					2.264 in	1.378 in	52.5 mm	2.067 in	Polypropylene (PP) Metallized	900 VDC	PC Pins	Radial - 4 Leads	1.969 in	50 mm	57.5 mm	35 mm

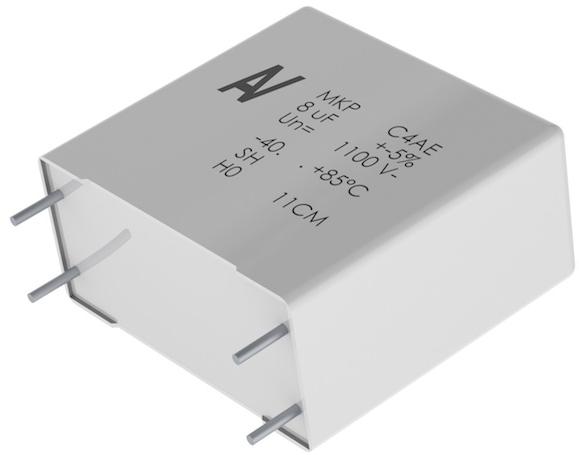

KEMET C4AEOBU4500A11J	9.1 mOhms	DC Filtering DC Link High Frequency Switching	85 °C	-40 C	5 µF	5 %	Through Hole	1.15 "	29.2 mm					27.5 mm	1.083 in	Polypropylene (PP) Metallized	900 VDC	PC Pins	Radial
KEMET C4AEOBW5300A3MJ	4.2 mOhm	DC Filtering DC Link High Frequency Switching	85 °C	-40 C	30 µF	5 %	Through Hole			1.181 in	2.264 in	57.5 mm	30 mm	52.5 mm	2.067 in	Polypropylene (PP) Metallized	900 VDC	PC Pins	Radial - 4 Leads					1.783 in	45.3 mm
KEMET C4AEOBU4270A1XJ	15.3 mOhms	DC Filtering DC Link High Frequency Switching	85 °C	-40 C	2.7 µF	5 %	Through Hole	0.992 in	25.2 mm	0.512 "	1.24 in	31.5 mm	13 mm	27.5 mm	1.083 in	Polypropylene (PP) Metallized	900 VDC	PC Pins	Radial
