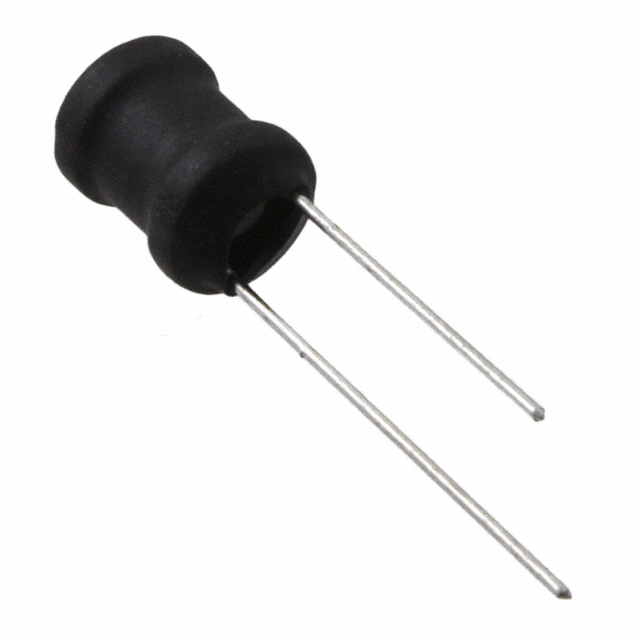

RLB9012 Series

Catalog

INDUCTOR, POWER, RLB SERIES, 33 µH, 2.05 A, 0.09 OHM, ± 10%

Part	Inductance	Shielding	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	DC Resistance (DCR) [Max]	Height - Seated (Max)	Height - Seated (Max) [Max]	Current Rating (Amps)	Material - Core	Inductance Frequency - Test	Tolerance	Size / Dimension [diameter]	Size / Dimension [diameter]	Q @ Freq	Frequency - Self Resonant	Type	Mounting Type	Q @ Freq [custom]	Q @ Freq [custom]	Q @ Freq [custom]
Bourns Inc. RLB9012-330KL	33 µH	Unshielded	-55 C	125 °C	Radial Vertical Cylinder	90 mOhm	12.2 mm	0.48 in	2.05 A	Ferrite	1 kHz	10 %	9 mm	0.354 in	2.52 MHz 30	7.8 MHz	Drum Core Wirewound	Through Hole
Bourns Inc. RLB9012-123KL	12 mH	Unshielded	-55 C	125 °C	Radial Vertical Cylinder	34.7 Ohm	12.2 mm	0.48 in	150 mA	Ferrite	1 kHz	10 %	9 mm	0.354 in	15 79 kHz	280 kHz	Drum Core Wirewound	Through Hole
Bourns Inc. RLB9012-820KL	82 µH	Unshielded	-55 C	125 °C	Radial Vertical Cylinder	230 mOhm	12.2 mm	0.48 in	1.3 A	Ferrite	1 kHz	10 %	9 mm	0.354 in	2.52 MHz 30	4.1 MHz	Drum Core Wirewound	Through Hole

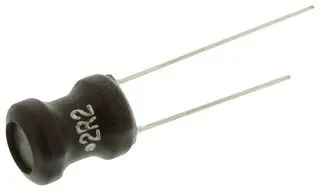

Bourns Inc. RLB9012-2R2ML	2.2 µH	Unshielded	-55 C	125 °C	Radial Vertical Cylinder	21 mOhm	12.2 mm	0.48 in	6.5 A	Ferrite	1 kHz	20 %	9 mm	0.354 in		90 MHz	Drum Core Wirewound	Through Hole	7.96 MHz	20
Bourns Inc. RLB9012-153KL	15 mH	Unshielded	-55 C	125 °C	Radial Vertical Cylinder	48.9 Ohm	12.2 mm	0.48 in	140 mA	Ferrite	1 kHz	10 %	9 mm	0.354 in	15 79 kHz	250 kHz	Drum Core Wirewound	Through Hole
Bourns Inc. RLB9012-120KL	12 µH	Unshielded	-55 C	125 °C	Radial Vertical Cylinder	50 mOhm	12.2 mm	0.48 in	3.1 A	Ferrite	1 kHz	10 %	9 mm	0.354 in		13 MHz	Drum Core Wirewound	Through Hole

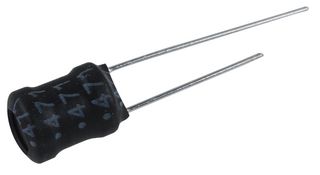

Bourns Inc. RLB9012-122KL	1200 µH	Unshielded	-55 C	125 °C	Radial Vertical Cylinder	3.4 Ohm	12.2 mm	0.48 in	480 mA	Ferrite	1 kHz	10 %	9 mm	0.354 in		1.2 MHz	Drum Core Wirewound	Through Hole		15	252 kHz
Bourns Inc. RLB9012-473KL	47 mH	Unshielded	-55 C	125 °C	Radial Vertical Cylinder		12.2 mm	0.48 in	80 mA	Ferrite	1 kHz	10 %	9 mm	0.354 in	15 79 kHz	120 kHz	Drum Core Wirewound	Through Hole
Bourns Inc. RLB9012-4R7ML	4.7 ÁH	Unshielded	-55 C	125 °C	Radial Vertical Cylinder	30 mOhm	12.2 mm	0.48 in	4.6 A	Ferrite	1 kHz	20 %	9 mm	0.354 in		51 MHz	Drum Core Wirewound	Through Hole	7.96 MHz	20
Bourns Inc. RLB9012-680KL	68 µH	Unshielded	-55 C	125 °C	Radial Vertical Cylinder	210 mOhm	12.2 mm	0.48 in	1.36 A	Ferrite	1 kHz	10 %	9 mm	0.354 in	2.52 MHz 30	4.9 MHz	Drum Core Wirewound	Through Hole
