MP2013 Series

Manufacturer: Monolithic Power Systems Inc.

Catalog

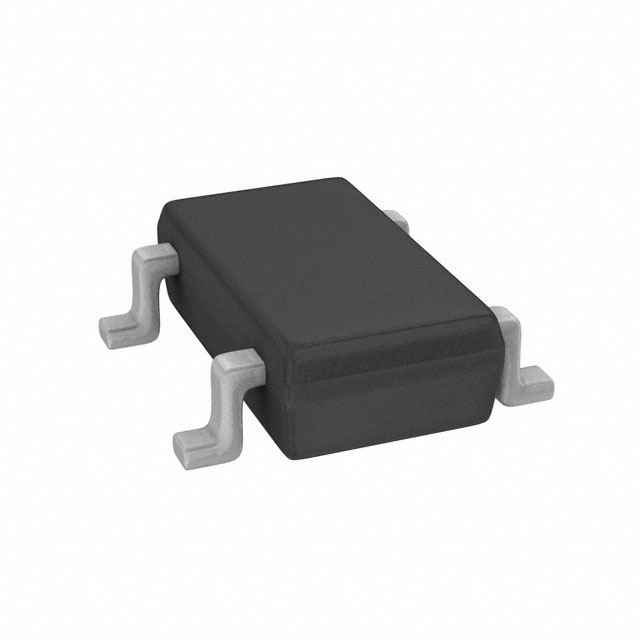

IC REG LINEAR 5V 150MA TSOT23-4

Part	Output Configuration	Mounting Type	Control Features	Voltage - Output (Min/Fixed)	Current - Supply (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Current - Quiescent (Iq)	Package / Case	Protection Features	PSRR [Max]	PSRR [Min]	Supplier Device Package	Number of Regulators	Current - Output	Voltage Dropout (Max)	Voltage - Output (Max) [Max]	Current - Supply (Max)	Output Type	Supplied Contents	Board Type	Contents	Utilized IC / Part	Regulator Type	Channels per IC	Voltage - Input [Min]	Voltage - Input [Max]	Voltage - Output
Monolithic Power Systems Inc. MP2013AGJE-5-C672-Z	Positive	Surface Mount	Enable	5 V	48 µA	-40 C	125 °C	8 ÁA	SOT-23-4 Thin TSOT-23-4	Over Current Over Temperature	58 dB	41 dB	TSOT-23-4	1	150 mA	0.85 V
Monolithic Power Systems Inc. MP2013AGQ-P	Positive	Surface Mount	Enable	1.215 V		-40 C	125 °C	9 µA	8-VDFN Exposed Pad	Over Current Over Temperature	58 dB	41 dB	8-QFN (3x3)	1	150 mA	0.85 V	15 V	22 µA	Adjustable
Monolithic Power Systems Inc. MP2013AGJE-33-C672-Z	Positive	Surface Mount	Enable	3.3 V	50 µA	-40 C	125 °C	10 µA	SOT-23-4 Thin TSOT-23-4	Over Current Over Temperature	58 dB	41 dB	TSOT-23-4	1	150 mA	0.85 V
Monolithic Power Systems Inc. MP2013AGQ-5-P	Positive	Surface Mount	Enable	5 V	48 µA	-40 C	125 °C	8 ÁA	8-VDFN Exposed Pad	Over Current Over Temperature	58 dB	41 dB	8-QFN (3x3)	1	150 mA	0.85 V
Monolithic Power Systems Inc. MP2013AGG-5-P	Positive	Surface Mount	Enable	5 V	47 µA	-40 C	125 °C	7 µA	6-VDFN Exposed Pad	Over Current Over Temperature	58 dB	55 dB	6-QFN (2x2)	1	150 mA	0.85 V
Monolithic Power Systems Inc. MP2013AGQ-5-Z	Positive	Surface Mount	Enable	5 V	48 µA	-40 C	125 °C	8 ÁA	8-VDFN Exposed Pad	Over Current Over Temperature	58 dB	41 dB	8-QFN (3x3)	1	150 mA	0.85 V
Monolithic Power Systems Inc. MP2013AGJE-5-C672-P	Positive	Surface Mount	Enable	5 V	48 µA	-40 C	125 °C	8 ÁA	SOT-23-4 Thin TSOT-23-4	Over Current Over Temperature	58 dB	41 dB	TSOT-23-4	1	150 mA	0.85 V
Monolithic Power Systems Inc. MP2013AGJE-33-C672-P	Positive	Surface Mount	Enable	3.3 V	50 µA	-40 C	125 °C	10 µA	SOT-23-4 Thin TSOT-23-4	Over Current Over Temperature	58 dB	41 dB	TSOT-23-4	1	150 mA	0.85 V
Monolithic Power Systems Inc. MP2013GG-Z	Positive	Surface Mount		1.215 V	50 µA	-40 C	125 °C		6-VDFN Exposed Pad	Over Current Over Temperature	58 dB	41 dB	6-QFN (2x2)	1	150 mA	0.9 V	15 V		Adjustable
Monolithic Power Systems Inc. EV2013B-33-J-Q-G-00A															150 mA					Board(s)	Fully Populated	Board(s)	MP2013B-33 MPQ2013B-33 MPQ2013B-33-AEC1	Positive Fixed	1	4.3 V	40 V	3.3 V
