392-112 Series

Manufacturer: EDAC Inc.

Catalog

CARD EDGE CONNECTOR ROHS COMPLIANT: YES

Part	Termination Rows [custom]	Material - Insulation	Contact Finish	Color	Card Type	Gender	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Termination	Read Out	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Contact Type	Number of Positions/Bay/Row	Number of Positions	Pitch	Pitch	Card Thickness [Max]	Card Thickness [Min]	Number of Rows [custom]	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Features
EDAC Inc. 392-112-540-204	2	Polyester Thermoplastic	Gold	Black	Non Specified - Dual Edge	Female	0.25 Ám	10 Áin	Through Hole	Wire Wrap	Dual	-40 C	105 ░C	Copper Alloy	Cantilever	56	112	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	2	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm
EDAC Inc. 392-112-523-201	2	Polyester Thermoplastic	Gold	Black	Non Specified - Dual Edge	Female	0.25 Ám	10 Áin	Through Hole	Solder	Dual	-40 C	105 ░C	Copper Alloy	Cantilever	56	112	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	2
EDAC Inc. 392-112-540-207	2	Polyester Thermoplastic	Gold	Black	Non Specified - Dual Edge	Female	0.25 Ám	10 Áin	Through Hole	Wire Wrap	Dual	-40 C	105 ░C	Copper Alloy	Cantilever	56	112	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	2	Flush Mount M3 Threaded Insert Top Opening
EDAC Inc. 392-112-555-212	2	Polyester Thermoplastic	Gold	Black	Non Specified - Dual Edge	Female	0.25 Ám	10 Áin	Board Edge Straddle Mount	Solder Eyelet(s)	Dual	-40 C	105 ░C	Copper Alloy	Cantilever	56	112	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	2	Flush Mount Side Opening Unthreaded	0.128 "	3.25 mm	Card Extender
EDAC Inc. 392-112-542-203	2	Polyester Thermoplastic	Gold	Black	Non Specified - Dual Edge	Female	0.25 Ám	10 Áin	Through Hole	Wire Wrap	Dual	-40 C	105 ░C	Copper Alloy	Cantilever	56	112	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	2	Floating Bobbin Flush Mount	0.116 "	2.95 mm
EDAC Inc. 392-112-559-202	2	Polyester Thermoplastic	Gold	Black	Non Specified - Dual Edge	Female	0.25 Ám	10 Áin	Right Angle Through Hole	Solder Wire Wrap	Dual	-40 C	105 ░C	Copper Alloy	Cantilever	56	112	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	2	Flush Mount Top Opening Unthreaded	0.128 "	3.25 mm
EDAC Inc. 392-112-524-212	2	Polyester Thermoplastic	Gold	Black	Non Specified - Dual Edge	Female	0.25 Ám	10 Áin	Through Hole	Solder	Dual	-40 C	105 ░C	Copper Alloy	Cantilever	56	112	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	2	Flush Mount Side Opening Unthreaded	0.128 "	3.25 mm
EDAC Inc. 392-112-555-202	2	Polyester Thermoplastic	Gold	Black	Non Specified - Dual Edge	Female	0.25 Ám	10 Áin	Board Edge Straddle Mount	Solder Eyelet(s)	Dual	-40 C	105 ░C	Copper Alloy	Cantilever	56	112	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	2	Flush Mount Top Opening Unthreaded	0.128 "	3.25 mm	Card Extender

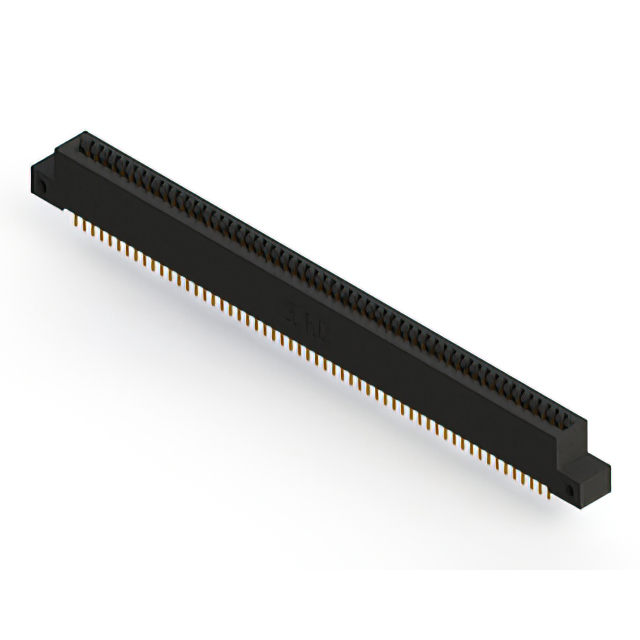

EDAC Inc. 392-112-521-212	2	Polyester Thermoplastic	Gold	Black	Non Specified - Dual Edge	Female	0.25 Ám	10 Áin	Through Hole	Solder	Dual	-40 C	105 ░C	Copper Alloy	Cantilever	56	112	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	2	Flush Mount Side Opening Unthreaded	0.128 "	3.25 mm
EDAC Inc. 392-112-560-204	2	Polyester Thermoplastic	Gold	Black	Non Specified - Dual Edge	Female	0.25 Ám	10 Áin	Board Edge Straddle Mount	Solder	Dual	-40 C	105 ░C	Copper Alloy	Cantilever	56	112	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	2	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm	Card Extender
