BLP8 Series

Catalog

RF MOSFET LDMOS 28V 4HSOP

Part	Mounting Type	Frequency [Max]	Frequency [Min]	Power - Output	Package / Case	Package / Case	Gain	Configuration	Current - Test	Voltage - Rated	Voltage - Test	Supplier Device Package	Frequency	Current Rating (Amps)
Ampleon USA Inc. BLP8G10S-45PGY	Surface Mount	957.5 MHz	952.5 MHz	2.5 W	0.173 " 4.4 mm	4-BESOP	20.8 dB	Common Source Dual	224 mA	65 V	28 V	4-HSOP

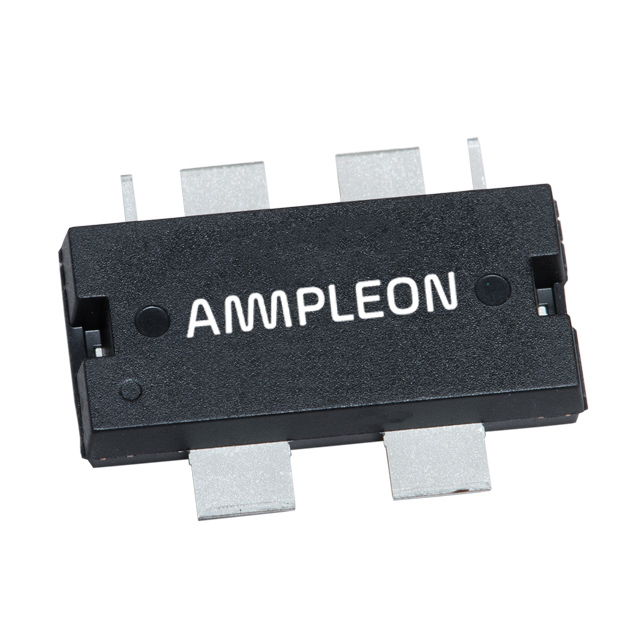

Ampleon USA Inc. BLP8G21S-160PVY	Surface Mount	1.92 GHz	1.88 GHz	20 W		SOT-1221-1	17.5 dBi	Common Source Dual	600 mA	65 V	28 V	6-HSOPF

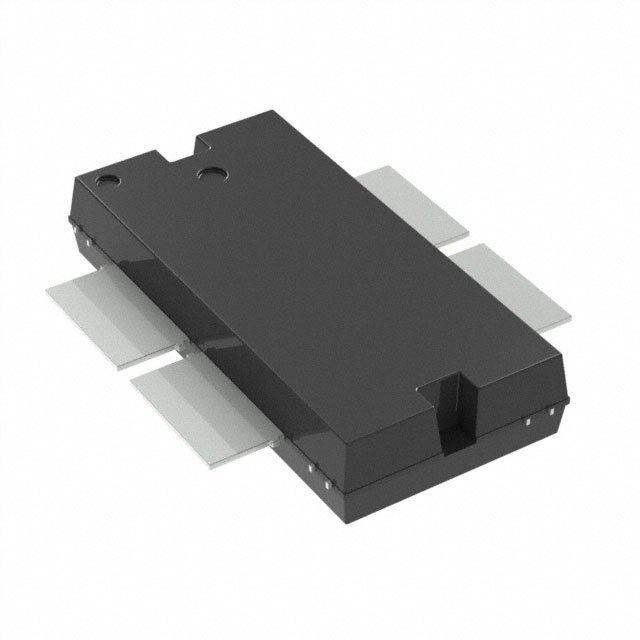

Ampleon USA Inc. BLP8G05S-200Y	Surface Mount			210 W		SOT-1138-2	21 dBi	Common Source Dual	2 mA	65 V	28 V	4-HSOPF	440 MHz
Ampleon USA Inc. BLP8G27-10Z	Surface Mount			2 W		16-VDFN Exposed Pad	17 dBi	Common Source Dual	110 mA	65 V	28 V	16-HVSON (6x4)	2.14 GHz
Ampleon USA Inc. BLP8G10S-45P	Surface Mount	1 GHz	700 MHz	45 W		SOT-1223-2	20.8 dB	Common Source Dual	224 mA	65 V	28 V	4-HSOPF		1.4 µA
