Pushbutton Switches LDS N.O. 1P BEL./ILL
Pushbutton Switches LDS N.O. 1P BEL./ILL
| Part | Actuator Marking | Operating Temperature [Max] | Operating Temperature [Min] | Circuit | Ingress Protection | Actuator Type | Voltage Rating - AC | Switch Function | Mounting Type | Voltage Rating - DC | Termination Style | Current Rating (Amps) | Type | Panel Cutout Dimensions [diameter] | Color - Actuator/Cap | Mechanical Life | Electrical Life | Illumination Type, Color | Illumination Voltage (Nominal) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SCHURTER Inc. | No Marking | ||||||||||||||||||
 SCHURTER Inc. | 85 °C | -25 °C | SPST-NO | IP40 | Button Round | 60 V | Off-On | Panel Mount Front | 50 VDC | Solder Lug | 200 mA | Standard | 8 mm | Black | |||||

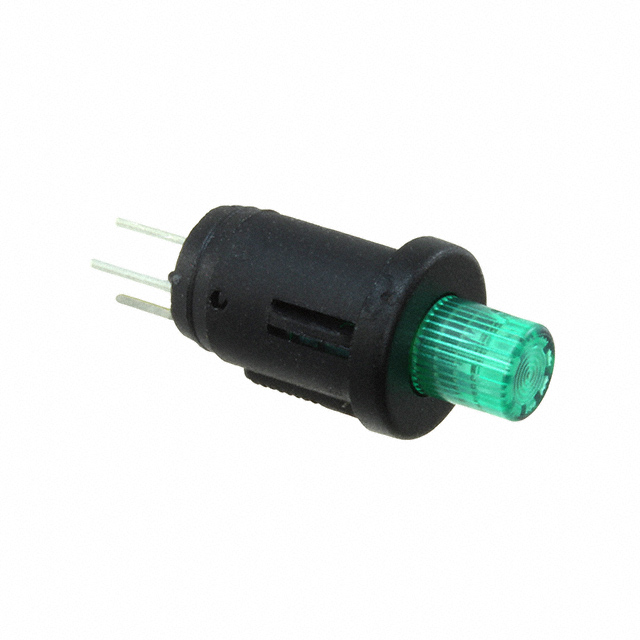

 SCHURTER Inc. | No Marking | 60 °C | -25 °C | SPST-NO | IP40 | Button Round | 60 V | Off-On | Panel Mount Front | 50 VDC | PC Pin | 200 mA | Illuminated Standard | 8 mm | Green | 10000 Steps | 10000 Cycles | Green LED | 2 VDC |
