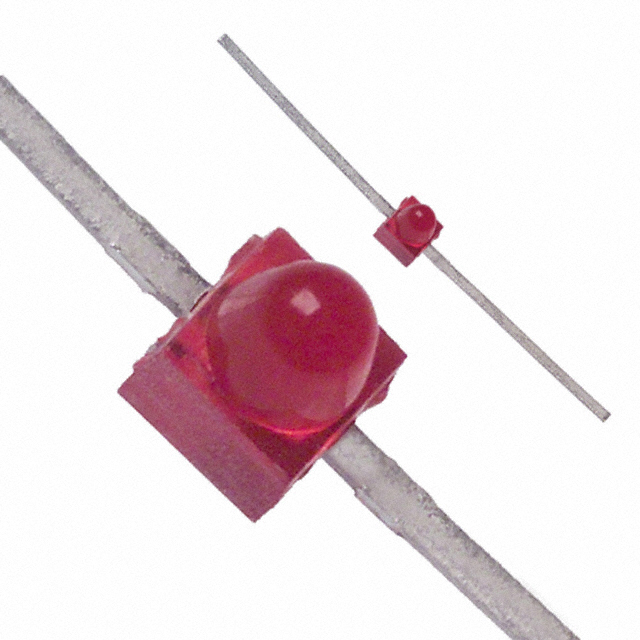

HLMP-7000 Series

Catalog

LED RED DIFFUSED AXIAL T/H AXIAL

Part	Lens Color	Color	Lens Transparency	Current - Test	Wavelength - Peak	Height (Max) [Max]	Size / Dimension [y]	Size / Dimension [x]	Lens Style	Voltage - Forward (Vf) (Typ)	Millicandela Rating	Wavelength - Dominant	Mounting Type	Package / Case	Configuration	Lens Size [diameter]	Supplier Device Package	Viewing Angle [custom]	Package / Case
Broadcom Limited HLMP-7000	Red	Red	Diffused	2 mA	635 nm	2.92 mm	2.21 mm	2.08 mm	Round with Domed Top	1.8 V	1 mcd	626 nm	Axial Through Hole	Axial Flat Leads	Standard	1.91 mm	Axial	90 °
Broadcom Limited HLMP-7000-D001S	Red	Red	Diffused	2 mA	635 nm	2.92 mm	2.21 mm	2.08 mm	Round with Domed Top	1.8 V	1 mcd	626 nm	Through Hole	Axial Right Angle Bend	Standard	1.78 mm	Axial	90 °	2.54 mm
Broadcom Limited HLMP-7000-D0011	Red	Red	Diffused	2 mA	635 nm	2.92 mm	2.21 mm	2.08 mm	Round with Domed Top	1.8 V	1 mcd	626 nm	Surface Mount	2-SMD Gull Wing	Standard	1.78 mm	Gull Wing	90 °
