XAUY14 Series
Manufacturer: SunLED
Beta
⌘K
DISP 14-SEG 0.54" DBL YLW 18DIP
| Part | Number of Characters | Digit/Alpha Size | Digit/Alpha Size | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Color | Package / Case [x] | Package / Case [x] | Package / Case | Power Dissipation (Max) [Max] | Current - Test | Common Pin | Millicandela Rating | Voltage - Forward (Vf) (Typ) | Wavelength - Peak | Display Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

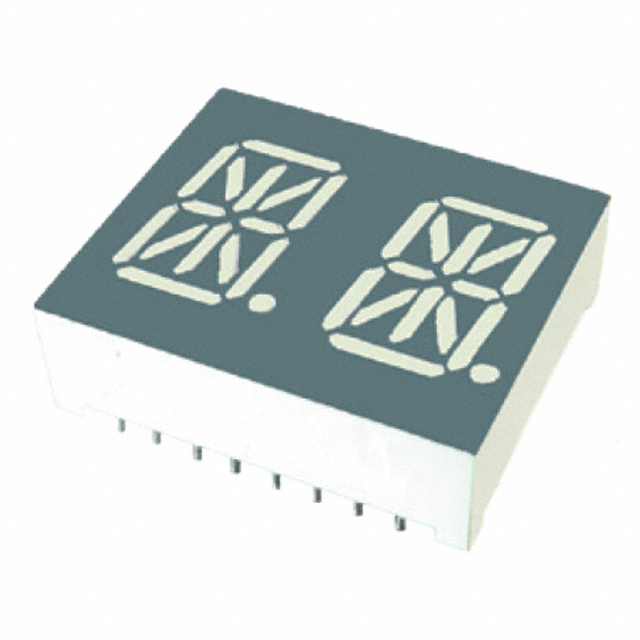

 SunLED | 2 | 0.54 " | 13.72 mm | 0.992 inches | 0.835 " | 25.2 mm | 7.8 mm | 0.31 " | 21.2 mm | Yellow | 15.24 mm | 0.6 in | 18-DIP | 75 mw | 10 mA | Common Cathode | 2 mcd | 1.95 V | 590 nm | 14-Segment Alphanumeric |

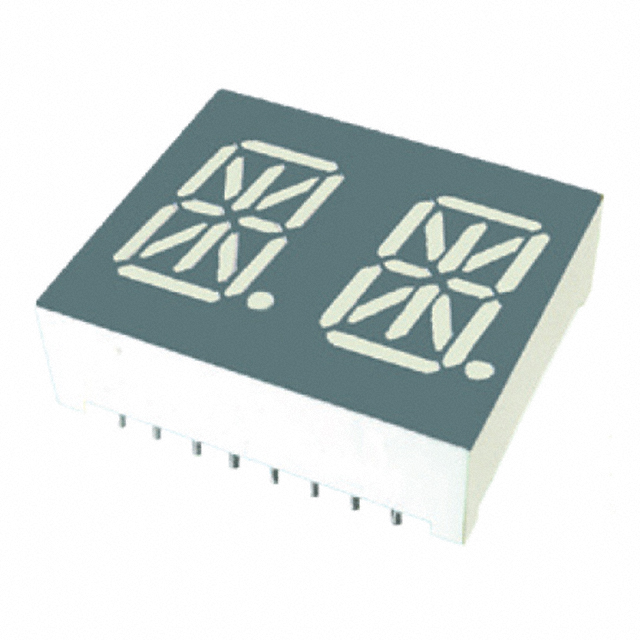

 SunLED | 2 | 0.54 " | 13.72 mm | 0.992 inches | 0.835 " | 25.2 mm | 7.8 mm | 0.31 " | 21.2 mm | Yellow | 15.24 mm | 0.6 in | 18-DIP | 75 mw | 10 mA | Common Anode | 2 mcd | 1.95 V | 590 nm | 14-Segment Alphanumeric |
