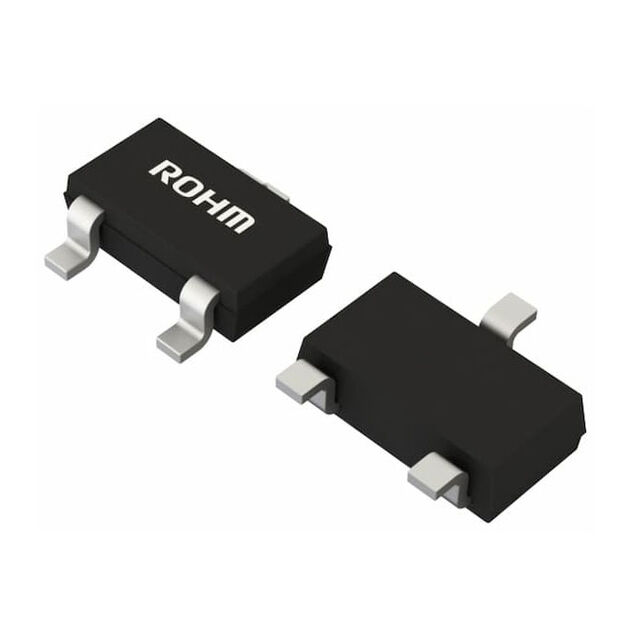

100V 3.5A TSMT3, Power MOSFET
Description
AI
RQ5P035BG is a power MOSFET with low-on resistance, suitable for switching, motor drives and DC/DC converter.
Beta
⌘K
100V 3.5A TSMT3, Power MOSFET
100V 3.5A TSMT3, Power MOSFET
| Part | Rds On (Max) @ Id, Vgs | Input Capacitance (Ciss) (Max) @ Vds [Max] | Mounting Type | Technology | Supplier Device Package | Drive Voltage (Max Rds On, Min Rds On) | Drain to Source Voltage (Vdss) | Power Dissipation (Max) [Max] | Gate Charge (Qg) (Max) @ Vgs [Max] | Current - Continuous Drain (Id) @ 25°C | Vgs(th) (Max) @ Id | Package / Case | FET Type | Vgs (Max) | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rohm Semiconductor | 60 mOhm | 305 pF | Surface Mount | MOSFET (Metal Oxide) | TSMT3 | 4.5 V 10 V | 100 V | 700 mW | 6.7 nC | 3.5 A | 2.5 V | SC-96 | N-Channel | 20 V | 150 °C |
