FC1-25 Series

Catalog

1.00 MM FLAT FLEXIBLE CABLE (FFC

Part	Housing Material	Cable End Type	Features	Pitch [x]	Pitch [x]	FFC, FCB Thickness	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Height Above Board	Height Above Board [z]	Housing Color	Termination	Mating Cycles	Current Rating (Amps)	Flat Flex Type	Connector/Contact Type	Contact Material	Contact Finish
Samtec Inc. FC1-25-01-TM-K-TR	Liquid Crystal Polymer (LCP)	Straight	Pick and Place Cap	0.039 in	1 mm	0.3 mm	Surface Mount	105 ░C	-55 °C	5.18 mm	0.204 in	Black	Solder	25	2 A	FFC	Contacts Vertical - 2 Sided	Phosphor Bronze	Tin
Samtec Inc. FC1-25-L1-T-LC	Liquid Crystal Polymer (LCP)	Straight	Board Lock Low Insertion Force (LIF) Solder Retention	0.039 in	1 mm	0.3 mm	Surface Mount	105 ░C	-55 °C	5.18 mm	0.204 in	Black	Solder	25	2 A	FFC	Contacts Vertical - 2 Sided	Phosphor Bronze	Tin
Samtec Inc. FC1-25-01-T-TR	Liquid Crystal Polymer (LCP)	Straight		0.039 in	1 mm	0.3 mm	Surface Mount	105 ░C	-55 °C	5.18 mm	0.204 in	Black	Solder	25	2 A	FFC	Contacts Vertical - 2 Sided	Phosphor Bronze	Tin
Samtec Inc. FC1-25-01-T-LC-K	Liquid Crystal Polymer (LCP)	Straight	Board Lock Pick and Place Cap	0.039 in	1 mm	0.3 mm	Surface Mount	105 ░C	-55 °C	5.18 mm	0.204 in	Black	Solder	25	2 A	FFC	Contacts Vertical - 2 Sided	Phosphor Bronze	Tin
Samtec Inc. FC1-25-02-T-WT	Liquid Crystal Polymer (LCP)	Straight	Solder Retention	0.039 in	1 mm	0.3 mm	Surface Mount Right Angle	105 ░C	-55 °C			Black	Solder	25	2 A	FFC	Contacts Top and Bottom	Phosphor Bronze	Tin
Samtec Inc. FC1-25-L2-TM	Liquid Crystal Polymer (LCP)	Straight	Low Insertion Force (LIF) Solder Retention	0.039 in	1 mm	0.3 mm	Surface Mount Right Angle	105 ░C	-55 °C			Black	Solder	25	2 A	FFC	Contacts Top and Bottom	Phosphor Bronze	Tin
Samtec Inc. FC1-25-01-T-K	Liquid Crystal Polymer (LCP)	Straight	Pick and Place Cap	0.039 in	1 mm	0.3 mm	Surface Mount	105 ░C	-55 °C	5.18 mm	0.204 in	Black	Solder	25	2 A	FFC	Contacts Vertical - 2 Sided	Phosphor Bronze	Tin
Samtec Inc. FC1-25-L2-T-TR	Liquid Crystal Polymer (LCP)	Straight	Low Insertion Force (LIF) Solder Retention	0.039 in	1 mm	0.3 mm	Surface Mount Right Angle	105 ░C	-55 °C			Black	Solder	25	2 A	FFC	Contacts Top and Bottom	Phosphor Bronze	Tin

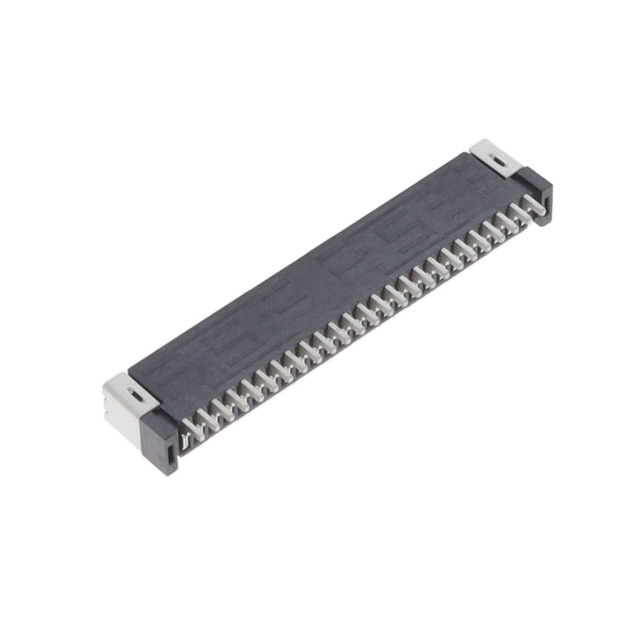

Samtec Inc. FC1-25-02-T-WT-TR	Liquid Crystal Polymer (LCP)	Straight	Solder Retention	0.039 in	1 mm	0.3 mm	Surface Mount Right Angle	105 ░C	-55 °C			Black	Solder	25	2 A	FFC	Contacts Top and Bottom	Phosphor Bronze	Tin
Samtec Inc. FC1-25-01-T-LC	Liquid Crystal Polymer (LCP)	Straight		0.039 in	1 mm	0.3 mm	Surface Mount	105 ░C	-55 °C	5.18 mm	0.204 in	Black	Solder	25	2 A	FFC	Contacts Vertical - 2 Sided	Phosphor Bronze	Tin
