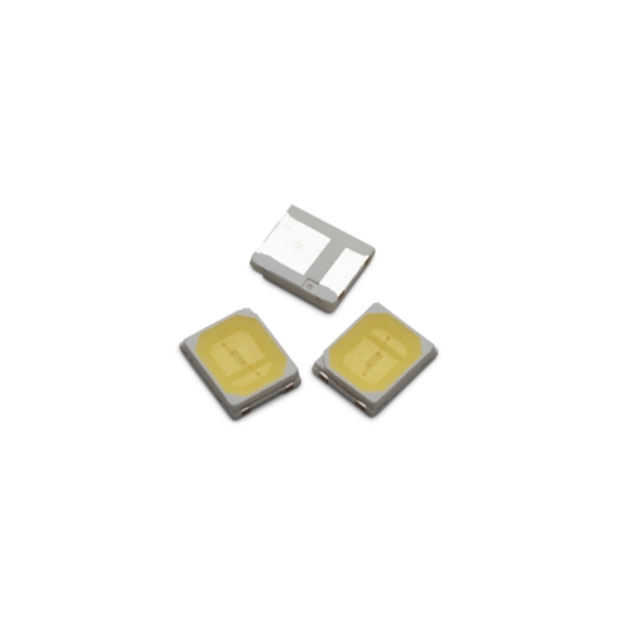

ASMW-FWG0 Series

Catalog

LED SMD

Part	Thermal Resistance of Package	Lumens/Watt @ Current - Test	Mounting Type	Current - Test	CRI (Color Rendering Index)	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Color	CCT (K)	Current - Max [Max]	Flux @ 25°C, Current - Test	Package / Case	Supplier Device Package	Voltage - Forward (Vf) (Typ)	Viewing Angle	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Package / Case
Broadcom Limited ASMW-FWG0-ZJLB6
Broadcom Limited ASMW-FWG0-NJLF6	40 °C/W	123 lm/W	Surface Mount	60 mA	80	3.5 mm	0.11 "	2.8 mm	0.138 in	Neutral White	4000 K	100 mA	23 lm	1113 (2835 Metric)	2835	3.11 V	120 °	0.035 in	0.9 mm

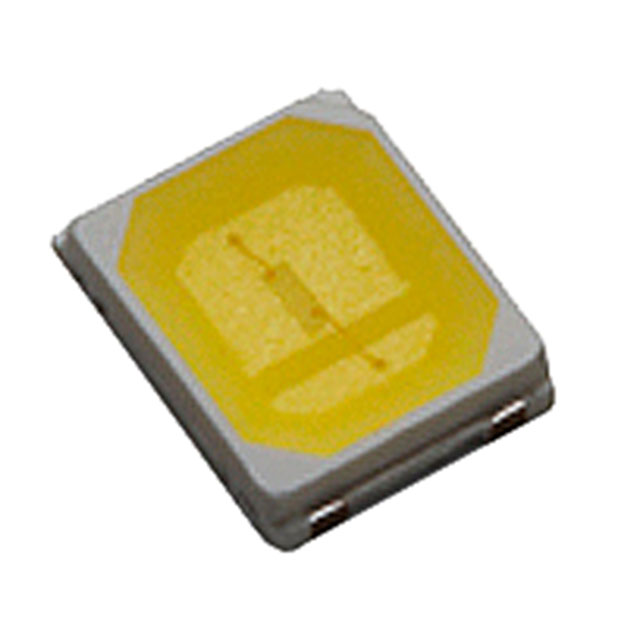

Broadcom Limited ASMW-FWG0-NKMF6	40 °C/W	146 lm/W	Surface Mount	60 mA	80	3.5 mm	0.11 "	2.8 mm	0.138 in	Neutral White	4000 K	100 mA	26 lm	1411	2835	2.92 V	120 °	0.035 in	0.9 mm	3528 Metric

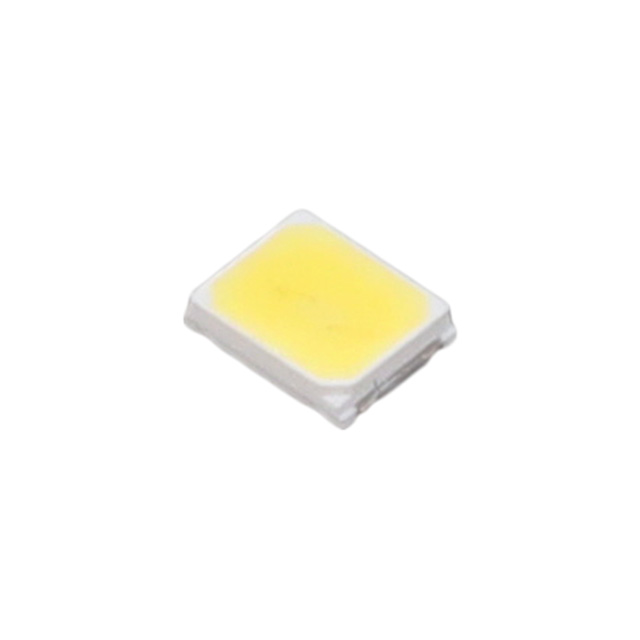

Broadcom Limited ASMW-FWG0-NJLB6	40 °C/W	123 lm/W	Surface Mount	60 mA	80	3.5 mm	0.11 "	2.8 mm	0.138 in	Cool White	6500 K	100 mA	23 lm	1113 (2835 Metric)	2835	3.11 V	120 °	0.035 in	0.9 mm

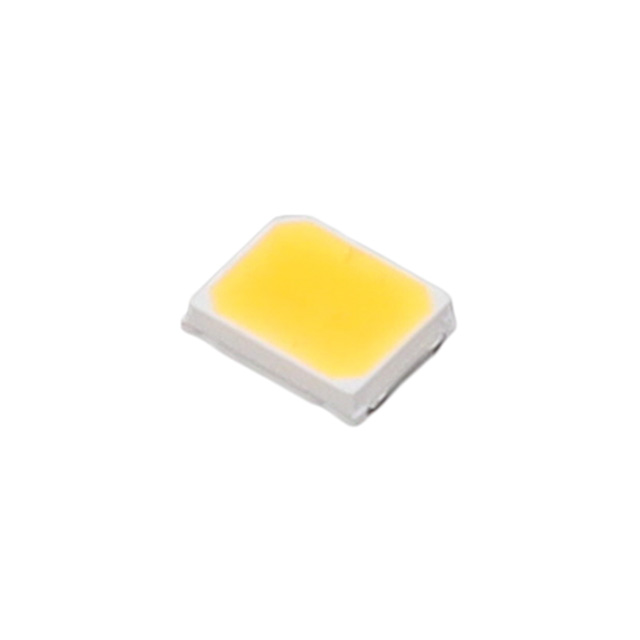

Broadcom Limited ASMW-FWG0-NJLH6	40 °C/W	140 lm/W	Surface Mount	60 mA	80	3.5 mm	0.11 "	2.8 mm	0.138 in	Warm White	3000 K	100 mA	25 lm	1411	2835	2.92 V	120 °	0.035 in	0.9 mm	3528 Metric
