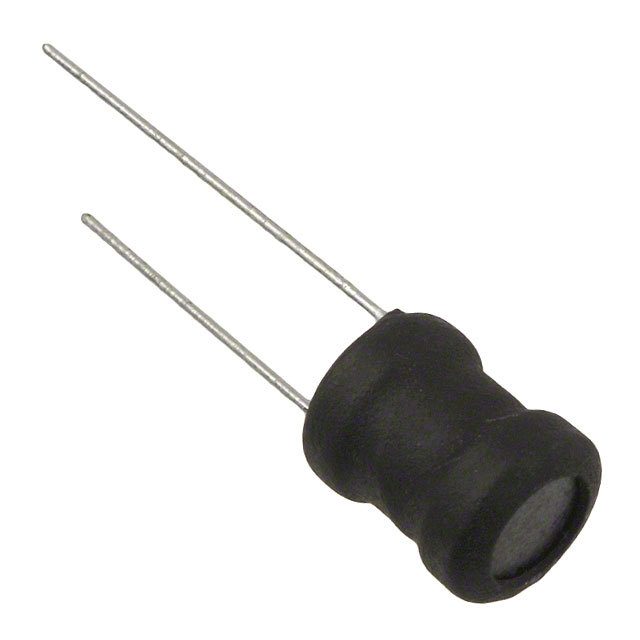

RLB0914 Series

Catalog

INDUCTOR, 4.7UH, 3.2A, 20%, RADIAL

Part	Package / Case	Current Rating (Amps)	Tolerance	Operating Temperature [Max]	Operating Temperature [Min]	Inductance	Q @ Freq [custom]	Q @ Freq [custom]	Frequency - Self Resonant	Current - Saturation (Isat)	DC Resistance (DCR)	Material - Core	Inductance Frequency - Test	Mounting Type	Size / Dimension [diameter]	Size / Dimension [diameter]	Shielding	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Type	DC Resistance (DCR) [Max]	Q @ Freq [custom]	Q @ Freq
Bourns Inc. RLB0914-4R7ML	Radial Vertical Cylinder	3.2 A	20 %	125 °C	-40 C	4.7 ÁH	7.96 MHz	20	50 MHz	10 A	33 mOhm	Ferrite	7.96 MHz	Through Hole	8.7 mm	0.343 in	Unshielded	0.512 "	13 mm	Drum Core Wirewound
Bourns Inc. RLB0914-220KL	Radial Vertical Cylinder	1.9 A	10 %	125 °C	-40 C	22 µH		40	9 MHz	4.5 A		Ferrite	2.52 MHz	Through Hole	8.7 mm	0.343 in	Unshielded	0.512 "	13 mm	Drum Core Wirewound	90 mOhm	2.52 MHz
Bourns Inc. RLB0914-270KL	Radial Vertical Cylinder	1.8 A	10 %	125 °C	-40 C	27 µH		40	8.5 MHz	4 A	110 mOhm	Ferrite	2.52 MHz	Through Hole	8.7 mm	0.343 in	Unshielded	0.512 "	13 mm	Drum Core Wirewound		2.52 MHz

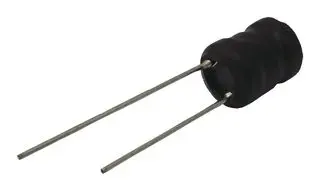

Bourns Inc. RLB0914-820KL	Radial Vertical Cylinder	1.28 A	10 %	125 °C	-40 C	82 µH			4 MHz	2.5 A		Ferrite	2.52 MHz	Through Hole	8.7 mm	0.343 in	Unshielded	0.512 "	13 mm	Drum Core Wirewound	230 mOhm		2.52 MHz 30
Bourns Inc. RLB0914-181KL	Radial Vertical Cylinder	0.87 A	10 %	125 °C	-40 C	180 µH			2.6 MHz	1.63 A	540 mOhm	Ferrite	0.796 MHz	Through Hole	8.7 mm	0.343 in	Unshielded	0.512 "	13 mm	Drum Core Wirewound			30 796 kHz
Bourns Inc. RLB0914-222KL	Radial Vertical Cylinder		10 %	125 °C	-40 C	2.2 mH						Ferrite	2.52 MHz	Through Hole	8.7 mm	0.343 in	Unshielded	0.512 "	13 mm	Drum Core Wirewound
Bourns Inc. RLB0914-390KL	Radial Vertical Cylinder	1.6 A	10 %	125 °C	-40 C	39 µH			7 MHz	3.4 A	130 mOhm	Ferrite	2.52 MHz	Through Hole	8.7 mm	0.343 in	Unshielded	0.512 "	13 mm	Drum Core Wirewound			2.52 MHz 30
Bourns Inc. RLB0914-101KL	Radial Vertical Cylinder	1.1 A	10 %	125 °C	-40 C	100 µH			3.5 MHz	2.1 A		Ferrite	0.796 MHz	Through Hole	8.7 mm	0.343 in	Unshielded	0.512 "	13 mm	Drum Core Wirewound	280 mOhm		30 796 kHz
Bourns Inc. RLB0914-3R3ML	Radial Vertical Cylinder	3.6 A	20 %	125 °C	-40 C	3.3 µH	7.96 MHz	20		11.3 A	27 mOhm	Ferrite	7.96 MHz	Through Hole	8.7 mm	0.343 in	Unshielded	0.512 "	13 mm	Drum Core Wirewound
Bourns Inc. RLB0914-271KL	Radial Vertical Cylinder	770 mA	10 %	125 °C	-40 C	270 µH		20	2.2 MHz	1.4 A		Ferrite	0.796 MHz	Through Hole	8.7 mm	0.343 in	Unshielded	0.512 "	13 mm	Drum Core Wirewound	680 mOhm	796 kHz
