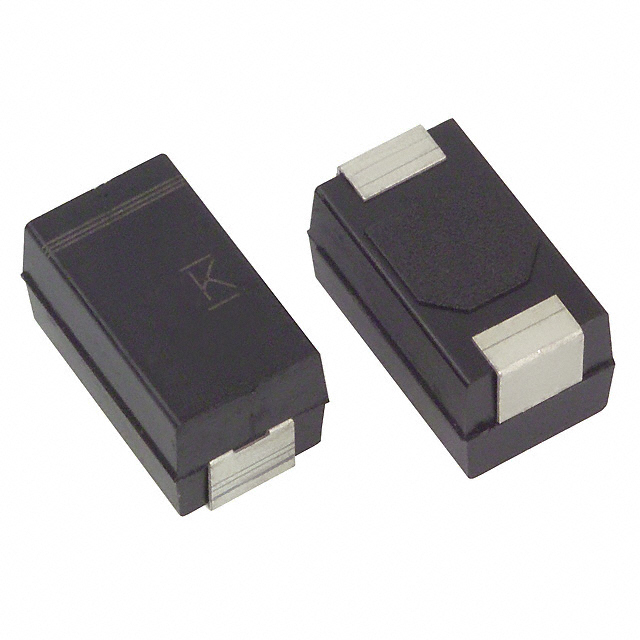

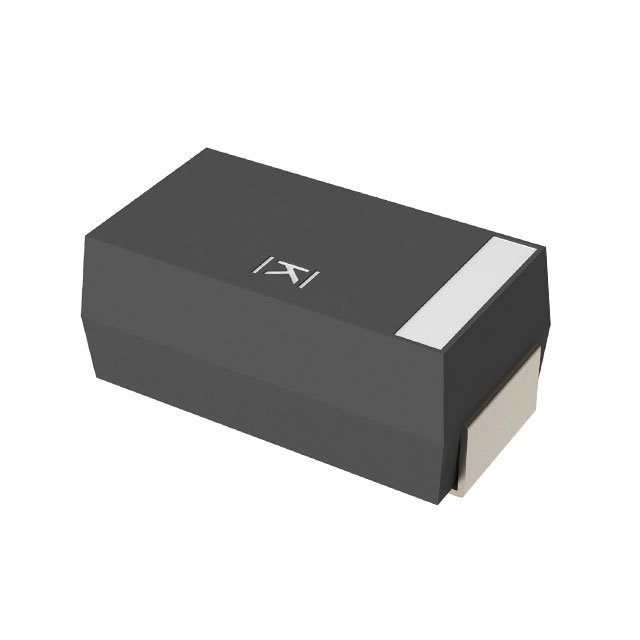

A700X Series
Manufacturer: KEMET
Beta
⌘K
CAP ALUM POLY 470UF 20% 2.5V SMD
| Part | ESR (Equivalent Series Resistance) | Capacitance | Voltage - Rated | Mounting Type | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Surface Mount Land Size [x] | Surface Mount Land Size [y] | Surface Mount Land Size [y] | Surface Mount Land Size [x] | Type | Ripple Current @ High Frequency | Operating Temperature [Min] | Operating Temperature [Max] | Lifetime @ Temp. | Tolerance | Package / Case | Applications | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KEMET | 15 mOhm | 470 µF | 2.5 V | Surface Mount | 0.169 in | 4.3 mm | 7.3 mm | 4.3 mm | 0.169 " | 0.287 " | Polymer | 3.9 A | -55 C | 125 °C | 2000 Hrs | 20 % | 2917 (7343 Metric) | General Purpose | 0.169 " | 7.3 mm | 0.287 " | 4.3 mm |
KEMET | 15 mOhm | 270 µF | 4 V | Surface Mount | 0.169 in | 4.3 mm | 7.3 mm | 4.3 mm | 0.169 " | 0.287 " | Polymer | 3.9 A | -55 C | 125 °C | 2000 Hrs | 20 % | 2917 (7343 Metric) | General Purpose | 0.169 " | 7.3 mm | 0.287 " | 4.3 mm |
 KEMET | 10 mOhm | 470 µF | 2.5 V | Surface Mount | 0.169 in | 4.3 mm | 7.3 mm | 4.3 mm | 0.169 " | 0.287 " | Polymer | 4.7 A | -55 C | 125 °C | 2000 Hrs | 20 % | 2917 (7343 Metric) | General Purpose | 0.169 " | 7.3 mm | 0.287 " | 4.3 mm |
KEMET | 15 mOhm | 100 µF | 10 V | Surface Mount | 0.169 in | 4.3 mm | 7.3 mm | 4.3 mm | 0.169 " | 0.287 " | Polymer | 3.9 A | -55 C | 125 °C | 2000 Hrs | 20 % | 2917 (7343 Metric) | General Purpose | 0.169 " | 7.3 mm | 0.287 " | 4.3 mm |
KEMET | 15 mOhm | 330 µF | 4 V | Surface Mount | 0.169 in | 4.3 mm | 7.3 mm | 4.3 mm | 0.169 " | 0.287 " | Polymer | 3.9 A | -55 C | 125 °C | 2000 Hrs | 20 % | 2917 (7343 Metric) | General Purpose | 0.169 " | 7.3 mm | 0.287 " | 4.3 mm |
KEMET | 4.5 mOhms | 560 µF | 2.5 V | Surface Mount | 0.169 in | 4.3 mm | 7.3 mm | 4.3 mm | 0.169 " | 0.287 " | Polymer | 7 A | -55 C | 125 °C | 2000 Hrs | 20 % | 2917 (7343 Metric) | General Purpose | 0.169 " | 7.3 mm | 0.287 " | 4.3 mm |
KEMET | 5 mOhm | 470 µF | 2 VDC | Surface Mount | 0.169 in | 4.3 mm | 7.3 mm | 4.3 mm | 0.169 " | 0.287 " | Polymer | 6.7 A | -55 C | 125 °C | 2000 Hrs | 20 % | 2917 (7343 Metric) | General Purpose | 0.169 " | 7.3 mm | 0.287 " | 4.3 mm |
 KEMET | 10 mOhm | 390 µF | 2 VDC | Surface Mount | 0.169 in | 4.3 mm | 7.3 mm | 4.3 mm | 0.169 " | 0.287 " | Polymer | 4.7 A | -55 C | 125 °C | 2000 Hrs | 20 % | 2917 (7343 Metric) | General Purpose | 0.169 " | 7.3 mm | 0.287 " | 4.3 mm |
KEMET | 15 mOhm | 330 µF | 2 VDC | Surface Mount | 0.169 in | 4.3 mm | 7.3 mm | 4.3 mm | 0.169 " | 0.287 " | Polymer | 3.9 A | -55 C | 125 °C | 2000 Hrs | 20 % | 2917 (7343 Metric) | General Purpose | 0.169 " | 7.3 mm | 0.287 " | 4.3 mm |
KEMET | 6 mOhms | 560 µF | 2.5 V | Surface Mount | 0.169 in | 4.3 mm | 7.3 mm | 4.3 mm | 0.169 " | 0.287 " | Polymer | 6.1 A | -55 C | 125 °C | 2000 Hrs | 20 % | 2917 (7343 Metric) | General Purpose | 0.169 " | 7.3 mm | 0.287 " | 4.3 mm |
