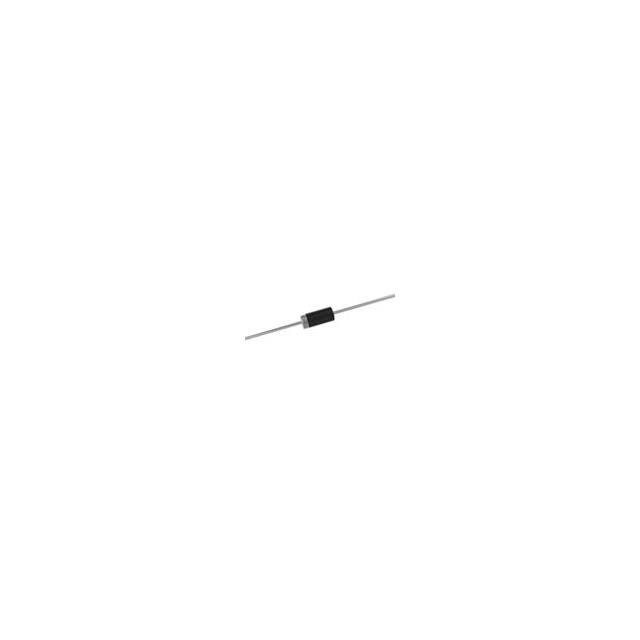

RL106 Series

Catalog

INTERFACE

Part	Speed	Speed	Current - Reverse Leakage @ Vr	Package / Case	Mounting Type	Supplier Device Package	Technology	Voltage - DC Reverse (Vr) (Max) [Max]	Voltage - Forward (Vf) (Max) @ If	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Capacitance @ Vr, F	Current - Average Rectified (Io)
Micro Commercial Components RL106GP-BP	Standard Recovery >500ns	200 mA	5 µA	Axial	Through Hole	A-405	Standard	800 V	1.1 V	150 °C	-55 °C	15 pF	1 A
Micro Commercial Components RL106-N-2-3-AP	Standard Recovery >500ns	200 mA	5 µA	Axial	Through Hole	A-405	Standard	800 V	1.1 V	150 °C	-55 °C	15 pF	1 A
Micro Commercial Components RL106-BP	Standard Recovery >500ns	200 mA	5 µA	Axial	Through Hole	A-405	Standard	800 V	1.1 V	150 °C	-55 °C	15 pF	1 A
