726-021 Series
Manufacturer: EDAC Inc.
Beta
⌘K

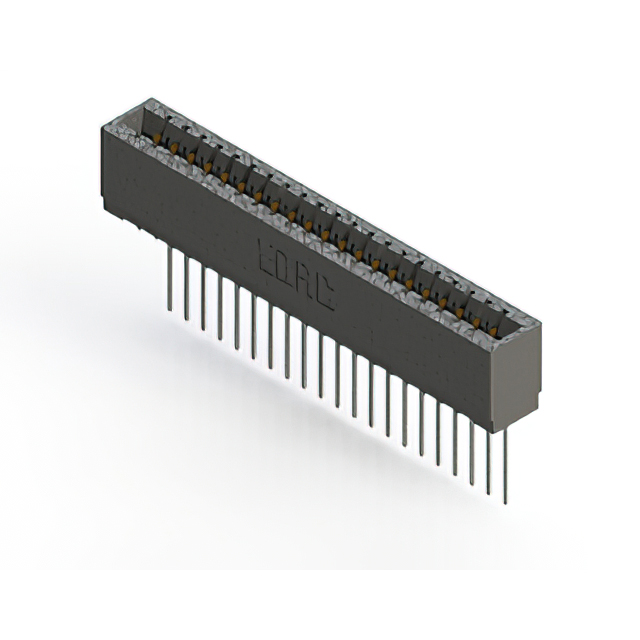

CONN EDGE SGL FMALE 21POS 0.125
| Part | Gender | Material - Insulation | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Mounting Type | Termination | Termination Rows | Number of Positions | Pitch [x] | Pitch [x] | Contact Type | Number of Rows | Contact Finish | Operating Temperature [Min] | Operating Temperature [Max] | Read Out | Contact Material | Contact Finish Thickness | Contact Finish Thickness | Card Type | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Female | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Press-Fit Wire Wrap | 1 | 21 | 0.125 in | 3.18 mm | Cantilever | 1 | Gold | -40 °C | 105 ░C | Single | Copper Alloy | 0.76 Ám | 30 Áin | Non Specified - Single Edge | Black |
