92417 Series

Catalog

CONN HEADER VERT 2POS

Part	Contact Type	Contact Shape	Fastening Type	Connector Type	Contact Length - Mating	Contact Length - Mating	Number of Positions	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material	Contact Length - Post [x]	Contact Length - Post	Material Flammability Rating	Overall Contact Length	Overall Contact Length	Voltage Rating	Current Rating (Amps)	Contact Finish - Post	Number of Rows	Insulation Height	Insulation Height	Mounting Type	Number of Positions Loaded	Shrouding	Insulation Color	Termination	Pitch - Mating	Pitch - Mating	Contact Finish - Mating

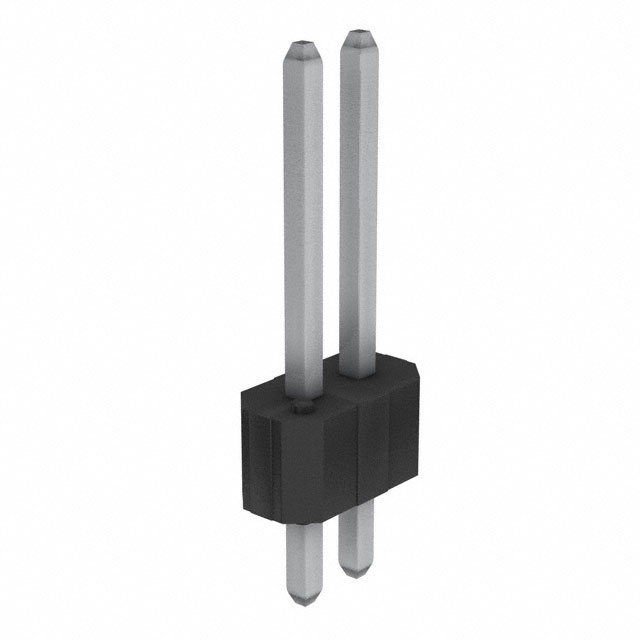

Amphenol ICC (FCI) 92417-402HLF	Male Pin	Square	Push-Pull	Header	8.13 mm	0.32 in	2	2.54 mm	0.1 in	2.54 çm	100 çin	Phosphor Bronze	0.11 in	2.79 mm	UL94 V-0	13.46 mm	0.53 in	110 VDC	5 A	Tin	2	0.1 in	2.54 mm	Through Hole	All	Unshrouded	Black	Solder
Amphenol ICC (FCI) 92417-166HLF	Male Pin	Square	Push-Pull	Header	8.13 mm	0.32 in	66	2.54 mm	0.1 in	0.76 Ám	30 Áin	Phosphor Bronze	0.11 in	2.79 mm	UL94 V-0	13.46 mm	0.53 in	110 VDC	5 A		2	0.1 in	2.54 mm	Through Hole	All	Unshrouded	Black	Solder	0.1 in	2.54 mm	Gold or Gold GXT™
Amphenol ICC (FCI) 92417-126HLF	Male Pin	Square	Push-Pull	Header	8.13 mm	0.32 in	26	2.54 mm	0.1 in	0.76 Ám	30 Áin	Phosphor Bronze	0.11 in	2.79 mm	UL94 V-0	13.46 mm	0.53 in	110 VDC	5 A		2	0.1 in	2.54 mm	Through Hole	All	Unshrouded	Black	Solder	0.1 in	2.54 mm	Gold or Gold GXT™
Amphenol ICC (FCI) 92417-424HLF	Male Pin	Square	Push-Pull	Header	8.13 mm	0.32 in	24	2.54 mm	0.1 in	2.54 çm	100 çin	Phosphor Bronze	0.11 in	2.79 mm	UL94 V-0	13.46 mm	0.53 in	110 VDC	5 A	Tin	2	0.1 in	2.54 mm	Through Hole	All	Unshrouded	Black	Solder	0.1 in	2.54 mm

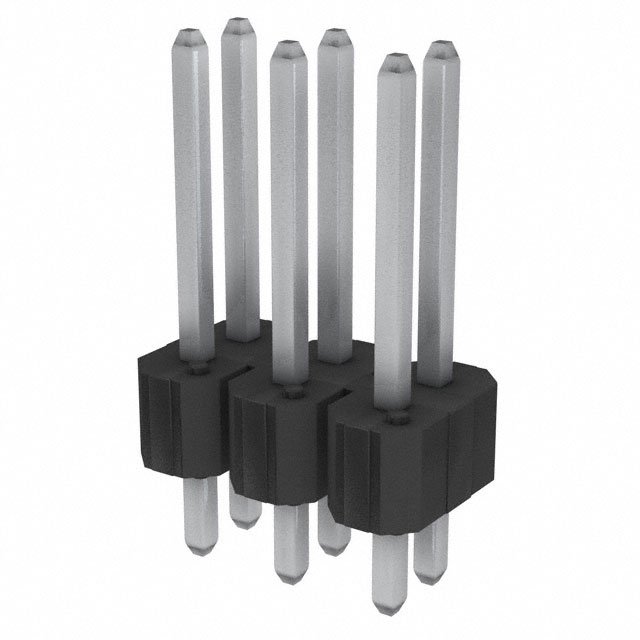

Amphenol ICC (FCI) 92417-406HLF	Male Pin	Square	Push-Pull	Header	8.13 mm	0.32 in	6	2.54 mm	0.1 in	2.54 çm	100 çin	Phosphor Bronze	0.11 in	2.79 mm	UL94 V-0	13.46 mm	0.53 in	110 VDC	5 A	Tin	2	0.1 in	2.54 mm	Through Hole	All	Unshrouded	Black	Solder	0.1 in	2.54 mm
Amphenol ICC (FCI) 92417-436HLF	Male Pin	Square	Push-Pull	Header	8.13 mm	0.32 in	36	2.54 mm	0.1 in	2.54 çm	100 çin	Phosphor Bronze	0.11 in	2.79 mm	UL94 V-0	13.46 mm	0.53 in	110 VDC	5 A	Tin	2	0.1 in	2.54 mm	Through Hole	All	Unshrouded	Black	Solder	0.1 in	2.54 mm
Amphenol ICC (FCI) 92417-452HLF	Male Pin	Square	Push-Pull	Header	8.13 mm	0.32 in	52	2.54 mm	0.1 in	2.54 çm	100 çin	Phosphor Bronze	0.11 in	2.79 mm	UL94 V-0	13.46 mm	0.53 in	110 VDC	5 A	Tin	2	0.1 in	2.54 mm	Through Hole	All	Unshrouded	Black	Solder	0.1 in	2.54 mm
Amphenol ICC (FCI) 92417-272HLF	Male Pin	Square	Push-Pull	Header	8.13 mm	0.32 in	72	2.54 mm	0.1 in	0.38 µm	15 µin	Phosphor Bronze	0.11 in	2.79 mm	UL94 V-0	13.46 mm	0.53 in	110 VDC	5 A		2	0.1 in	2.54 mm	Through Hole	All	Unshrouded	Black	Solder	0.1 in	2.54 mm	Gold or Gold GXT™
Amphenol ICC (FCI) 92417-154HLF	Male Pin	Square	Push-Pull	Header	8.13 mm	0.32 in	54	2.54 mm	0.1 in	0.76 Ám	30 Áin	Phosphor Bronze	0.11 in	2.79 mm	UL94 V-0	13.46 mm	0.53 in	110 VDC	5 A		2	0.1 in	2.54 mm	Through Hole	All	Unshrouded	Black	Solder	0.1 in	2.54 mm	Gold or Gold GXT™
Amphenol ICC (FCI) 92417-468HLF	Male Pin	Square	Push-Pull	Header	8.13 mm	0.32 in	68	2.54 mm	0.1 in	2.54 çm	100 çin	Phosphor Bronze	0.11 in	2.79 mm	UL94 V-0	13.46 mm	0.53 in	110 VDC	5 A	Tin	2	0.1 in	2.54 mm	Through Hole	All	Unshrouded	Black	Solder	0.1 in	2.54 mm
