629-5W5 Series
Manufacturer: EDAC Inc.
Beta
⌘K

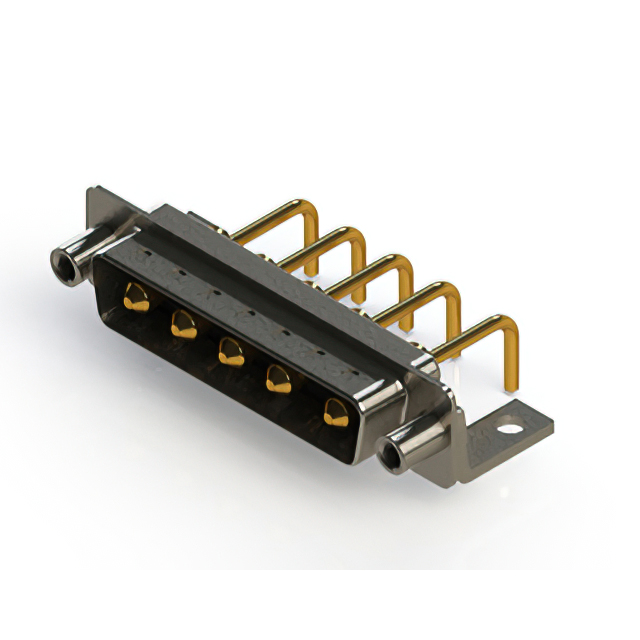

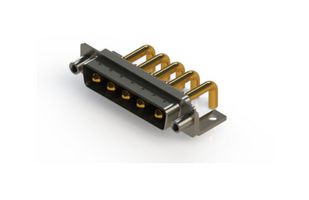

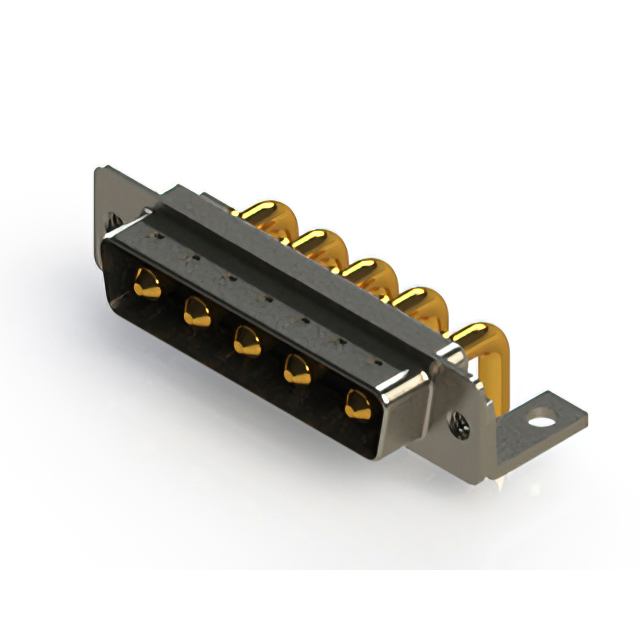

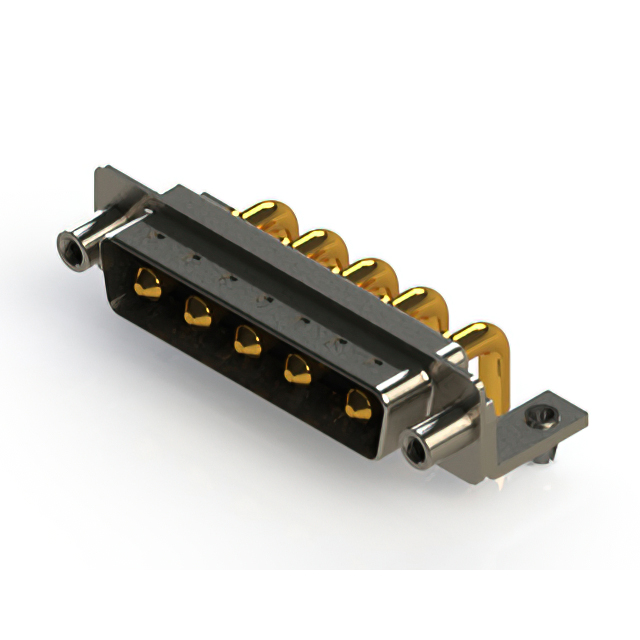

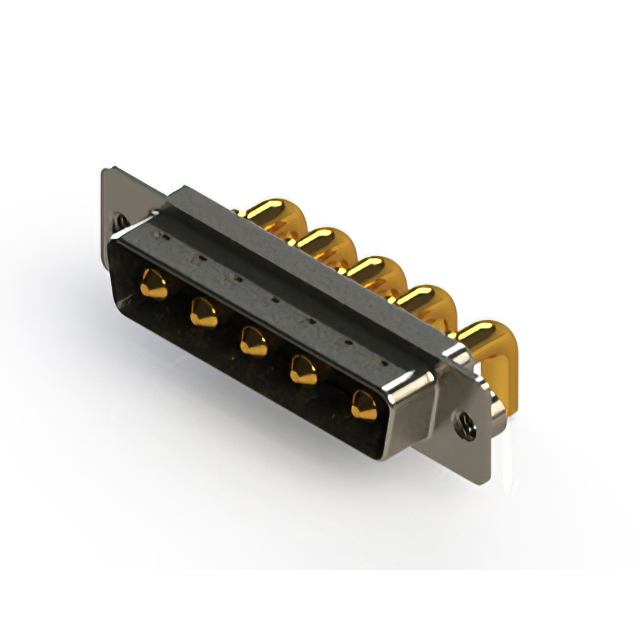

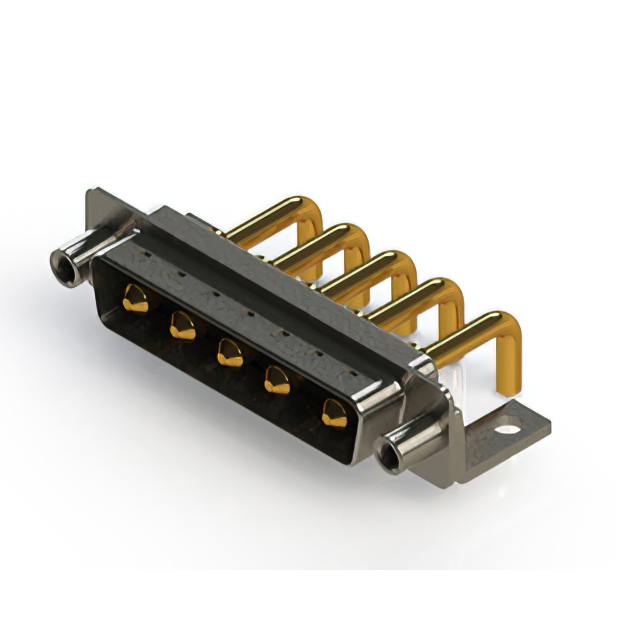

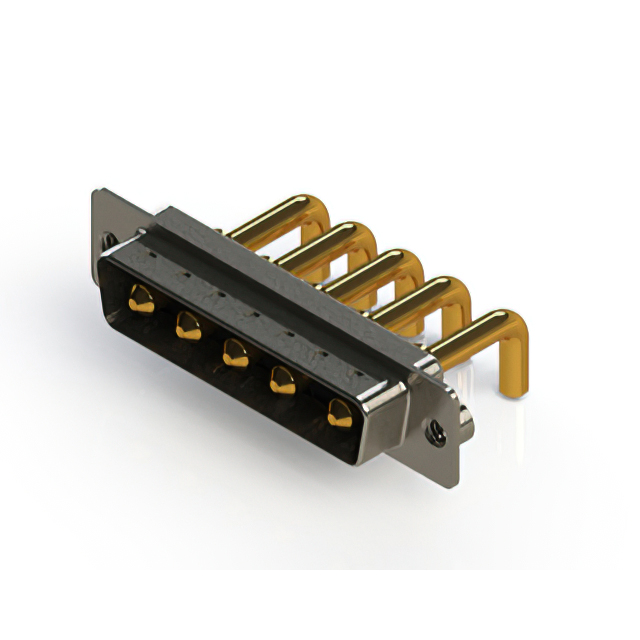

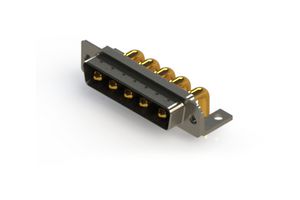

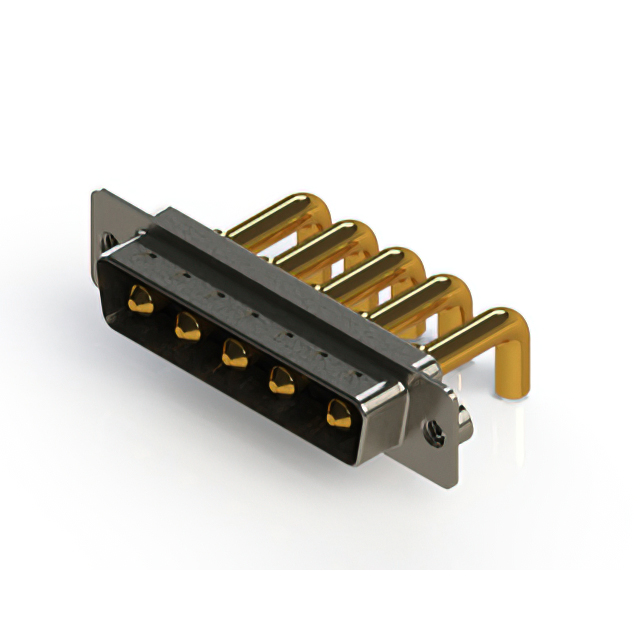

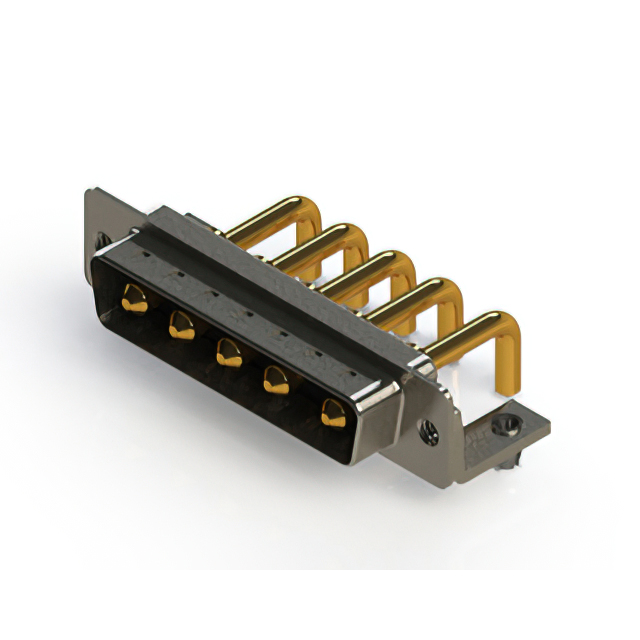

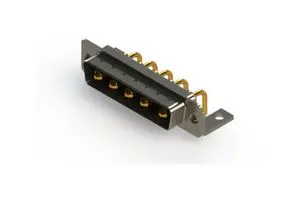

COMBINATION LAYOUT D SUB CONNECTOR, 629C SERIES, DB-5W5, PLUG, 5 CONTACTS, 5 POWER, SOLDER
| Part | Contact Material | Voltage Rating | Color | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Mounting Type | Contact Type | Contact Finish Thickness | Contact Finish Thickness | Shell Size, Connector Layout [x] | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout | Material Flammability Rating | Backset Spacing | Backset Spacing | Connector Style | Connector Type | Shell Material, Finish | Features | Number of Rows | Number of Positions | Termination | Flange Feature | Current Rating (Amps) | Contact Finish | Flange Feature | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Copper Alloy | 125 VDC | Black | -55 C | 125 °C | Polyester Thermoplastic | Right Angle Through Hole | Power | 30 Áin | 0.76 Ám | 3 | DB B | 5W5 | UL94 V-0 | 0.52 " | 13.2 mm | Combo D-Sub | Plug Male Pins | Nickel Plated Steel | Grounding Indents Mounting Brackets | 1 | 5 | Solder | Housing/Shell (M3) | 40 A | Gold | ||
 EDAC Inc. | Copper Alloy | 125 VDC | Black | -55 C | 125 °C | Polyester Thermoplastic | Right Angle Through Hole | Power | 3 | DB B | 5W5 | UL94 V-0 | 0.52 " | 13.2 mm | Combo D-Sub | Plug Male Pins | Nickel Plated Steel | Grounding Indents Mounting Brackets | 1 | 5 | Solder | Housing/Shell | 30 A | Gold | 4-40 | Flash | ||
 EDAC Inc. | Copper Alloy | 125 VDC | Black | -55 C | 125 °C | Polyester Thermoplastic | Right Angle Through Hole | Power | 30 Áin | 0.76 Ám | 3 | DB B | 5W5 | UL94 V-0 | 0.52 " | 13.2 mm | Combo D-Sub | Plug Male Pins | Grounding Indents Mounting Brackets | 1 | 5 | Solder | M3 | 10 A | Gold | |||
 EDAC Inc. | Copper Alloy | 125 VDC | Black | -55 C | 125 °C | Polyester Thermoplastic | Right Angle Through Hole | Power | 3 | DB B | 5W5 | UL94 V-0 | 0.52 " | 13.2 mm | Combo D-Sub | Plug Male Pins | Grounding Indents | 1 | 5 | Solder | Board Side (M3) | 40 A | Gold | Flash | ||||
 EDAC Inc. | Copper Alloy | 125 VDC | Black | -55 C | 125 °C | Polyester Thermoplastic | Right Angle Through Hole | Power | 3 | DB B | 5W5 | UL94 V-0 | 0.52 " | 13.2 mm | Combo D-Sub | Plug Male Pins | Nickel Plated Steel | Board Lock Grounding Indents Mounting Brackets | 1 | 5 | Solder | 4-40 | 30 A | Gold | Flash | |||
 EDAC Inc. | Copper Alloy | 125 VDC | Black | -55 C | 125 °C | Polyester Thermoplastic | Right Angle Through Hole | Power | 30 Áin | 0.76 Ám | 3 | DB B | 5W5 | UL94 V-0 | 0.52 " | 13.2 mm | Combo D-Sub | Plug Male Pins | Nickel Plated Steel | Board Lock Grounding Indents Mounting Brackets | 1 | 5 | Solder | Housing/Shell | 20 A | Gold | 4-40 | |
 EDAC Inc. | Copper Alloy | 125 VDC | Black | -55 C | 125 °C | Polyester Thermoplastic | Right Angle Through Hole | Power | 3 | DB B | 5W5 | UL94 V-0 | 0.52 " | 13.2 mm | Combo D-Sub | Plug Male Pins | Grounding Indents | 1 | 5 | Solder | Board Side (M3) | 30 A | Gold | Flash | ||||
 EDAC Inc. | Copper Alloy | 125 VDC | Black | -55 C | 125 °C | Polyester Thermoplastic | Right Angle Through Hole | Power | 30 Áin | 0.76 Ám | 3 | DB B | 5W5 | UL94 V-0 | 0.52 " | 13.2 mm | Combo D-Sub | Plug Male Pins | Grounding Indents | 1 | 5 | Solder | Board Side (M3) | 40 A | Gold | |||
 EDAC Inc. | Copper Alloy | 125 VDC | Black | -55 C | 125 °C | Polyester Thermoplastic | Right Angle Through Hole | Power | 30 Áin | 0.76 Ám | 3 | DB B | 5W5 | UL94 V-0 | 0.52 " | 13.2 mm | Combo D-Sub | Plug Male Pins | Nickel Plated Steel | Grounding Indents Mounting Brackets | 1 | 5 | Solder | M3 | 20 A | Gold | ||
 EDAC Inc. | Copper Alloy | 125 VDC | Black | -55 C | 125 °C | Polyester Thermoplastic | Right Angle Through Hole | Power | 30 Áin | 0.76 Ám | 3 | DB B | 5W5 | UL94 V-0 | 0.52 " | 13.2 mm | Combo D-Sub | Plug Male Pins | Grounding Indents Mounting Brackets | 1 | 5 | Solder | Housing/Shell (M3) | 10 A | Gold |
