MAXM17632 Series
Manufacturer: Analog Devices Inc./Maxim Integrated
Beta
⌘K
SWITCHING VOLTAGE REGULATORS 4.5V TO 36V INPUT, 2A, ADJUSTABLE OUTPUT
| Part | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Type | Supplier Device Package | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case | Number of Outputs | Mounting Type | Voltage - Input (Max) [Max] | Features | Applications | Voltage - Input (Min) [Min] | Voltage - Output 1 [Max] | Voltage - Output 1 [Min] | Current - Output (Max) [Max] | Supplied Contents | Board Type | Outputs and Type | Outputs and Type | Current - Output | Utilized IC / Part | Voltage - Output | Contents | Main Purpose | Voltage - Input [Min] | Voltage - Input [Max] | Regulator Topology | Frequency - Switching |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Analog Devices Inc./Maxim Integrated | 1.7 mm | 0.06 in | 3 mm | 0.12 in | 3 mm | 0.12 in | Non-Isolated PoL Module | 16-eMGA (3x3) | 125 °C | -40 C | 16-SMD Module | 1 | Surface Mount | 36 V | Adjustable Output | ITE (Commercial) | 4.5 V | 12 V | 0.9 V | 1 A | |||||||||||||

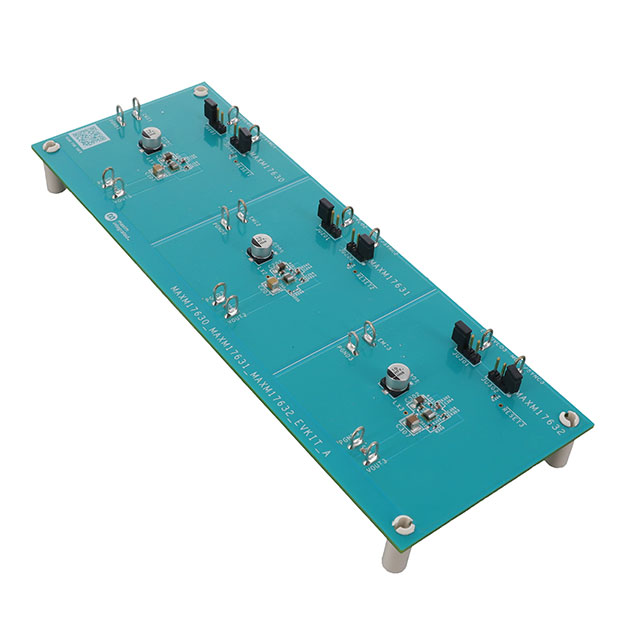

 Analog Devices Inc./Maxim Integrated | Board(s) | Fully Populated | 1 | 1 Non-Isolated Output Non-Isolated | 1 A | MAXM17632 | 12 V | Board(s) | DC/DC Step Down | 20 V | 36 V | Buck | 2.15 MHz | ||||||||||||||||||||
Analog Devices Inc./Maxim Integrated | 1.7 mm | 0.06 in | 3 mm | 0.12 in | 3 mm | 0.12 in | Non-Isolated PoL Module | 16-eMGA (3x3) | 125 °C | -40 C | 16-SMD Module | 1 | Surface Mount | 36 V | ITE (Commercial) | 4.5 V | 12 V | 0.9 V | 1 A |
