63205 Series

Catalog

PELTIER MOD CP10,127,08,L1,W4.5

Part	Operating Temperature	Features	Resistance	Delta Tmax @ Th	Qmax @ Th	Size / Dimension [x]	Size / Dimension [y]	Height [z]	Voltage - Max [Max]	Current - Max [Max]
Laird Thermal Systems, Inc. 63205-501	80 °C	Lead Wires Non-Sealed	5.3 Ohms	68 °C	21.4 W	29.72 mm	29.72 mm	3.99 mm	14.5 V	2.5 A

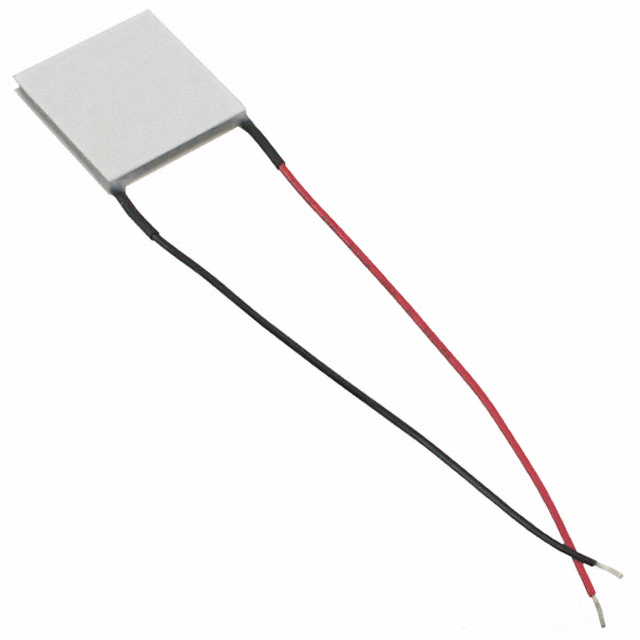

Laird Thermal Systems, Inc. 63205-510	80 °C	Lead Wires Sealed - Silicone RTV	5.3 Ohms	68 °C	21.4 W	29.72 mm	29.72 mm	3.99 mm	14.5 V	2.5 A
