2351885 Series

Catalog

6POS TB HDR 180 DEG PITCH 5.0&TL

Part	Current - UL	Mounting Type	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Color	Contact Material	Type	Pitch [x]	Pitch [x]	Header Orientation	Contact Tail Length	Contact Tail Length	Voltage - UL	Contact Mating Finish	Insulation Height	Insulation Height	Termination Style	Number of Positions	Number of Levels	Positions Per Level

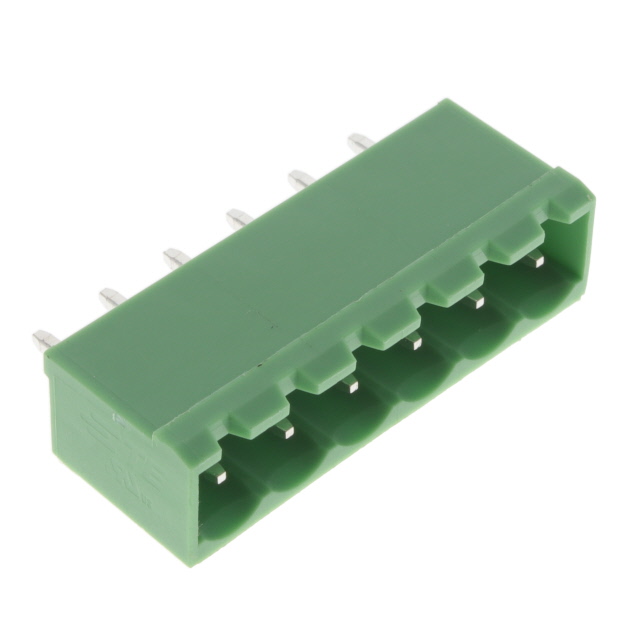

TE Connectivity Raychem Cable Protection 2351885-6	16 A	Through Hole	UL94 V-0	-40 °C	105 ░C	Green	Copper Alloy	Header Male Pins Shrouded (4 Side)	5 mm	0.197 in	Vertical	4.5 mm	0.177 in	300 V	Tin	0.472 in	12 mm	Solder	6	1	6

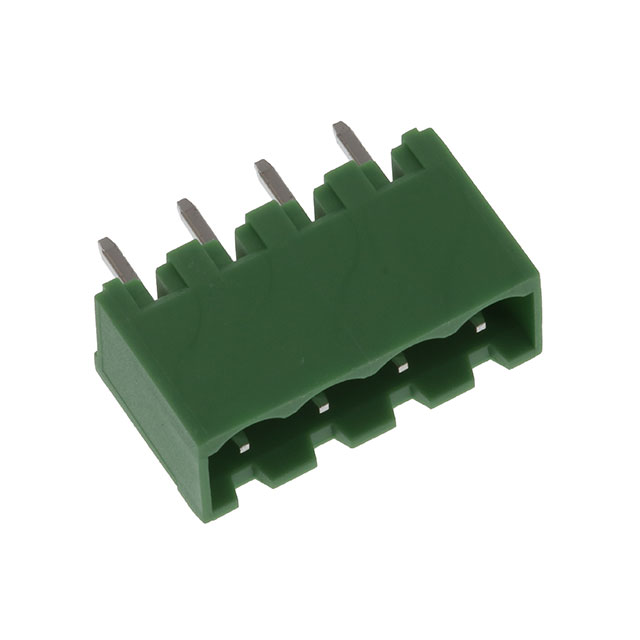

TE Connectivity Raychem Cable Protection 2351885-4	16 A	Through Hole	UL94 V-0	-40 °C	105 ░C	Green	Copper Alloy	Header Male Pins Shrouded (4 Side)	5 mm	0.197 in	Vertical	4.5 mm	0.177 in	300 V	Tin	0.472 in	12 mm	Solder	4	1	4

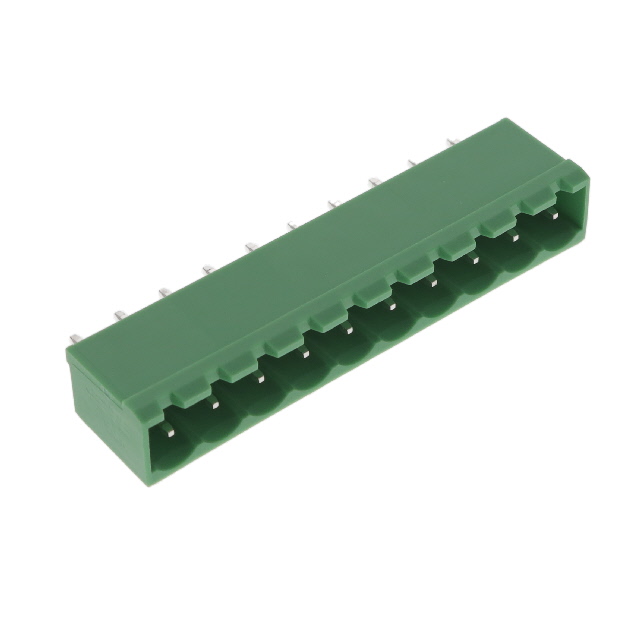

TE Connectivity Raychem Cable Protection 1-2351885-0	16 A	Through Hole	UL94 V-0	-40 °C	105 ░C	Green	Copper Alloy	Header Male Pins Shrouded (4 Side)	5 mm	0.197 in	Vertical	4.5 mm	0.177 in	300 V	Tin	0.472 in	12 mm	Solder	10	1	10

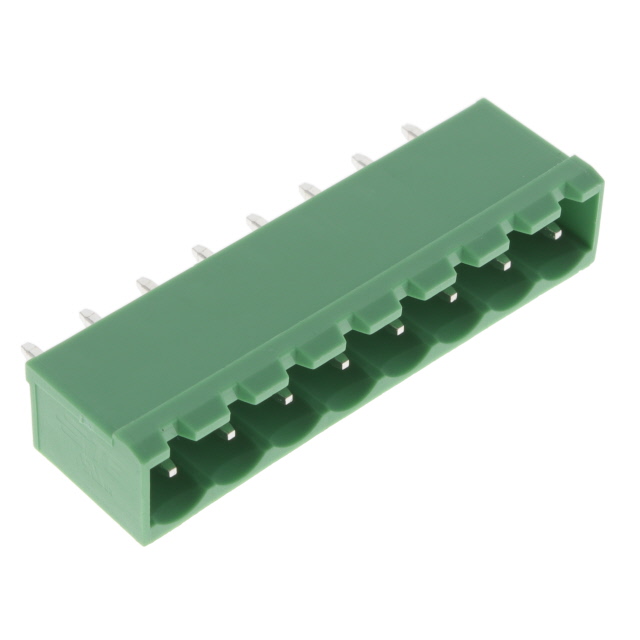

TE Connectivity Raychem Cable Protection 2351885-8	16 A	Through Hole	UL94 V-0	-40 °C	105 ░C	Green	Copper Alloy	Header Male Pins Shrouded (4 Side)	5 mm	0.197 in	Vertical	4.5 mm	0.177 in	300 V	Tin	0.472 in	12 mm	Solder	8	1	8
