WI-M-8 Series

Catalog

TEST LEAD WIRE, 8AWG, RED, 7.62M ROHS COMPLIANT: YES

Part	Conductor Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket Color	Length [x]	Length [x]	Wire Gauge	Cable Type	Voltage	Length	Length
Mueller Electric Co WI-M-8-25-2	Copper Tinned	0.236 "	5.99 mm	Red	7.62 m	25 ft	8 AWG	Test Lead	1100 V

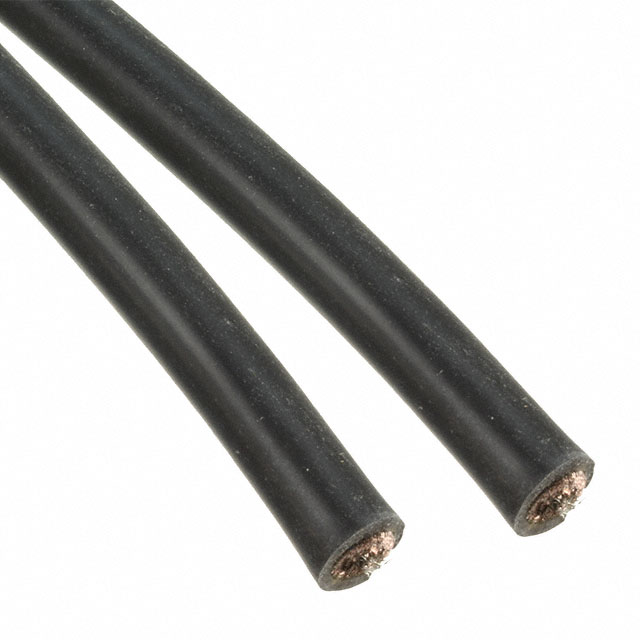

Mueller Electric Co WI-M-8-10-0	Copper Tinned	0.236 "	5.99 mm	Black			8 AWG	Test Lead	1100 V	3.05 m	10 ft
Mueller Electric Co WI-M-8-10-2	Copper Tinned	0.236 "	5.99 mm	Red			8 AWG	Test Lead	1100 V	3.05 m	10 ft

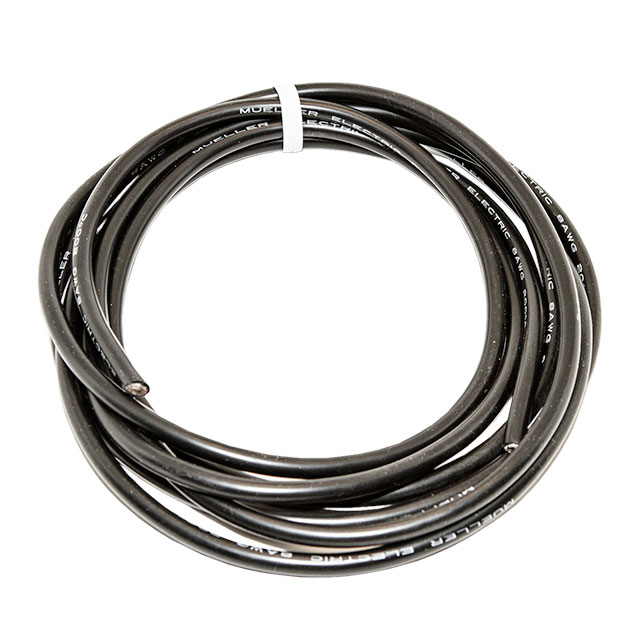

Mueller Electric Co WI-M-8-25-0	Copper Tinned	0.236 "	5.99 mm	Black	7.62 m	25 ft	8 AWG	Test Lead	1100 V
Mueller Electric Co WI-M-8-100-2	Copper Tinned	0.236 "	5.99 mm	Red	30.5 m	100 ft	8 AWG	Test Lead	1100 V
Mueller Electric Co WI-M-8-50-0	Copper Tinned	0.236 "	5.99 mm	Black			8 AWG	Test Lead	1100 V	15.24 m	50 ft
Mueller Electric Co WI-M-8-50-2	Copper Tinned	0.236 "	5.99 mm	Red			8 AWG	Test Lead	1100 V	15.24 m	50 ft
Mueller Electric Co WI-M-8-100-0	Copper Tinned	0.236 "	5.99 mm	Black	30.5 m	100 ft	8 AWG	Test Lead	1100 V
