2216 Series
Manufacturer: Oupiin
Beta
⌘K

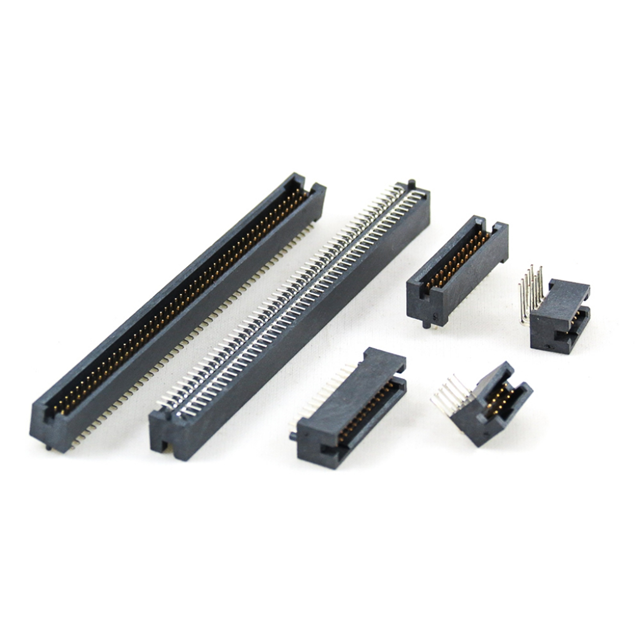

BOX HEADER, 10 PIN, RIGHT ANGLE,
| Part | Contact Finish Thickness - Post | Insulation Material | Contact Finish - Mating | Number of Rows [custom] | Termination | Mounting Type | Material Flammability Rating | Contact Finish - Post | Number of Positions | Shrouding | Pitch - Mating | Pitch - Mating | Contact Shape | Operating Temperature [Min] | Operating Temperature [Max] | Contact Type | Connector Type | Contact Finish Thickness - Mating | Insulation Height | Insulation Height | Contact Material | Row Spacing - Mating | Row Spacing - Mating | Number of Positions Loaded | Contact Length - Post | Contact Length - Post | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Oupiin | Flash | Plastic Thermoplastic | Gold | 2 | Solder | Right Angle Through Hole | UL94 V-0 | Gold | 10 | Shrouded - 4 Wall | 1.27 mm | 0.05 in | Square | -65 ░C | 125 °C | Male Pin | Header | Flash | 5.65 mm | 0.222 in | Brass | 0.05 in | 1.27 mm | All | 1.91 mm | 0.075 in | Push-Pull |
