HFW20R Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K

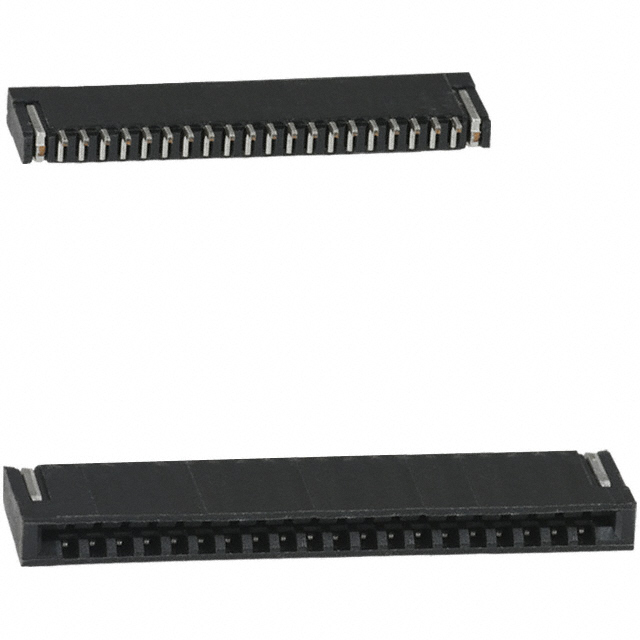

CONN FPC BOTTOM 20POS 1MM R/A
| Part | Termination | Contact Finish | Housing Material | Features | Cable End Type | Flat Flex Type | Mating Cycles | Housing Color | Pitch [x] | Pitch [x] | Operating Temperature [Max] | Operating Temperature [Min] | Connector/Contact Type | Number of Positions | Contact Material | Mounting Type | Voltage Rating | Height Above Board | Height Above Board | FFC, FCB Thickness | Material Flammability Rating | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol ICC (FCI) | Solder | Gold | Liquid Crystal Polymer (LCP) Halogen Free | Solder Retention | Tapered | FPC | 30 | Black | 0.039 in | 1 mm | 105 ░C | -55 °C | Contacts Bottom | 20 | Phosphor Bronze | Surface Mount Right Angle | 100 V | 1.9 mm | 0.075 " | 0.3 mm | UL94 V-0 | |
 Amphenol ICC (FCI) | Solder | Tin | Glass Filled Nylon 6T Polyamide (PA6T) | Straight Tapered | FFC FPC | 30 | Black | 0.039 in | 1 mm | 105 ░C | -55 °C | Contacts Top | 20 | Phosphor Bronze | Surface Mount Right Angle | 100 V | 1.9 mm | 0.075 " | 0.3 mm | UL94 V-0 | ||
Amphenol ICC (FCI) | Solder | Gold | Glass Filled Halogen Free Nylon 6T Polyamide (PA6T) | Tapered | FPC | 30 | Black | 0.039 in | 1 mm | 105 ░C | -55 °C | Contacts Bottom | 20 | Phosphor Bronze | Surface Mount Right Angle | 100 V | 1.9 mm | 0.075 " | 0.3 mm | UL94 V-0 | ||
Amphenol ICC (FCI) | Solder | Tin | Thermoplastic Glass Filled | Solder Retention | Straight Tapered | FFC FPC | 30 | Black | 0.039 in | 1 mm | 105 ░C | -55 °C | Contacts Top | 20 | Phosphor Bronze | Surface Mount Right Angle | 50 V | 3.1 mm | 0.122 in | 0.3 mm | UL94 V-0 | 0.5 A |
