R18025 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

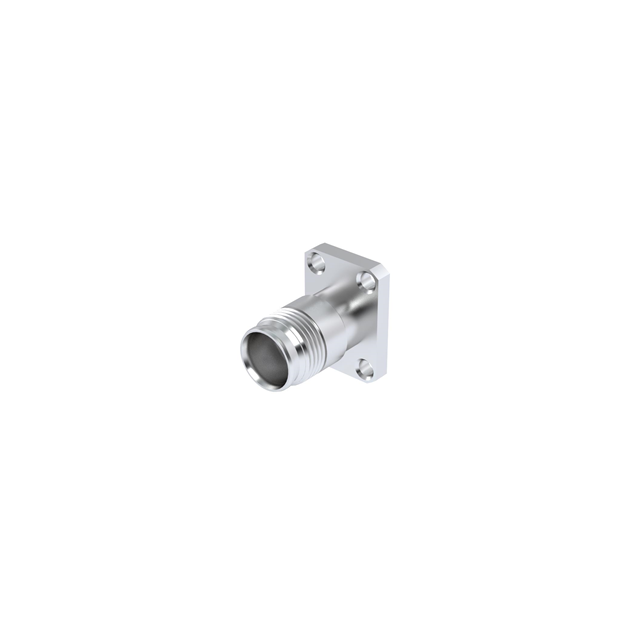

NEX10 F STR RECT SD.141 C50
| Part | Voltage Rating | Dielectric Material | Body Material | Center Contact Plating | Operating Temperature [Min] | Operating Temperature [Max] | Connector Style | Mounting Type | Center Contact Material | Connector Type | Frequency - Max [Max] | Fastening Type | Number of Ports | Contact Termination | Impedance | Mounting Feature | Shield Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | 500 V | Polytetrafluoroethylene (PTFE) | Brass | Silver | -55 C | 125 °C | NEX10 | Panel Mount | Beryllium Copper | Female Socket Jack | 20 GHz | Threaded | 1 | Solder | 50 Ohms | Flange | Solder |
