9829 Series
Manufacturer: Belden Inc.
Beta
⌘K

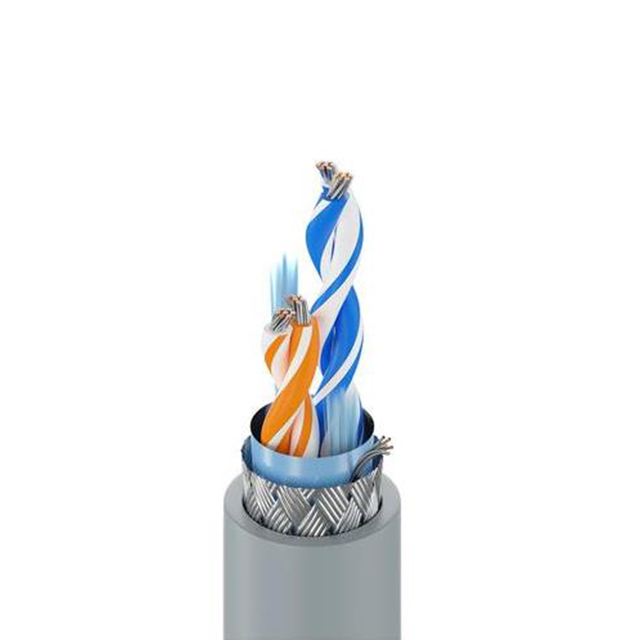

MULTI-PAIR 4CON 24AWG CHROM
| Part | Shield Coverage | Shield Material | Operating Temperature [Max] | Operating Temperature [Min] | Ratings | Jacket (Insulation) Material | Length [x] | Length [x] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Strand [custom] | Conductor Strand [custom] | Conductor Insulation | Cable Type | Number of Conductors | Wire Gauge | Jacket Color | Shield Type | Features | Conductor Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Usage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 65 % 100 % | Aluminum Copper Tinned | 80 °C | -30 ░C | UL Style 2919 | Poly-Vinyl Chloride (PVC) | 100 ft | 30.5 m | 0.035 in | 0.889 mm | 7 | 32 AWG | Polyethylene (PE) | Multi-Pair | 4 | 24 AWG | Chrome | Braid Foil | Drain Wire | Copper Tinned | 7.39 mm | 0.291 in | Computer |
Belden Inc. | 65 % 100 % | Aluminum Copper Tinned | 80 °C | -30 ░C | UL Style 2919 | Poly-Vinyl Chloride (PVC) | 0.035 in | 0.889 mm | 7 | 32 AWG | Polyethylene (PE) | Multi-Pair | 4 | 24 AWG | Chrome | Braid Foil | Drain Wire | Copper Tinned | 7.39 mm | 0.291 in | Computer |
