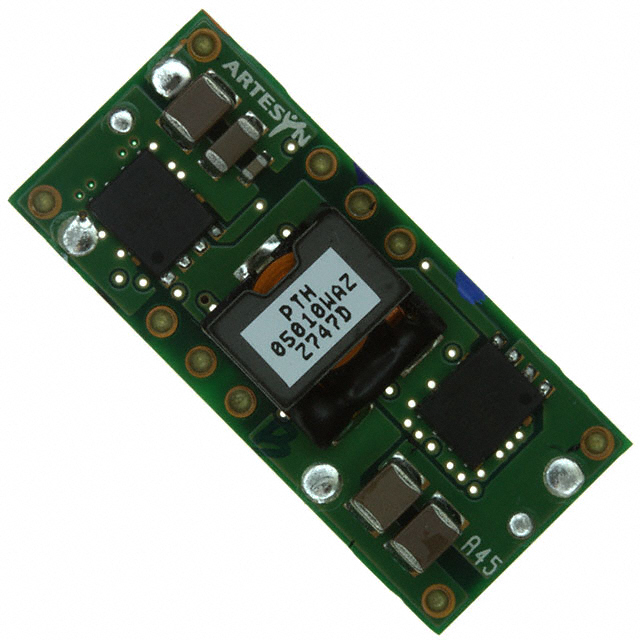

PTH05010 Series
Manufacturer: ARTESYN / Advanced Energy
Beta
⌘K
DC DC CONVERTER 0.8-3.6V 54W
| Part | Type | Features | Efficiency | Power (Watts) | Current - Output (Max) [Max] | Voltage - Output 1 [Max] | Voltage - Output 1 [Min] | Voltage - Input (Max) [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Input (Min) [Min] | Package / Case | Mounting Type | Number of Outputs | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ARTESYN / Advanced Energy | Non-Isolated PoL Module | OTP Remote On/Off SCP UVLO | 95 % | 54 W | 15 A | 3.6 V | 0.8 V | 5.5 V | 85 °C | -40 C | 4.5 V | 10-SMD Module | Surface Mount | 1 | 8.9 mm | 0.62 in | 1.37 in | 0.35 in | 34.8 mm | 15.7 mm | ITE (Commercial) |
