LPC55S69 Series
Manufacturer: Freescale Semiconductor - NXP
Beta
⌘K
IC MCU 32BIT 640KB FLSH 100HLQFP
| Part | Core Size [custom] | Core Processor | Number of I/O | Speed | Oscillator Type | Package / Case | RAM Size | Voltage - Supply (Vcc/Vdd) [Min] | Voltage - Supply (Vcc/Vdd) [Max] | Program Memory Type | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Data Converters [custom] | Data Converters [custom] | Program Memory Size | Supplier Device Package | Peripherals | Connectivity | Data Converters | Utilized IC / Part | Interconnect System | Contents | Board Type | Platform | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

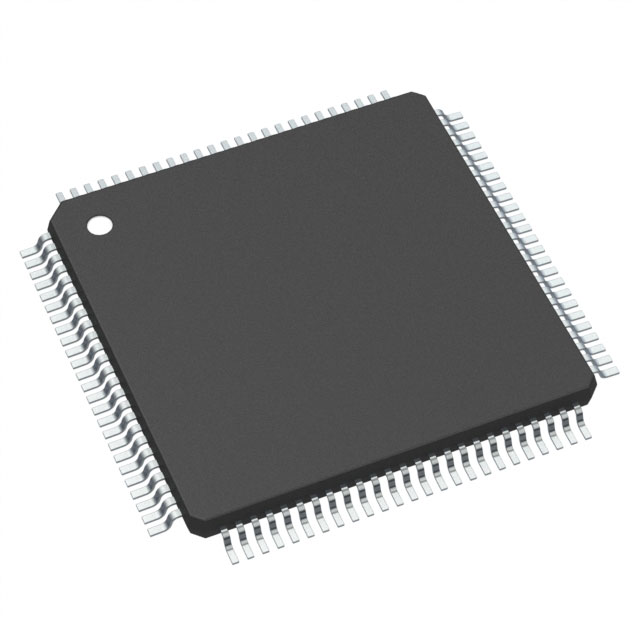

 Freescale Semiconductor - NXP | 32-Bit Dual-Core | ARM® Cortex®-M33 | 64 | 150 MHz | Internal | 100-LQFP Exposed Pad | 320 K | 1.8 V | 3.6 V | FLASH | 105 °C | -40 °C | Surface Mount | 10 channels | 16 | 640 KB | 100-HLQFP (14x14) | Brown-out Detect/Reset DMA I2S POR PWM RNG WDT | Flexcomm I2C MMC/SD/SDIO SPI UART/USART USB | |||||||
Freescale Semiconductor - NXP | 32-Bit Dual-Core | ARM® Cortex®-M33 | 36 | 150 MHz | Internal | 64-TQFP Exposed Pad | 320 K | 1.8 V | 3.6 V | FLASH | 105 °C | -40 °C | Surface Mount | 640 KB | 64-HTQFP (10x10) | Brown-out Detect/Reset DMA I2S POR PWM RNG WDT | Flexcomm I2C MMC/SD/SDIO SPI UART/USART USB | A/D 10x16b SAR | ||||||||

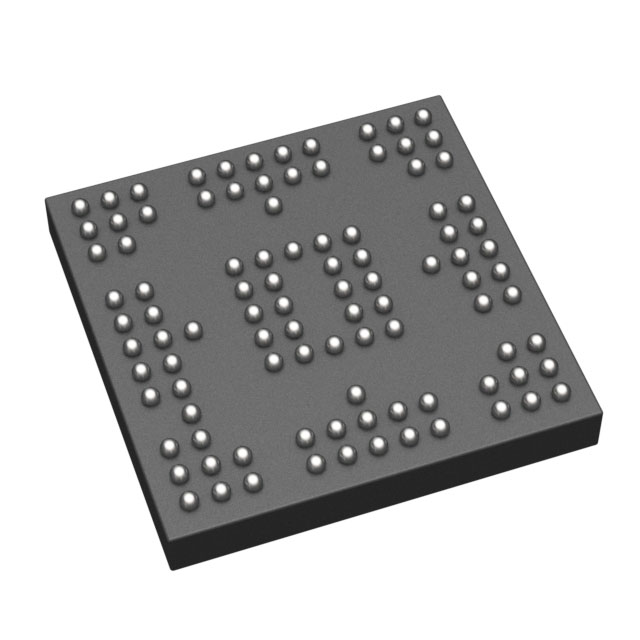

Freescale Semiconductor - NXP | 32-Bit Dual-Core | ARM® Cortex®-M33 | 64 | 150 MHz | Internal | 98-VFBGA | 320 K | 1.8 V | 3.6 V | FLASH | 105 °C | -40 °C | Surface Mount | 640 KB | 98-VFBGA (7x7) | Brown-out Detect/Reset DMA I2S POR PWM RNG WDT | Flexcomm I2C MMC/SD/SDIO SPI UART/USART USB | A/D 10x16b SAR | ||||||||
Freescale Semiconductor - NXP | 32-Bit Dual-Core | ARM® Cortex®-M33 | 36 | 150 MHz | Internal | 64-TQFP Exposed Pad | 320 K | 1.8 V | 3.6 V | FLASH | 105 °C | -40 °C | Surface Mount | 640 KB | 64-HTQFP (10x10) | Brown-out Detect/Reset DMA I2S POR PWM RNG WDT | Flexcomm I2C MMC/SD/SDIO SPI UART/USART USB | A/D 10x16b SAR | ||||||||
 Freescale Semiconductor - NXP | 32-Bit Dual-Core | ARM® Cortex®-M33 | 36 | 150 MHz | Internal | 64-TQFP Exposed Pad | 320 K | 1.8 V | 3.6 V | FLASH | 105 °C | -40 °C | Surface Mount | 10 channels | 16 | 640 KB | 64-HTQFP (10x10) | Brown-out Detect/Reset DMA I2S POR PWM RNG WDT | Flexcomm I2C MMC/SD/SDIO SPI UART/USART USB | |||||||
Freescale Semiconductor - NXP | 32-Bit Dual-Core | ARM® Cortex®-M33 | 64 | 150 MHz | Internal | 100-LQFP Exposed Pad | 320 K | 1.8 V | 3.6 V | FLASH | 105 °C | -40 °C | Surface Mount | 10 channels | 16 | 640 KB | 100-HLQFP (14x14) | Brown-out Detect/Reset DMA I2S POR PWM RNG WDT | Flexcomm I2C MMC/SD/SDIO SPI UART/USART USB | |||||||
 Freescale Semiconductor - NXP | 32-Bit Dual-Core | ARM® Cortex®-M33 | 64 | 150 MHz | Internal | 98-VFBGA | 320 K | 1.8 V | 3.6 V | FLASH | 105 °C | -40 °C | Surface Mount | 640 KB | 98-VFBGA (7x7) | Brown-out Detect/Reset DMA I2S POR PWM RNG WDT | Flexcomm I2C MMC/SD/SDIO SPI UART/USART USB | A/D 10x16b SAR | ||||||||

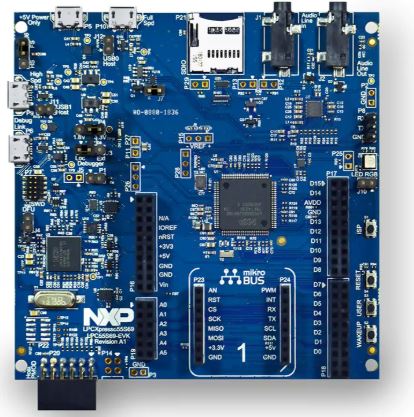

 Freescale Semiconductor - NXP | ARM® Cortex®-M33 | Fixed | LPC55S6x | Arduino R3 Shield mikroBUS Click Pmod | Board(s) | Evaluation Platform | LPCXpresso™ | MCU 32-Bit | ||||||||||||||||||
Freescale Semiconductor - NXP | 32-Bit Dual-Core | ARM® Cortex®-M33 | 64 | 150 MHz | Internal | 100-LQFP Exposed Pad | 320 K | 1.8 V | 3.6 V | FLASH | 105 °C | -40 °C | Surface Mount | 640 KB | 100-HLQFP (14x14) | Brown-out Detect/Reset DMA I2S POR PWM RNG WDT | Flexcomm I2C MMC/SD/SDIO SPI UART/USART USB | A/D 10x16b SAR |
