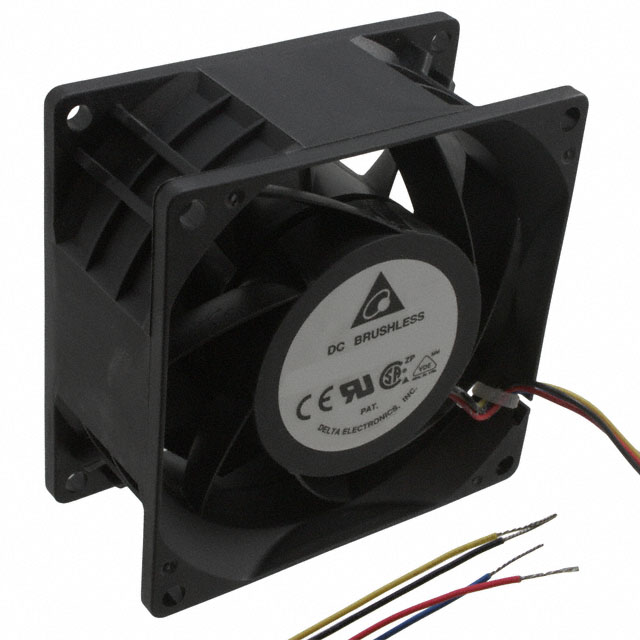

PFB0812 Series

Catalog

FAN AXIAL 80X38MM 12VDC WIRE

Part	Voltage Range [Min]	Voltage Range [Max]	Lifetime @ Temp.	Material - Frame	Material - Blade	Current Rating (Amps)	Static Pressure	Static Pressure	Width [y]	Voltage - Rated	Termination	Power (Watts)	Approval Agency	RPM	Bearing Type	Noise	Size / Dimension [z]	Size / Dimension [x]	Fan Type	Air Flow	Air Flow	Operating Temperature [Min]	Operating Temperature [Max]	Weight	Weight	Ingress Protection	Features

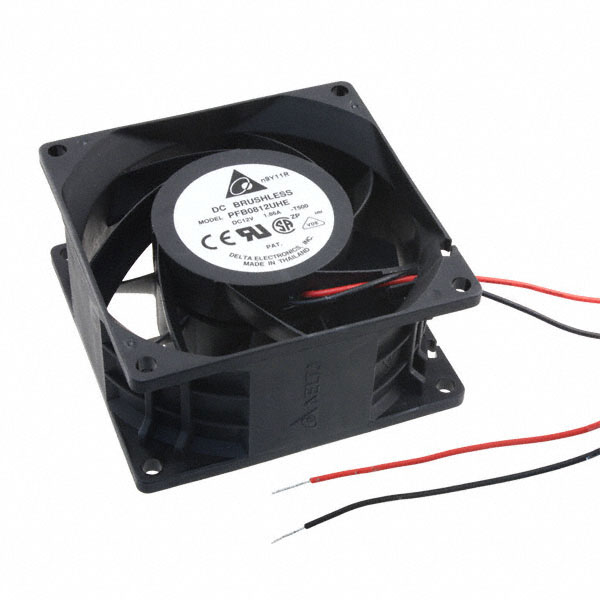

Delta Electronics PFB0812UHE-T500	7 V	13.2 VDC	40 °C 50000 Hrs	Plastic	Plastic	1.55 A	340.8 Pa	1.368 in H2O	38 mm	12 VDC	2 Wire Leads	18.6 W	CE CSA UL VDE	7500 RPM	Ball	61 dB(A)	80 mm	80 mm	Tubeaxial	3 m³/min	107.3 CFM	-10 °C	60 °C	0.441 lb	200.03 g	IP55 - Dust Protected Water Resistant

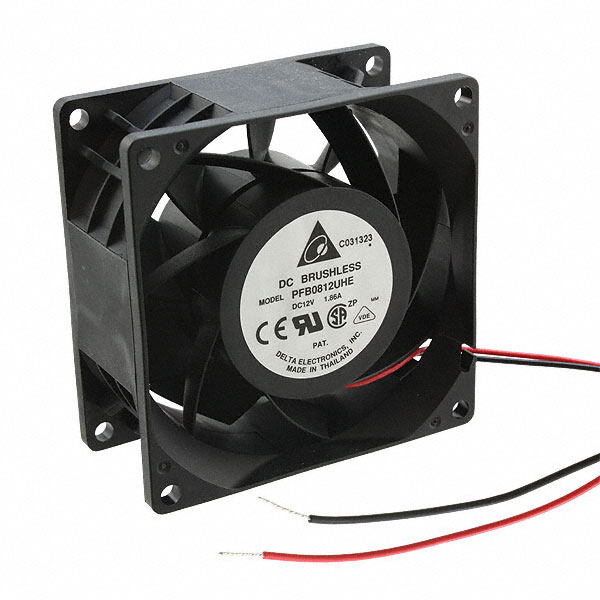

Delta Electronics PFB0812UHE	7 V	13.2 VDC	40 °C 50000 Hrs	Plastic	Plastic	1.55 A	340.8 Pa	1.368 in H2O	38 mm	12 VDC	2 Wire Leads	18.6 W	CE CSA UL VDE	7500 RPM	Ball	61 dB(A)	80 mm	80 mm	Tubeaxial	3 m³/min	107.3 CFM	-10 °C	60 °C	0.441 lb	200.03 g
Delta Electronics PFB0812UHE-EP	10.2 VDC	13.8 VDC	40 °C 50000 Hrs	Plastic	Plastic	990 mA	242.6 Pa	0.974 in H2O	38 mm	12 VDC	4 Wire Leads	11.88 W	CE CSA UL VDE	6550 RPM	Ball	57.5 dB	80 mm	80 mm	Tubeaxial	2.57 m³/min	91.8 CFM	-25 °C	60 °C	0.441 lb	200.03 g	IP56 - Dust Protected Water Resistant	GR-487 (Salt Fog Protection) PWM Control Speed Sensor (Tach)

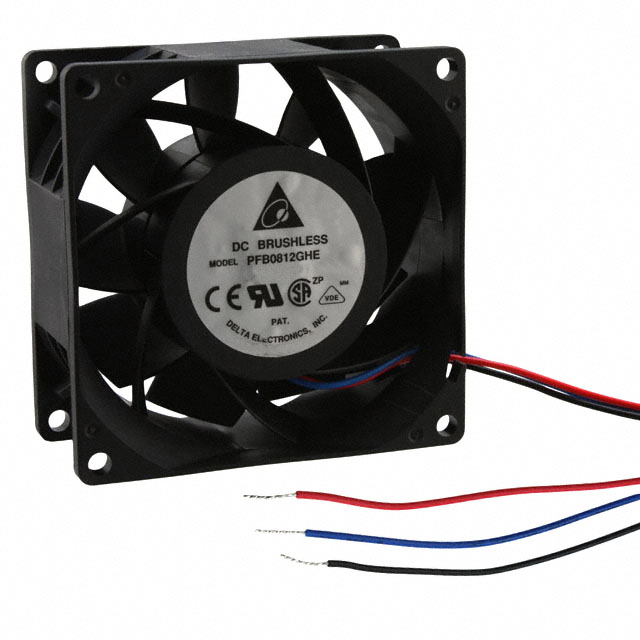

Delta Electronics PFB0812GHE-F00	7 V	13.2 VDC	40 °C 50000 Hrs	Plastic	Plastic	0.85 A	223.7 Pa	0.898 in H2O	38 mm	12 VDC	3 Wire Leads	10.2 W	CE CSA UL VDE	6100 RPM	Ball	55.5 dB	80 mm	80 mm	Tubeaxial	2.42 m³/min	86.4 CFM	-10 °C	60 °C	0.441 lb	200.03 g		Locked Rotor Protection Speed Sensor (Tach)

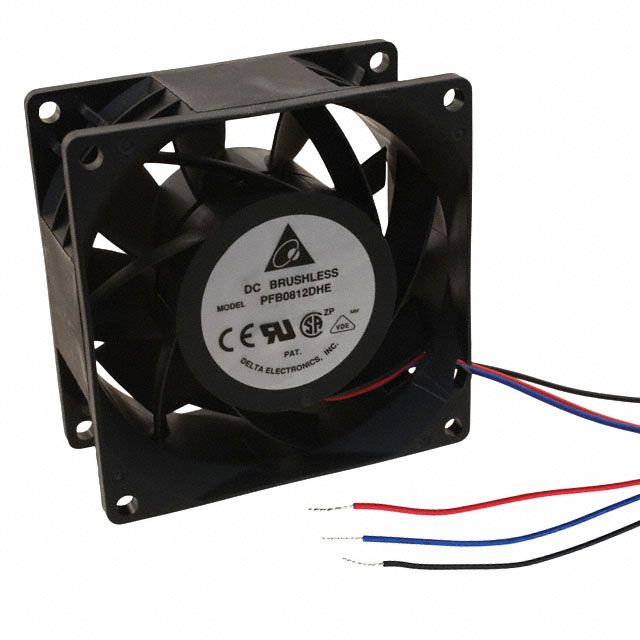

Delta Electronics PFB0812DHE-F00	7 V	13.2 VDC	40 °C 50000 Hrs	Plastic	Plastic	2.75 A	505.7 Pa	2.03 in H2O	38 mm	12 VDC	3 Wire Leads	33 W	CE CSA UL VDE	9000 RPM	Ball	65 dB	80 mm	80 mm	Tubeaxial	3.71 mł/min	132.6 CFM	-10 °C	60 °C	0.452 lb	205.02 g		Locked Rotor Protection Speed Sensor (Tach)
