245130 Series

Manufacturer: Molex

Catalog

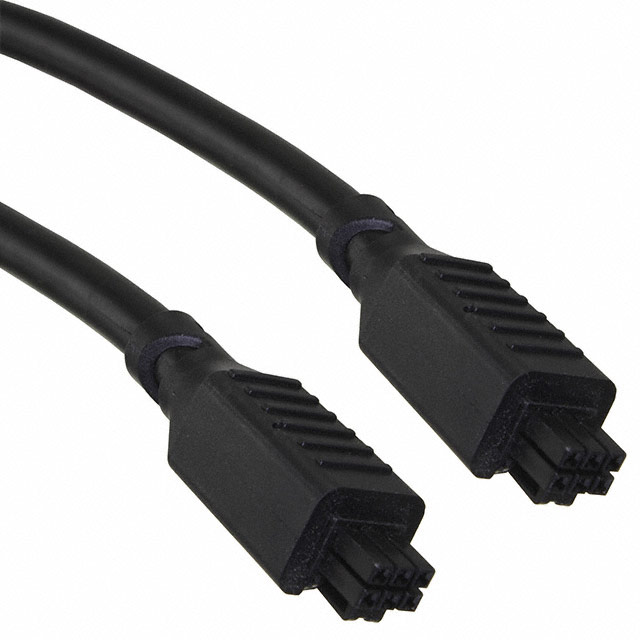

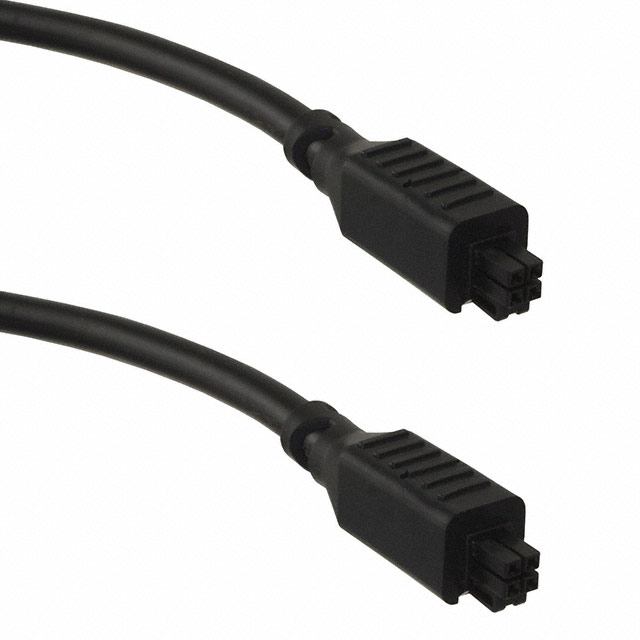

NANO-FIT-TO-NANO-FIT OFF-THE-SHELF (OTS) OVERMOLDED CABLE ASSEMBLY, DUAL ROW, MATTE TIN (SN) PLATING, 500.00MM LENGTH, 10 CIRCUITS, BLACK

Part	Connector Type	Features	Color	Contact Finish	Number of Positions	Pitch - Connector	Pitch - Connector	Length [x]	Length [x]	Shielding	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Cable Termination	Length	Length

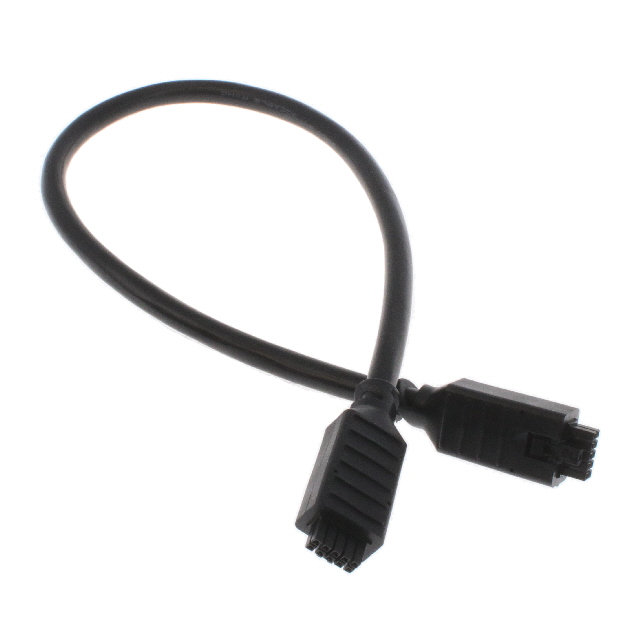

Molex 2451301005	Socket to Socket	Latch Lock	Black Individual (Round)	Tin	10	2.5 mm	0.098 in	1.64 ft	500 mm	Unshielded	2	2.54 µm	100 µin	Crimp
Molex 2451300405	Socket to Socket	Latch Lock	Black Individual (Round)	Tin	4	2.5 mm	0.098 in	1.64 ft	500 mm	Unshielded	2	2.54 µm	100 µin	Crimp
Molex 2451300620	Socket to Socket	Latch Lock	Black Individual (Round)	Tin	6	2.5 mm	0.098 in	6.56 ft	2 m	Unshielded	2	2.54 µm	100 µin	Crimp
Molex 2451300830	Socket to Socket	Latch Lock	Black Individual (Round)	Tin	8	2.5 mm	0.098 in	9.84 ft	3 m	Unshielded	2	2.54 µm	100 µin	Crimp
Molex 2451300605	Socket to Socket	Latch Lock	Black Black Individual (Round)	Tin	6	2.5 mm	0.098 in	1.64 ft	500 mm	Unshielded	2	2.54 µm	100 µin	Crimp
Molex 2451301020	Socket to Socket	Latch Lock	Black Individual (Round)	Tin	10	2.5 mm	0.098 in	6.56 ft	2 m	Unshielded	2	2.54 µm	100 µin	Crimp
Molex 2451300250	Socket to Socket	Latch Lock	Black Individual (Round)	Tin	2	2.5 mm	0.098 in			Unshielded	1	2.54 µm	100 µin	Crimp	16.4 '	5 m
Molex 2451301010	Socket to Socket	Latch Lock	Black Individual (Round)	Tin	10	2.5 mm	0.098 in	3.28 ft	1 m	Unshielded	2	2.54 µm	100 µin	Crimp
Molex 2451300450	Socket to Socket	Latch Lock	Black Individual (Round)	Tin	4	2.5 mm	0.098 in			Unshielded	2	2.54 µm	100 µin	Crimp	16.4 '	5 m
Molex 2451300805	Socket to Socket	Latch Lock	Black Individual (Round)	Tin	8	2.5 mm	0.098 in	1.64 ft	500 mm	Unshielded	2	2.54 µm	100 µin	Crimp
