HSMZ-A100 Series

Catalog

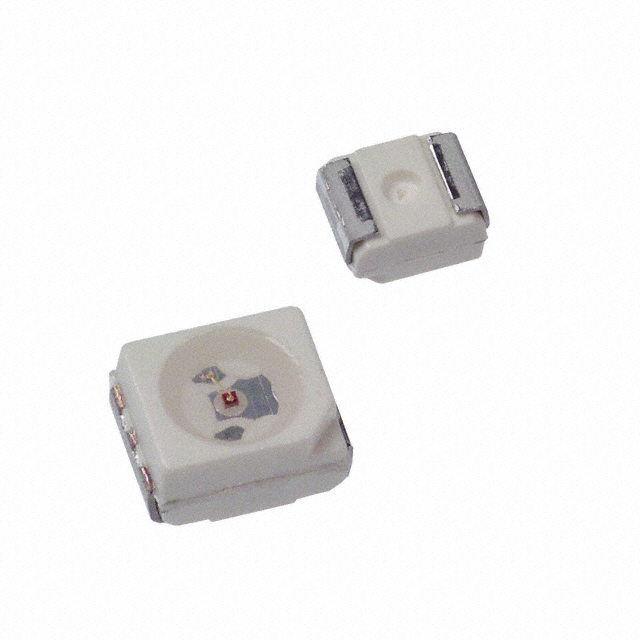

LED RED CLEAR 2PLCC SMD

Part	Voltage - Forward (Vf) (Typ)	Supplier Device Package	Mounting Type	Millicandela Rating	Lens Color	Lens Size [diameter]	Lens Transparency	Size / Dimension [y]	Size / Dimension [x]	Lens Style	Configuration	Viewing Angle	Current - Test	Package / Case	Color	Wavelength - Dominant	Wavelength - Peak	Height (Max) [z]
Broadcom Limited HSMZ-A100-T00J1	2.2 V	2-PLCC	Surface Mount	350 mcd	Colorless	2.2 mm	Clear	2.8 mm	3.2 mm	Round with Flat Top	Standard	120 °	20 mA	2-PLCC	Red	630 nm	639 nm	2.1 mm
Broadcom Limited HSMZ-A100-T70J1	2.2 V	2-PLCC	Surface Mount	350 mcd	Colorless	2.2 mm	Clear	2.8 mm	3.2 mm	Round with Flat Top	Standard	120 °	20 mA	2-PLCC	Red	630 nm	639 nm	2.1 mm
