0553-1 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN PIN RCPT .015-.020 HEX

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Tail Type	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Length - Overall [x]	Length - Overall [x]	Socket Depth	Socket Depth	Flange Diameter [diameter]	Flange Diameter [diameter]	Termination	Mounting Hole Diameter	Mounting Hole Diameter	Accepts Pin Diameter [Max]	Socket Depth [z]	Socket Depth [z]
Mill-Max Manufacturing Corp. 0553-1-15-01-11-02-10-0	-55 C	125 °C	Beryllium Copper	0.031 in	0.79 mm	0.02 in	0.38 mm	0.015 "	0.51 mm	No Tail	Tin-Lead	2.54 µm	100 µin	3.56 mm	0.14 in	0.124 in	3.15 mm	1.4 mm	0.055 in	Hex Press-Fit	0.041 in	1.04 mm

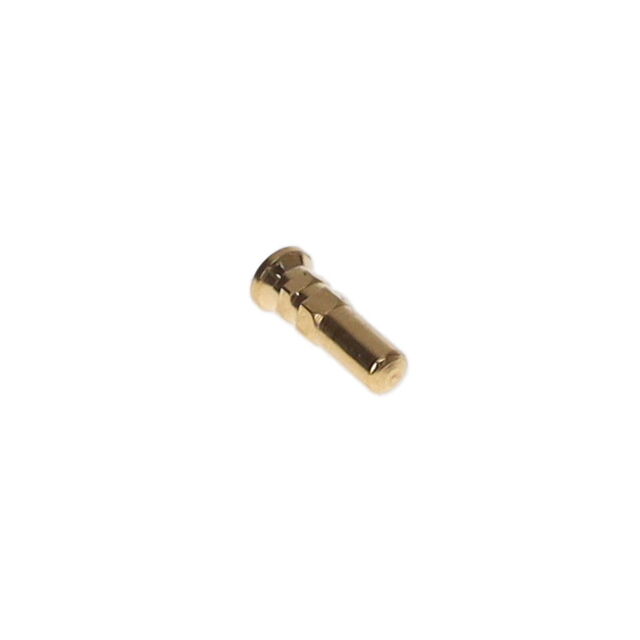

Mill-Max Manufacturing Corp. 0553-1-15-15-21-27-10-0	-55 C	125 °C	Beryllium Copper	0.031 in	0.79 mm	0.022 in	0.38 mm	0.015 "		No Tail	Gold	0.76 Ám	30 Áin	3.56 mm	0.14 in	0.124 in	3.15 mm	1.4 mm	0.055 in	Hex Press-Fit	0.041 in	1.04 mm	0.56 mm
Mill-Max Manufacturing Corp. 0553-1-15-01-11-14-10-0	-55 C	125 °C	Beryllium Copper	0.031 in	0.79 mm	0.02 in	0.38 mm	0.015 "	0.51 mm	No Tail	Gold	0.25 Ám	10 Áin	3.56 mm	0.14 in	0.124 in	3.15 mm	1.4 mm	0.055 in	Hex Press-Fit	0.041 in	1.04 mm
Mill-Max Manufacturing Corp. 0553-1-15-01-21-14-10-0	-55 C	125 °C	Beryllium Copper	0.031 in	0.79 mm	0.022 in	0.38 mm	0.015 "		No Tail	Gold	0.25 Ám	10 Áin	3.56 mm	0.14 in	0.124 in	3.15 mm	1.4 mm	0.055 in	Hex Press-Fit	0.041 in	1.04 mm	0.56 mm
Mill-Max Manufacturing Corp. 0553-1-15-15-21-14-10-0	-55 C	125 °C	Beryllium Copper	0.031 in	0.79 mm	0.02 in	0.38 mm	0.015 "	0.51 mm	No Tail	Gold	0.25 Ám	10 Áin	3.56 mm	0.14 in			1.4 mm	0.055 in	Hex Press-Fit	0.041 in	1.04 mm		0.154 in	3.91 mm

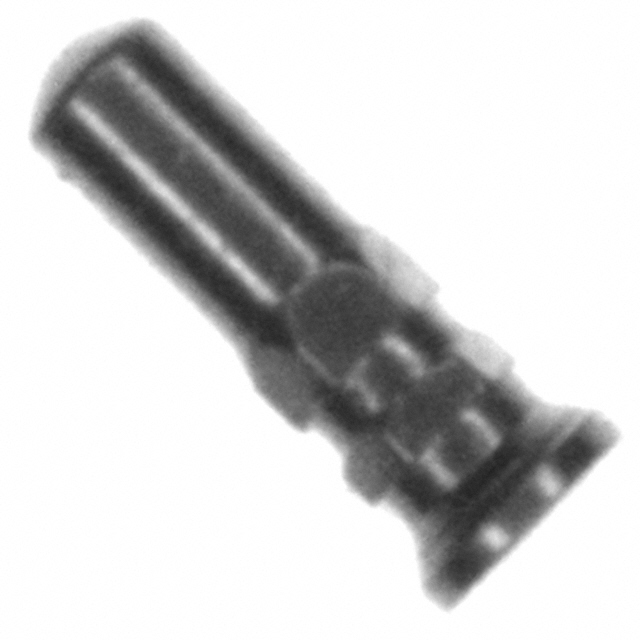

Mill-Max Manufacturing Corp. 0553-1-15-01-11-27-10-0	-55 C	125 °C	Beryllium Copper	0.031 in	0.79 mm	0.02 in	0.38 mm	0.015 "	0.51 mm	No Tail	Gold	0.76 Ám	30 Áin	3.56 mm	0.14 in	0.124 in	3.15 mm	1.4 mm	0.055 in	Hex Press-Fit	0.041 in	1.04 mm

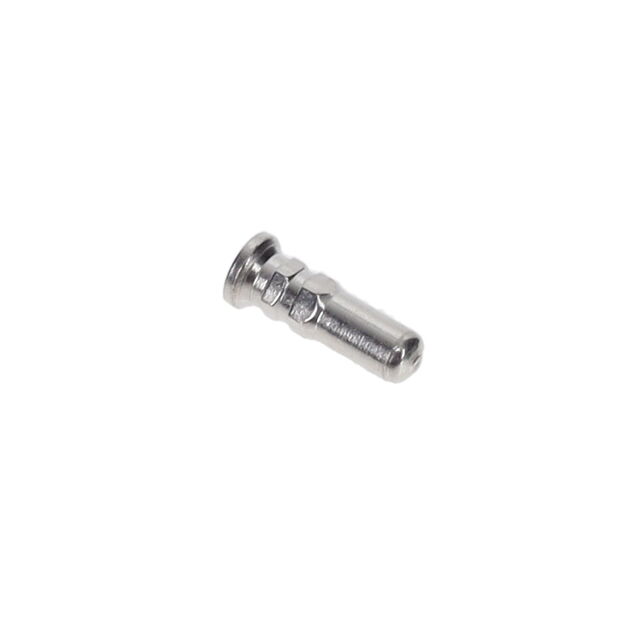

Mill-Max Manufacturing Corp. 0553-1-15-80-21-27-10-0	-55 C	125 °C	Beryllium Copper	0.031 in	0.79 mm	0.02 in	0.38 mm	0.015 "	0.51 mm	No Tail	Gold	0.76 Ám	30 Áin	3.56 mm	0.14 in			1.4 mm	0.055 in	Hex Press-Fit	0.041 in	1.04 mm		0.154 in	3.91 mm
Mill-Max Manufacturing Corp. 0553-1-15-80-11-14-10-0	-55 C	125 °C	Beryllium Copper	0.031 in	0.79 mm	0.02 in	0.38 mm	0.015 "	0.51 mm	No Tail	Gold	0.25 Ám	10 Áin	3.56 mm	0.14 in			1.4 mm	0.055 in	Hex Press-Fit	0.041 in	1.04 mm		0.154 in	3.91 mm
Mill-Max Manufacturing Corp. 0553-1-15-01-21-27-10-0	-55 C	125 °C	Beryllium Copper	0.031 in	0.79 mm	0.022 in	0.38 mm	0.015 "		No Tail	Gold	0.76 Ám	30 Áin	3.56 mm	0.14 in	0.124 in	3.15 mm	1.4 mm	0.055 in	Hex Press-Fit	0.041 in	1.04 mm	0.56 mm
Mill-Max Manufacturing Corp. 0553-1-15-80-21-84-10-0	-55 C	125 °C	Beryllium Copper	0.031 in	0.79 mm	0.02 in	0.38 mm	0.015 "	0.51 mm	No Tail	Tin	2.54 µm	100 µin	3.56 mm	0.14 in			1.4 mm	0.055 in	Hex Press-Fit	0.041 in	1.04 mm		0.154 in	3.91 mm
