GPRM-B4 Series
Manufacturer: c3controls
Beta
⌘K

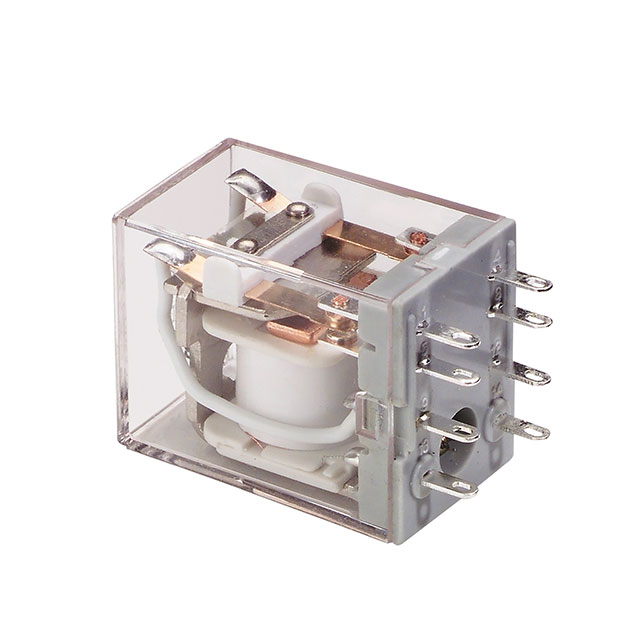

RELAY GEN PURPOSE 4PDT 5A 24V
| Part | Coil Resistance | Contact Material | Must Release Voltage | Mounting Type | Termination Style | Must Operate Voltage | Switching Voltage [Max] | Coil Current | Coil Voltage | Operate Time | Relay Type | Release Time | Features | Coil Type | Contact Form | Operating Temperature [Max] | Operating Temperature [Min] | Contact Rating (Current) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 c3controls | 650 Ohms | Silver Nickel (AgNi) | 2.4 VDC | Socketable | Plug In | 19.2 VDC | 28 VDC 240 VAC | 36.9 mA | 24 VDC | 25 ms | General Purpose | 25 ms | Lighted Indicator | Non Latching | 4PDT (4 Form C) | 55 °C | -25 °C | 5 A |
c3controls | 4.55 kOhms | Silver Nickel (AgNi) | 36 VAC | Socketable | Plug In | 102 VAC | 28 VDC 240 VAC | 10 mA | 120 VAC | 25 ms | General Purpose | 25 ms | Lighted Indicator | Non Latching | 4PDT (4 Form C) | 55 °C | -25 °C | 5 A |
