19396160 Series
Manufacturer: HARTING
Beta
⌘K

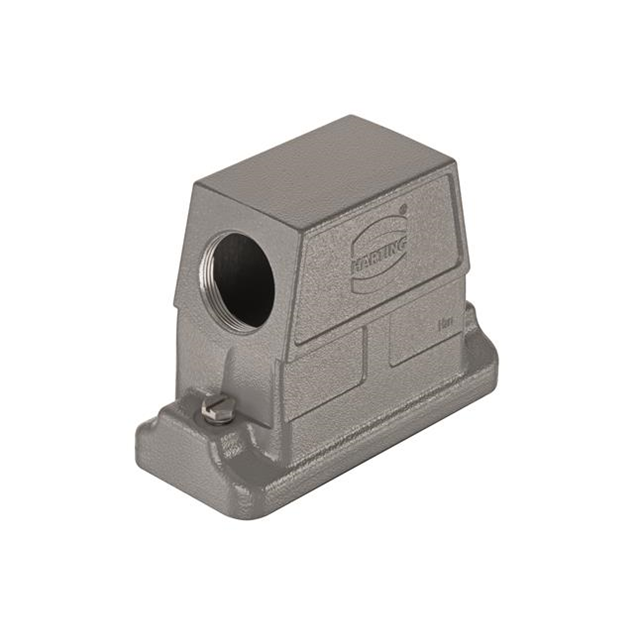

HAN 16 HP DIRECT B HOOD, SIDE ENTRY, M25
| Part | Housing Color | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Housing Finish | Operating Temperature [Max] | Operating Temperature [Min] | Connector Type | Lock Location | Style | Housing Material | Size | Thread Size | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 HARTING | Gray | 5 " | 2.244 " | 3.74 " | 95 mm | 57 mm | 127 mm | Powder Coated | 125 °C | -40 C | Hood | Screw Locks on Hood | Side Entry | Aluminum Die Cast | 16 B | M25 | IP66 IP68 IP69K |

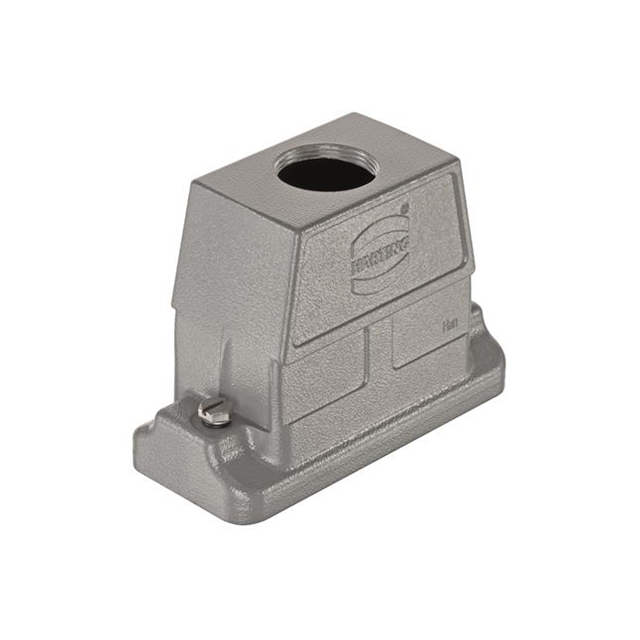

 HARTING | Gray | 5 " | 2.244 " | 3.701 " | 94 mm | 57 mm | 127 mm | Powder Coated | 125 °C | -40 C | Hood | Screw Locks on Hood | Top Entry | Aluminum Die Cast | 16 B | M32 | IP66 IP68 IP69K |
HARTING | Gray | 5 " | 2.244 " | 3.74 " | 95 mm | 57 mm | 127 mm | Powder Coated | 125 °C | -40 C | Hood | Screw Locks on Hood | Side Entry | Aluminum Die Cast | 16 B | M32 | IP66 IP68 IP69K |
HARTING | Gray | 5 " | 2.236 " | 3.74 " | 95 mm | 56.8 mm | 127 mm | Powder Coated | 125 °C | -40 C | Hood | Screw Locks on Hood | Side Entry | Aluminum Die Cast | 16 B | IP66 IP68 IP69K |
