GTW012 Series
Manufacturer: Delta Electronics
Beta
⌘K

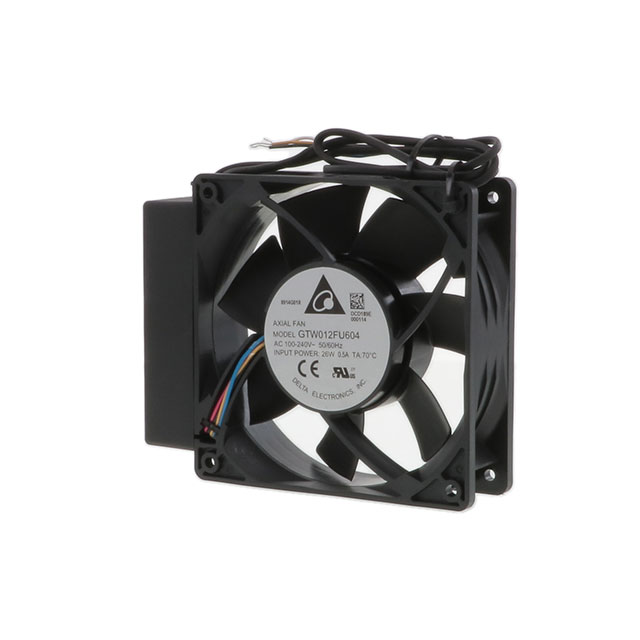

120X145X38MM 100 / 240V AC FAN W
| Part | Lifetime @ Temp. | Voltage Range [Min] | Voltage Range [Max] | Material - Blade | Material - Frame | Static Pressure | Static Pressure | Air Flow | Air Flow | Bearing Type | Fan Type | Ingress Protection | Width [y] | Size / Dimension [z] | Size / Dimension [x] | Power (Watts) | Noise | Termination | Operating Temperature [Min] | Operating Temperature [Max] | RPM | Voltage - Rated | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Delta Electronics | 70000 Hrs | 100 VAC | 240 VAC | Plastic | Plastic | 209.2 Pa | 0.84 in H2O | 184 CFM | 5.15 m³/min | Ball | Tubeaxial | IP54 - Dust Protected Water Resistant | 38 mm | 120 mm | 120 mm | 18 W | 55.5 dB | 5 Wire Leads | -20 ░C | 70 °C | 4100 RPM | 230 VAC | Electronic Commutation (EC) Locked Rotor Protection PWM Control Speed Sensor (Tach) |
