NCL30060 Series

High Power Factor Offline Single Stage LED Driver, with High Voltage Startup

Catalog

High Power Factor Offline Single Stage LED Driver, with High Voltage Startup

Part	Mounting Type	Supplier Device Package	Voltage - Supply (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Topology	Type	Number of Outputs	Voltage - Supply (Min) [Min]	Package / Case [custom]	Package / Case	Package / Case [custom]	Package / Case	Utilized IC / Part	Current - Output / Channel	Voltage - Output [Max]	Voltage - Output [Min]	Supplied Contents	Outputs and Type	Voltage - Input [Max]	Voltage - Input [Min]	Features
ON Semiconductor NCL30060B2DR2G	Surface Mount	7-SOIC	28 V	150 °C	-40 °C	Lighting	Flyback Step-Down (Buck)	AC DC Offline Switcher	1	8.8 V	7	8-SOIC	3.9 mm	0.154 in
ON Semiconductor NCL30060B4DR2G

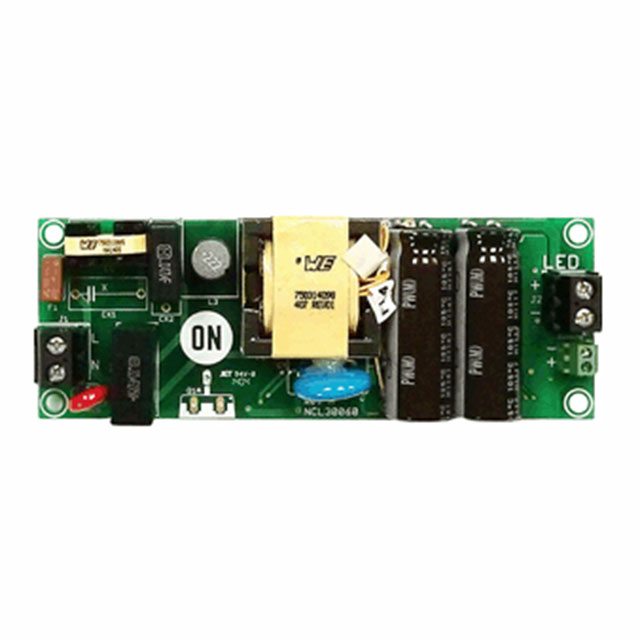

ON Semiconductor NCL30060LED1GEVB															NCL30060	700 mA	41 V	10 V	Board(s)	1 Isolated Output	305 VAC	90 VAC	Dimmable

Catalog

High Power Factor Offline Single Stage LED Driver, with High Voltage Startup

Key Features

• High Voltage Startup

• Constant ON Time Power Factor Correction

• Frequency Dithering

• Cycle-by-cycle current limit

• Output Winding Short Circuit Protection

• Direct Opto-coupler Feedback Connection

• Integrated 12 V Gate Clamp

• 250 mA Source/400 mA Sink Capablity

• Input Brownout Protection

• Maximum On Time Protection

• Resistor Based On Time Programming

• SOIC-7 (1 lead removed)

Description

The NCL30060 is a switch mode power supply controller intended for low to medium power single stage power factor (PF) corrected LED Drivers. It employs a constant on−time control method to ensure near unity power factor across a wide range of input voltages and output power. It can be used for isolated flyback as well as buck topologies. The device offers a suite of robust protection features to ensure safe operation under a range of fault conditions.
