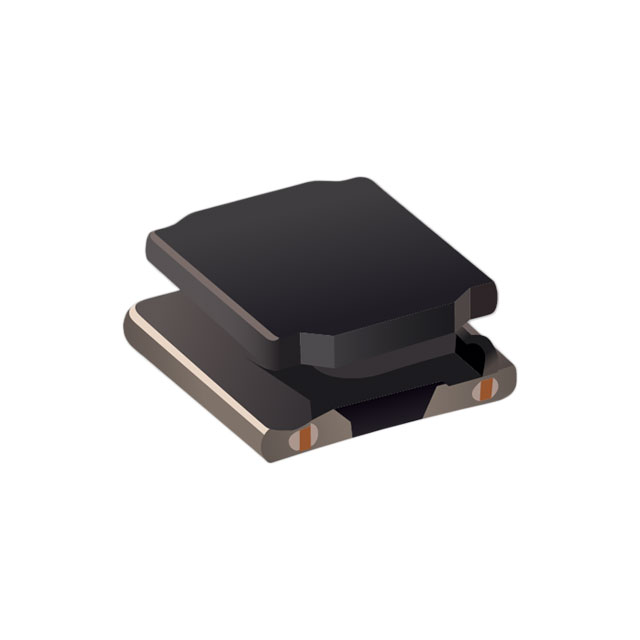

SRN4018TA Series

Catalog

INDUCTOR, 1.5UH, 2.7A, 20%, AEC-Q200

Part	Current - Saturation (Isat)	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Type	Frequency - Self Resonant	Shielding	Mounting Type	DC Resistance (DCR)	Q @ Freq	Material - Core	Inductance Frequency - Test	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Inductance	Ratings	Tolerance	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Package / Case
Bourns Inc. SRN4018TA-1R5M	3.3 A	1.8 mm	0.071 in	Drum Core Wirewound	115 MHz	Shielded	Surface Mount	32 mOhm	10 100 kHz	Ferrite	100 kHz	125 °C	-40 C	2.7 A	1.5 µH	AEC-Q200	20 %	0.157 "	4 mm	0.157 in	4 mm	Nonstandard
Bourns Inc. SRN4018TA-100M	1.3 A	1.8 mm	0.071 in	Drum Core Wirewound	40 MHz	Shielded	Surface Mount	150 mOhm	10 100 kHz	Ferrite	100 kHz	125 °C	-40 C	1.2 A	10 µH	AEC-Q200	20 %	0.157 "	4 mm	0.157 in	4 mm	Nonstandard
Bourns Inc. SRN4018TA-6R8M	1.7 A	1.8 mm	0.071 in	Drum Core Wirewound	40 MHz	Shielded	Surface Mount	98 mOhm	10 100 kHz	Ferrite	100 kHz	125 °C	-55 C	1.7 A	6.8 µH	AEC-Q200	20 %	0.157 "	4 mm	0.157 in	4 mm	Nonstandard
Bourns Inc. SRN4018TA-2R2M	3 A	1.8 mm	0.071 in	Drum Core Wirewound	90 MHz	Shielded	Surface Mount	42 mOhms	10 100 kHz	Ferrite	100 kHz	125 °C	-40 C	2.2 A	2.2 µH	AEC-Q200	20 %	0.157 "	4 mm	0.157 in	4 mm	Nonstandard
Bourns Inc. SRN4018TA-330M	700 mA	1.8 mm	0.071 in	Drum Core Wirewound	20 MHz	Shielded	Surface Mount	405 mOhm	10 100 kHz	Ferrite	100 kHz	125 °C	-40 C	650 mA	33 µH	AEC-Q200	20 %	0.157 "	4 mm	0.157 in	4 mm	Nonstandard
