SFW12S Series

Catalog

CONN CIC VERT 12POS 1MM SMD

Part	Housing Color	Mating Cycles	Actuator Color	Number of Positions	Actuator Material	Cable End Type	Voltage Rating	Material Flammability Rating	Height Above Board [z]	Height Above Board [z]	FFC, FCB Thickness	Flat Flex Type	Connector/Contact Type	Contact Material	Mounting Type	Pitch	Pitch	Housing Material	Locking Feature	Contact Finish	Termination	Operating Temperature [Min]	Operating Temperature [Max]
Amphenol ICC (FCI) SFW12S-6STE1LF	Brown	10	Black	12	Thermoplastic Glass Filled	Tapered	100 V	UL94 V-0	0.209 in	5.3 mm	0.3 mm	CIC	Contacts Vertical - 1 Sided	Phosphor Bronze	Surface Mount	1 mm	0.039 in	Glass Filled Thermoplastic	Slide Lock	Tin	Solder	-55 C	85 °C

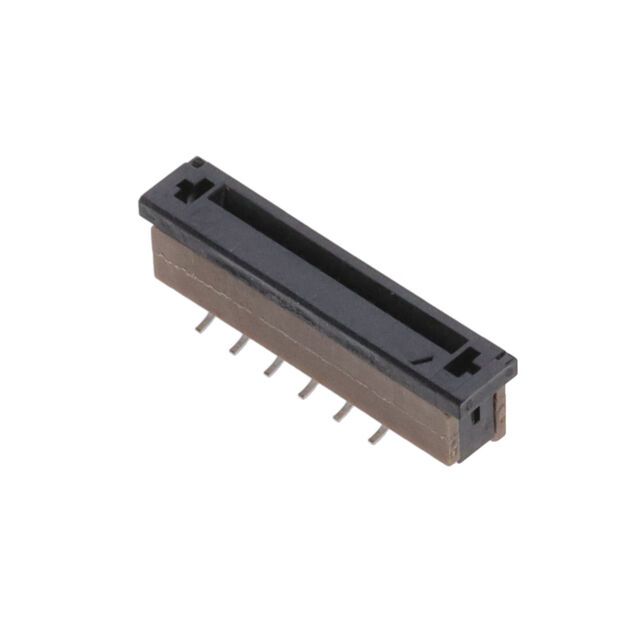

Amphenol ICC (FCI) SFW12S-2STE1LF	Brown	20		12	Thermoplastic Glass Filled		100 V	UL94 V-0	0.209 in	5.3 mm	0.33 mm	FFC FPC	Contacts Vertical - 1 Sided	Phosphor Bronze	Surface Mount	1 mm	0.039 in	Glass Filled Thermoplastic	Slide Lock	Tin	Solder	-55 C	105 ░C
