PEG124M Series

Manufacturer: KEMET

Catalog

CAP ALUM 10UF 20% 63V AXIAL

Part	Polarization	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Lifetime @ Temp.	Package / Case	Size / Dimension [diameter]	Size / Dimension [diameter]	Applications	Ripple Current @ High Frequency	Operating Temperature [Max]	Operating Temperature [Min]	Ripple Current @ Low Frequency	Mounting Type	Tolerance	Voltage - Rated	ESR (Equivalent Series Resistance)	Capacitance	Size / Dimension	Tolerance [Min]	Tolerance [Max]	Size / Dimension [custom]	Size / Dimension [custom]	Size / Dimension [x]	Size / Dimension [x]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
KEMET PEG124MA2100QL1	Polar	0.787 in	20 mm	2000 Hrs	Axial Can	0.394 in	10 mm	General Purpose	79.04 mA	125 °C	-40 C	76 mA	Through Hole	20 %	63 V	5.9 Ohm	10 µF
KEMET PEG124MC310AQT1	Polar	0.787 in	20 mm	2000 Hrs	Axial Can	0.512 in		General Purpose		125 °C	-40 C	328 mA	Through Hole		63 V	730 mOhm	100 µF	13 mm	-10 %	30 %
KEMET PEG124MA2220QT1	Polar			2000 Hrs	Axial Can	0.394 in	10 mm	General Purpose	1.1 A	125 °C	-40 C	134 mA	Through Hole		63 V	3.4 Ohm	22 µF		-10 %	30 %	20 mm	0.787 "
KEMET PEG124MB2470QT1	Polar			2000 Hrs	Axial Can	0.394 in	10 mm	General Purpose	1.6 A	125 °C	-40 C	190 mA	Through Hole		63 V	1.6 Ohm	47 µF		-10 %	30 %			29 mm	1.142 in
KEMET PEG124MA2100QT1	Polar	0.787 in	20 mm	2000 Hrs	Axial Can	0.394 in	10 mm	General Purpose	79.04 mA	125 °C	-40 C	76 mA	Through Hole	20 %	63 V	5.9 Ohm	10 µF
KEMET PEG124MF322VQL1	Polar			2000 Hrs	Axial Can	0.63 in	16 mm	General Purpose	6.1 A	125 °C	-40 C		Through Hole		63 V	290 mOhm	220 µF		-10 %	30 %					1.142 in	29 mm
KEMET PEG124MB2330QL1	Polar			2000 Hrs	Axial Can	0.394 in	10 mm	General Purpose	1.4 A	125 °C	-40 C	158 mA	Through Hole		63 V	2.2 Ohm	33 ÁF		-10 %	30 %			29 mm	1.142 in

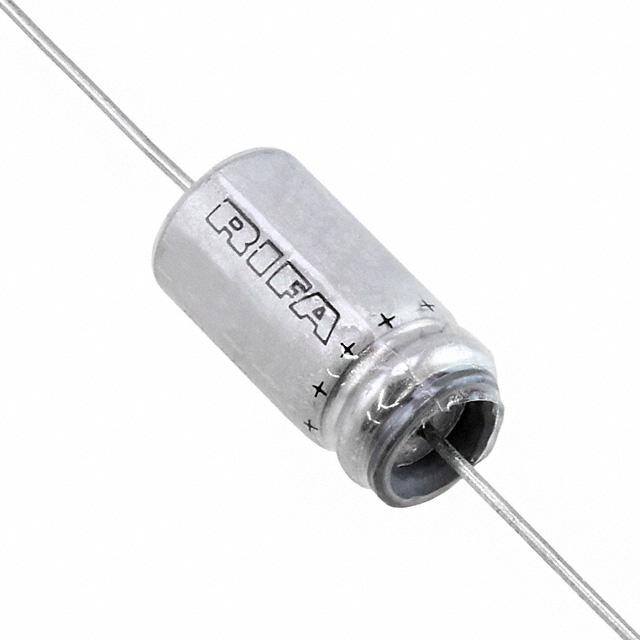

KEMET PEG124MA2220QL1	Polar			2000 Hrs	Axial Can	0.394 in	10 mm	General Purpose		125 °C	-40 C	134 mA	Through Hole		63 V	3.4 Ohm	22 µF		-10 %	30 %	20 mm	0.787 "
KEMET PEG124MA2150QT1	Polar			2000 Hrs	Axial Can	0.394 in	10 mm	General Purpose	1 A	125 °C	-40 C	113 mA	Through Hole		63 V	4.3 Ohm	15 µF		-10 %	30 %	20 mm	0.787 "
KEMET PEG124MB2470QL1	Polar			2000 Hrs	Axial Can	0.394 in	10 mm	General Purpose	197.6 mA	125 °C	-40 C	190 mA	Through Hole		63 V	1.6 Ohm	47 µF		-10 %	30 %					1.142 in	29 mm
