CWR-210 Series

Catalog

CONN RCPT 16POS IDC GOLD

Part	Row Spacing	Row Spacing	Number of Positions	Contact Finish	Features	Contact Type	Number of Rows [custom]	Connector Type	Wire Type	Cable Termination	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Pitch	Pitch	Color	Number of Positions [custom]

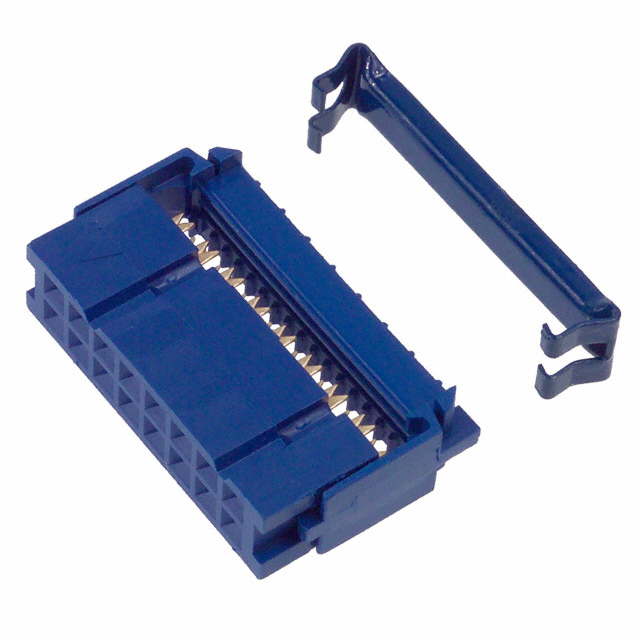

CW Industries CWR-210-16-0000	2.54 mm	0.1 "	16	Gold	Feed Through Strain Relief	Female Socket	2	Receptacle	Ribbon Cable	IDC	Free Hanging (In-Line)	0.25 Ám	10 Áin	0.1 "	2.54 mm	Blue
CW Industries CWR-210-34-0203	2.54 mm	0.1 "		Tin	Feed Through Strain Relief	Female Socket	2	Receptacle	Ribbon Cable	IDC	Free Hanging (In-Line)			0.1 "	2.54 mm	Blue	34

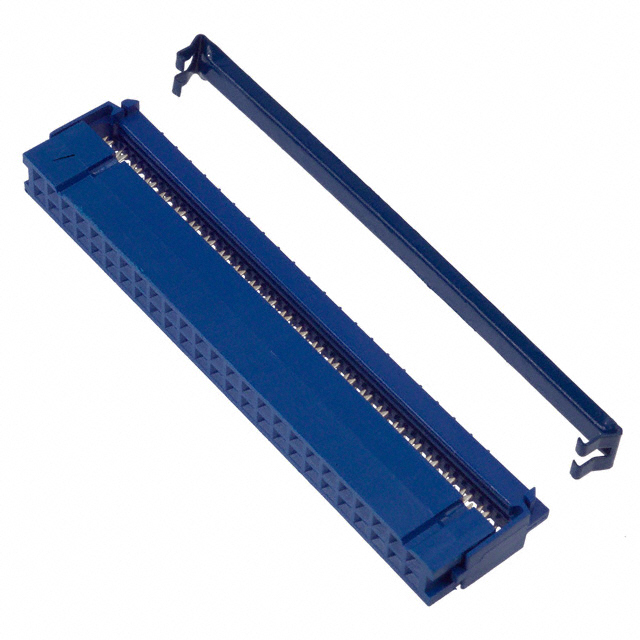

CW Industries CWR-210-50-0203	2.54 mm	0.1 "	50	Tin	Feed Through Strain Relief	Female Socket	2	Receptacle	Ribbon Cable	IDC	Free Hanging (In-Line)			0.1 "	2.54 mm	Blue
CW Industries CWR-210-10-0203	2.54 mm	0.1 "	10	Tin	Feed Through Strain Relief	Female Socket	2	Receptacle	Ribbon Cable	IDC	Free Hanging (In-Line)			0.1 "	2.54 mm	Blue

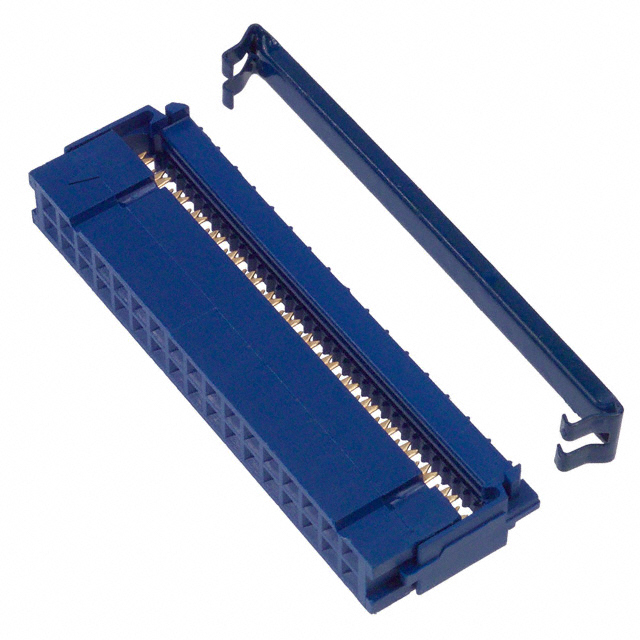

CW Industries CWR-210-34-0000	2.54 mm	0.1 "		Gold	Feed Through Strain Relief	Female Socket	2	Receptacle	Ribbon Cable	IDC	Free Hanging (In-Line)	0.25 Ám	10 Áin	0.1 "	2.54 mm	Blue	34
CW Industries CWR-210-14-0021	2.54 mm	0.1 "	14	Gold	Feed Through Strain Relief	Female Socket	2	Receptacle	Ribbon Cable	IDC	Free Hanging (In-Line)	0.76 Ám	30 Áin	0.1 "	2.54 mm	Blue
CW Industries CWR-210-10-0000	2.54 mm	0.1 "	10	Gold	Feed Through Strain Relief	Female Socket	2	Receptacle	Ribbon Cable	IDC	Free Hanging (In-Line)	0.25 Ám	10 Áin	0.1 "	2.54 mm	Blue
CW Industries CWR-210-60-0003	2.54 mm	0.1 "	60	Tin-Lead	Feed Through Strain Relief	Female Socket	2	Receptacle	Ribbon Cable	IDC	Free Hanging (In-Line)	2.54 µm	100 µin	0.1 "	2.54 mm	Blue
CW Industries CWR-210-16-0203	2.54 mm	0.1 "	16	Tin	Feed Through Strain Relief	Female Socket	2	Receptacle	Ribbon Cable	IDC	Free Hanging (In-Line)			0.1 "	2.54 mm	Blue

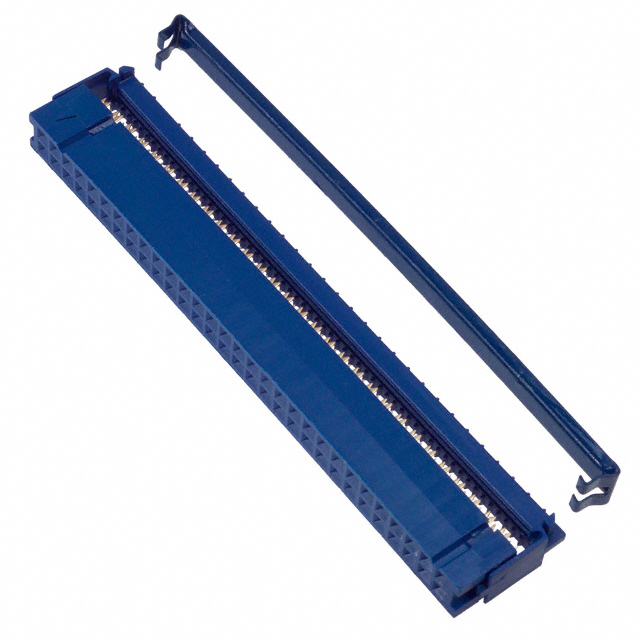

CW Industries CWR-210-60-0000	2.54 mm	0.1 "	60	Gold	Feed Through Strain Relief	Female Socket	2	Receptacle	Ribbon Cable	IDC	Free Hanging (In-Line)	0.25 Ám	10 Áin	0.1 "	2.54 mm	Blue
